Tightening Specifications

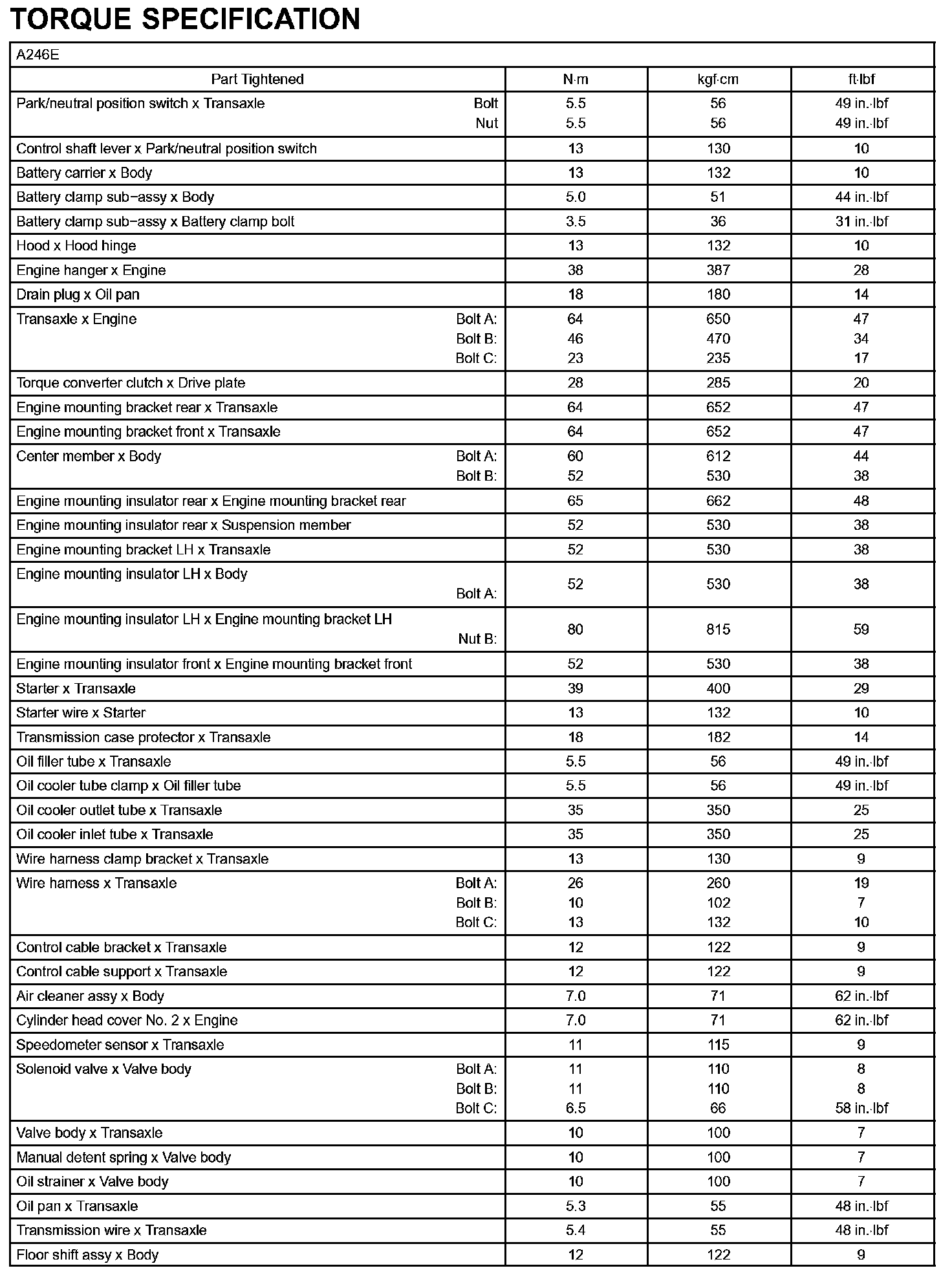

Automatic Transmission / Transaxle-Torque Specification (Part 1):



Automatic Transmission / Transaxle-Torque Specification (Part 2):
