Cruise Control System (W/O ETCS-i)

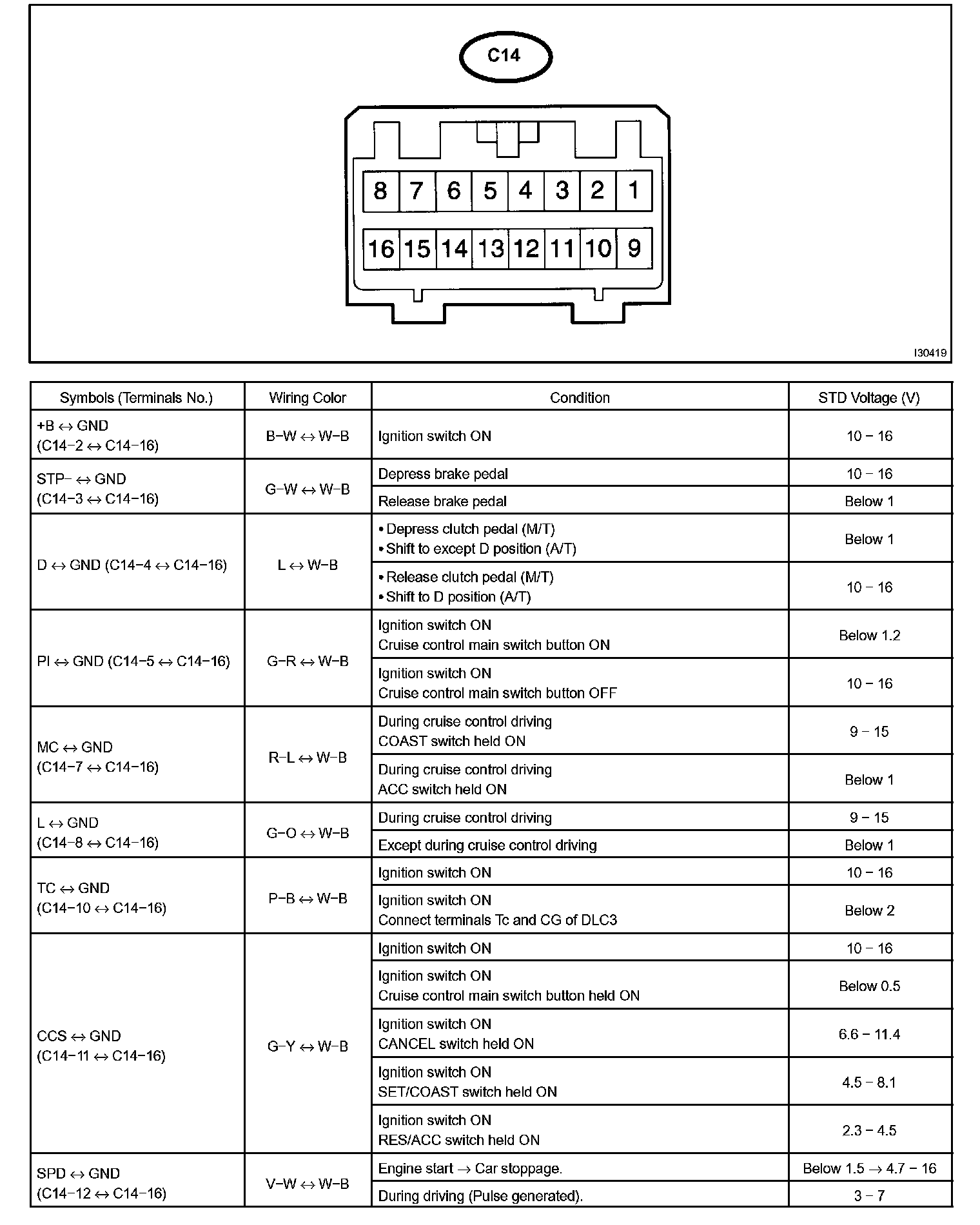

Terminals Of Control Module/Pinouts (Part 1):



Terminals Of Control Module/Pinouts (Part 2):
