Variable Induction Control Valve

Intake Manifold Runner Valve Assy (PZEV):

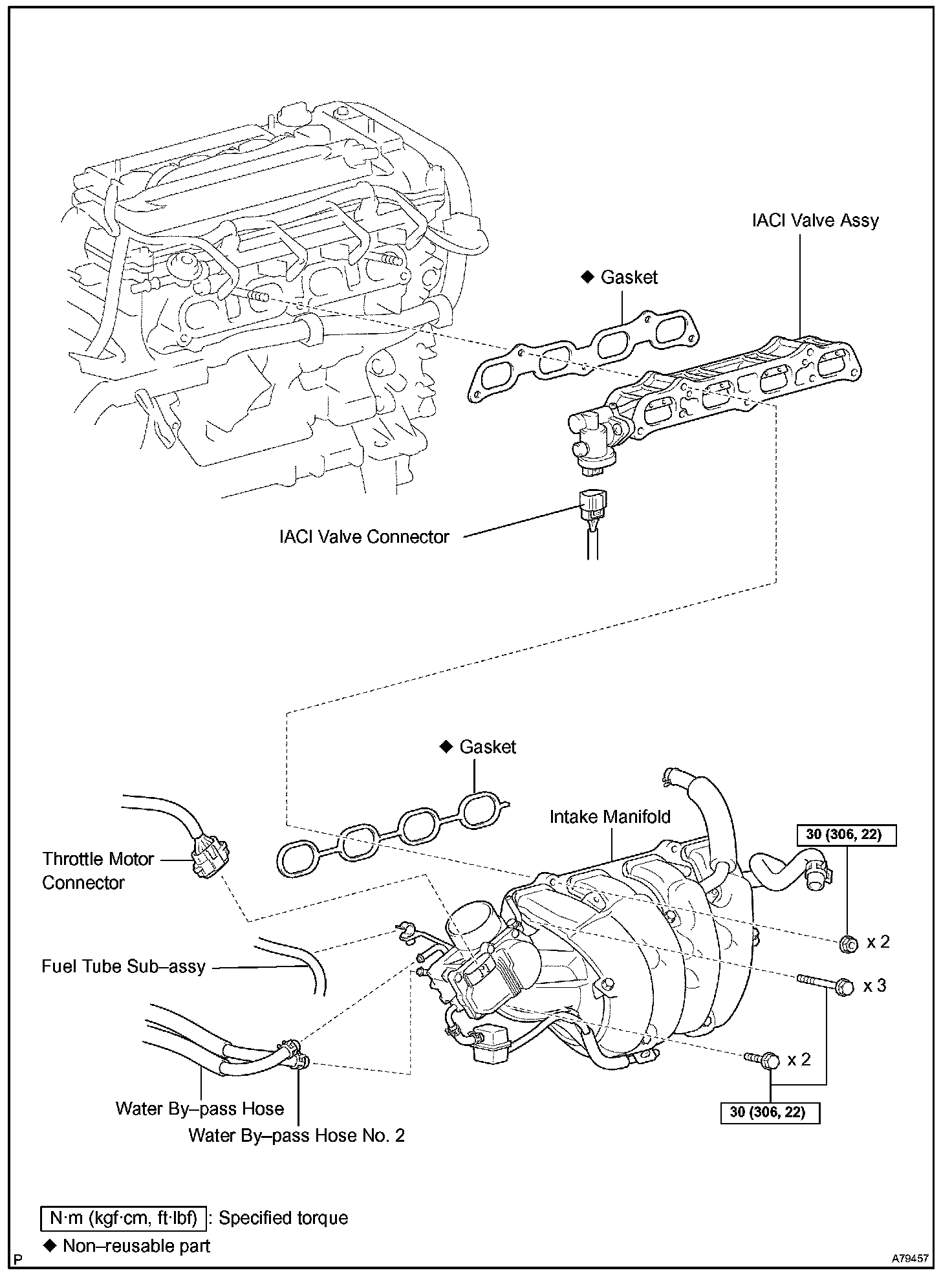

Intake Manifold Runner Valve Assy (PZEV):
