Mechanical Specifications
>>
Transfer Case
Transfer Case

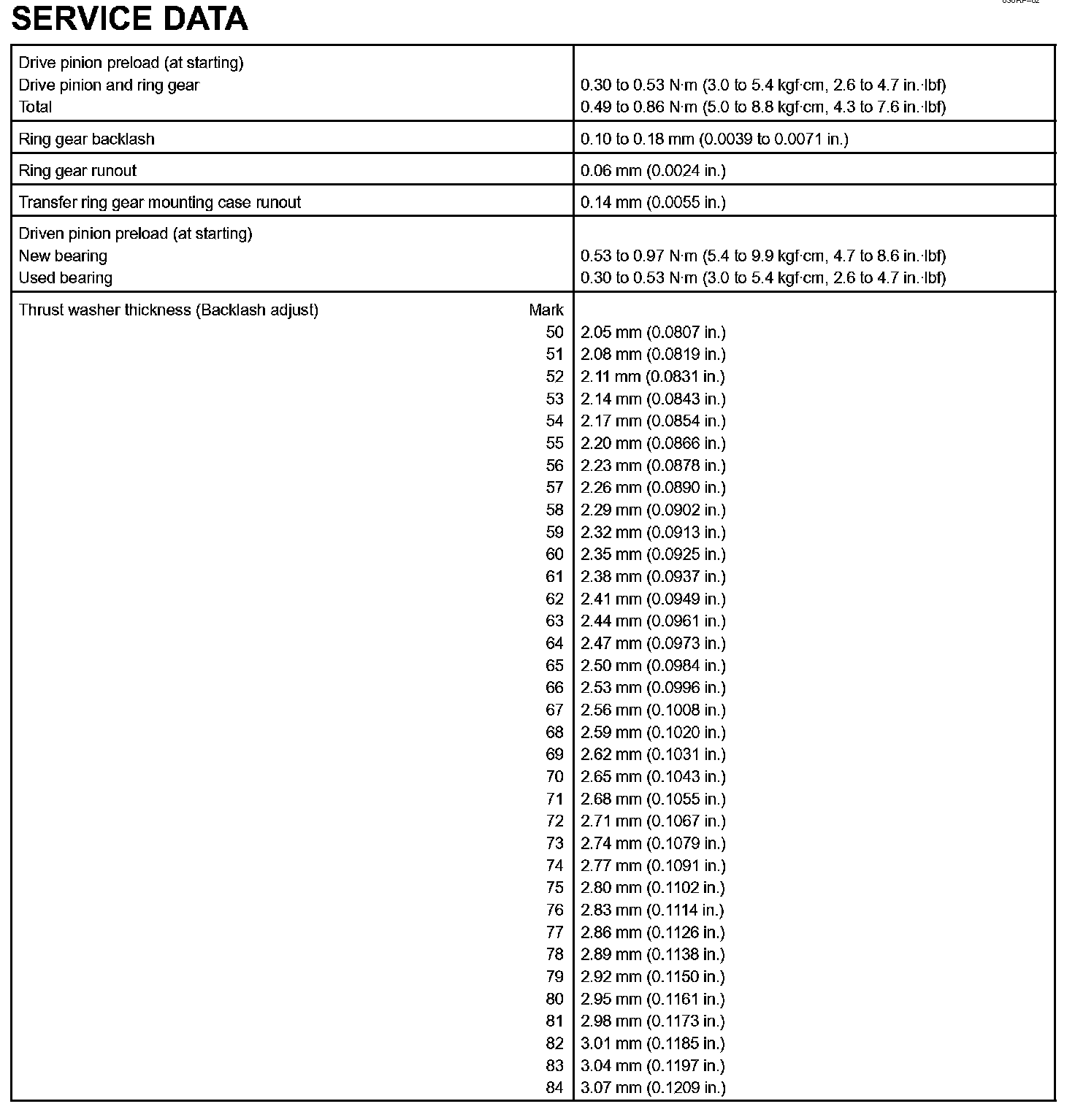

Transfer - Service Data Part 1:

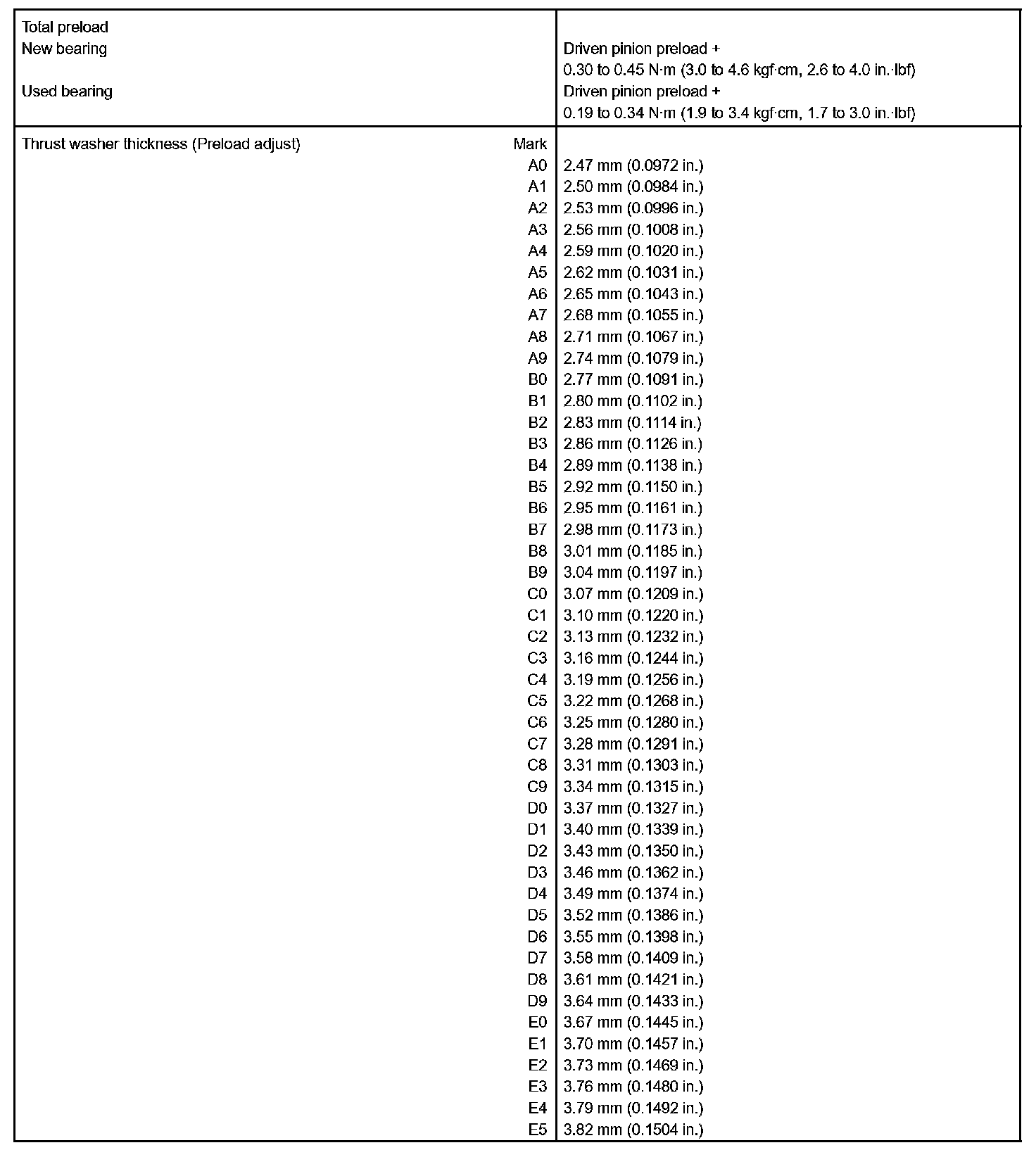

Transfer - Service Data Part 2:
Transfer - Service Data Part 3:

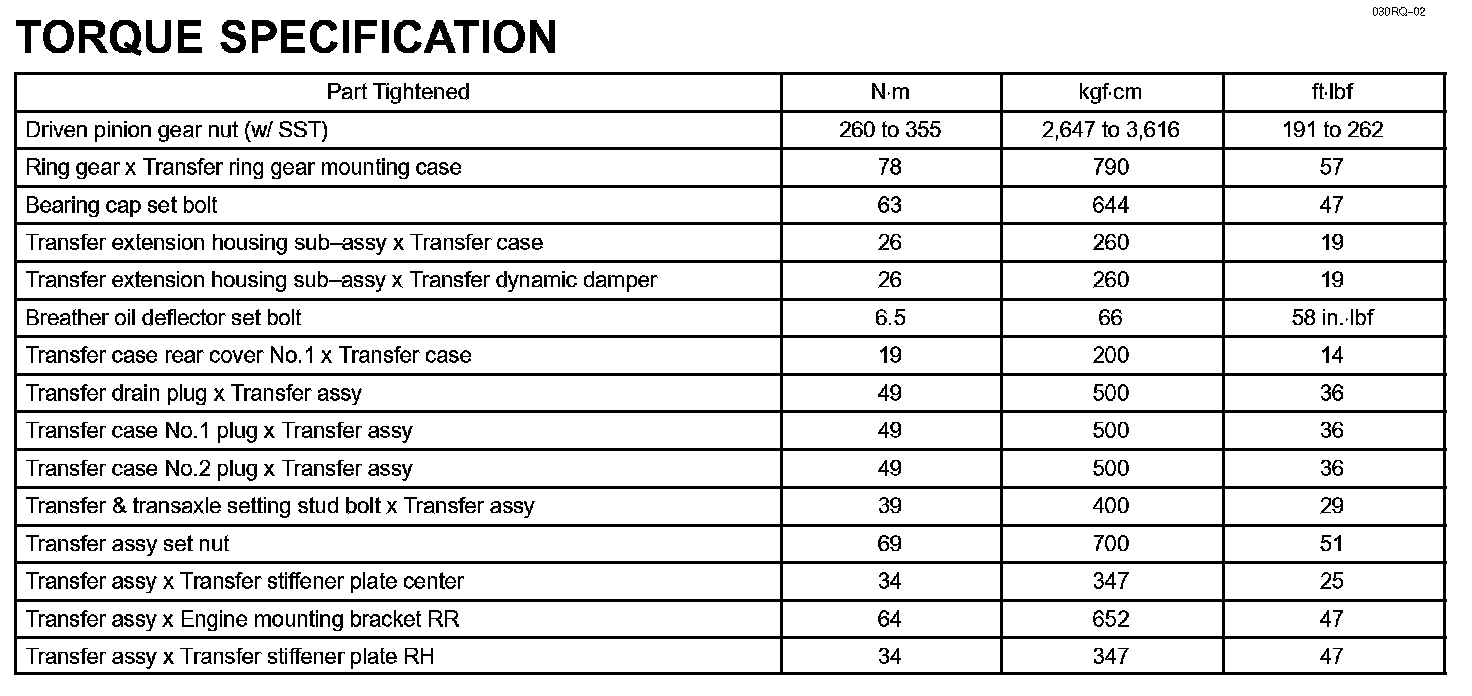

Transfer - Torque Specification:
