Matrix 2WD L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Headliner
Headliner

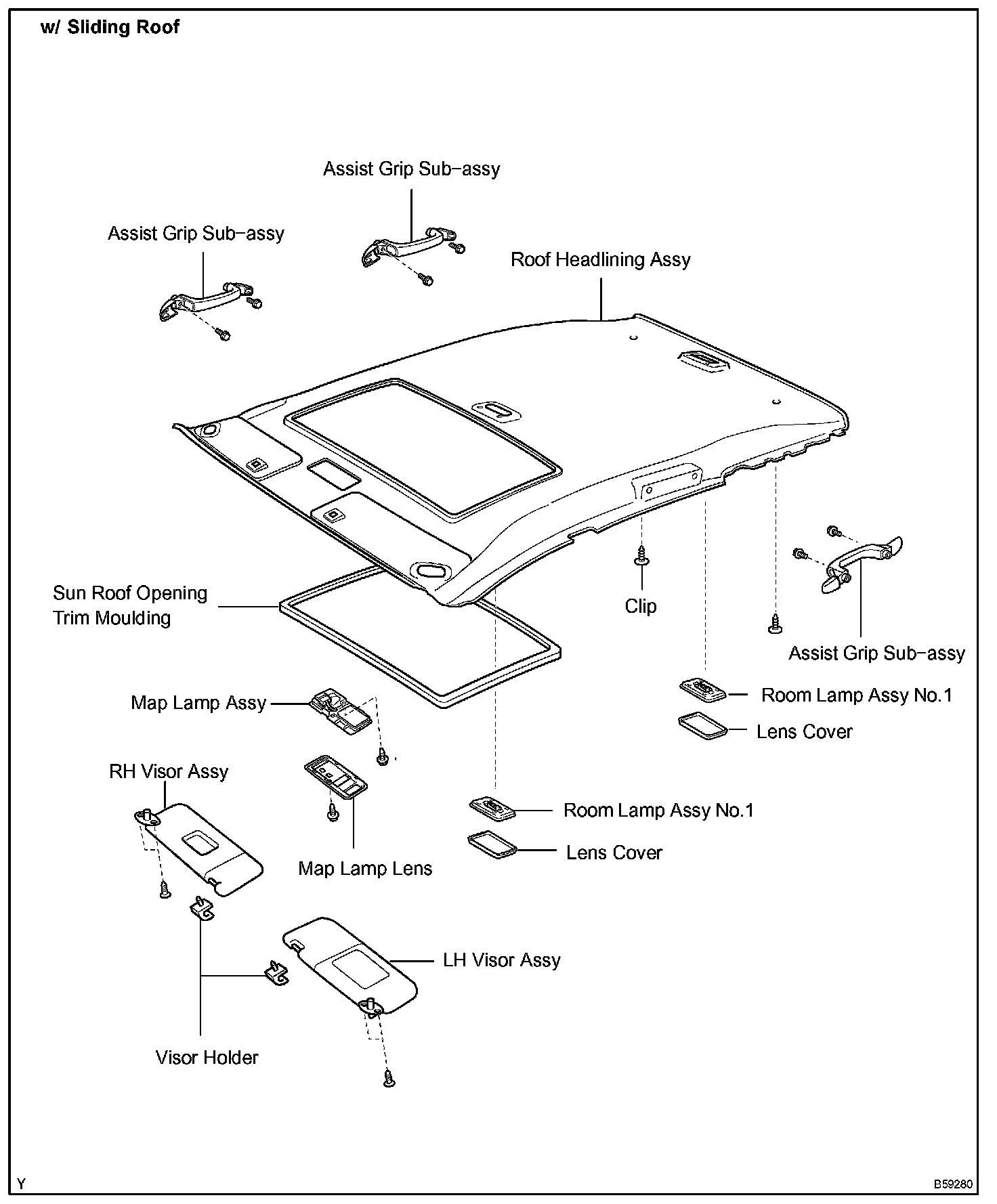

Roof Headlining Assy:

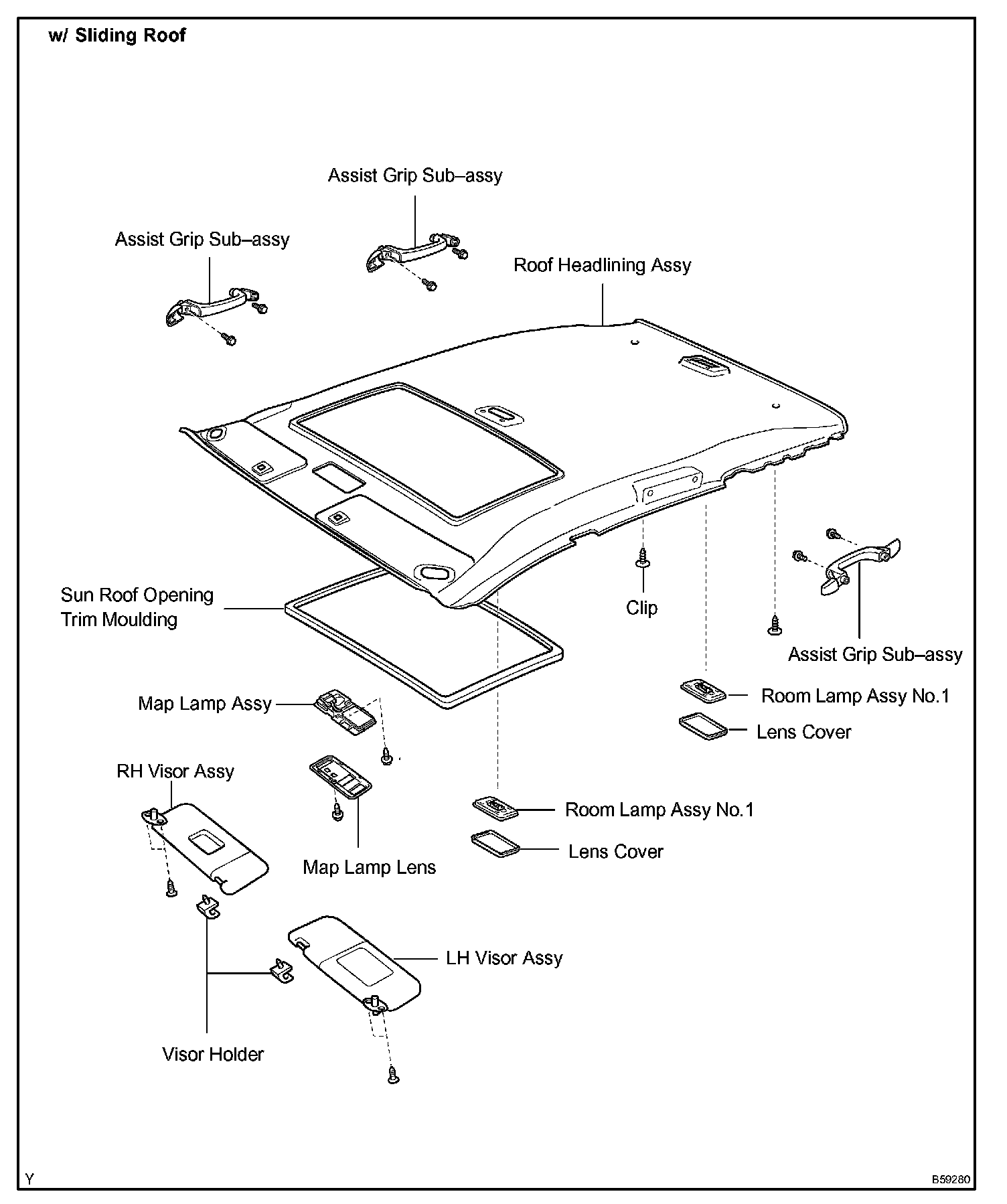

Roof Headlining Assy:

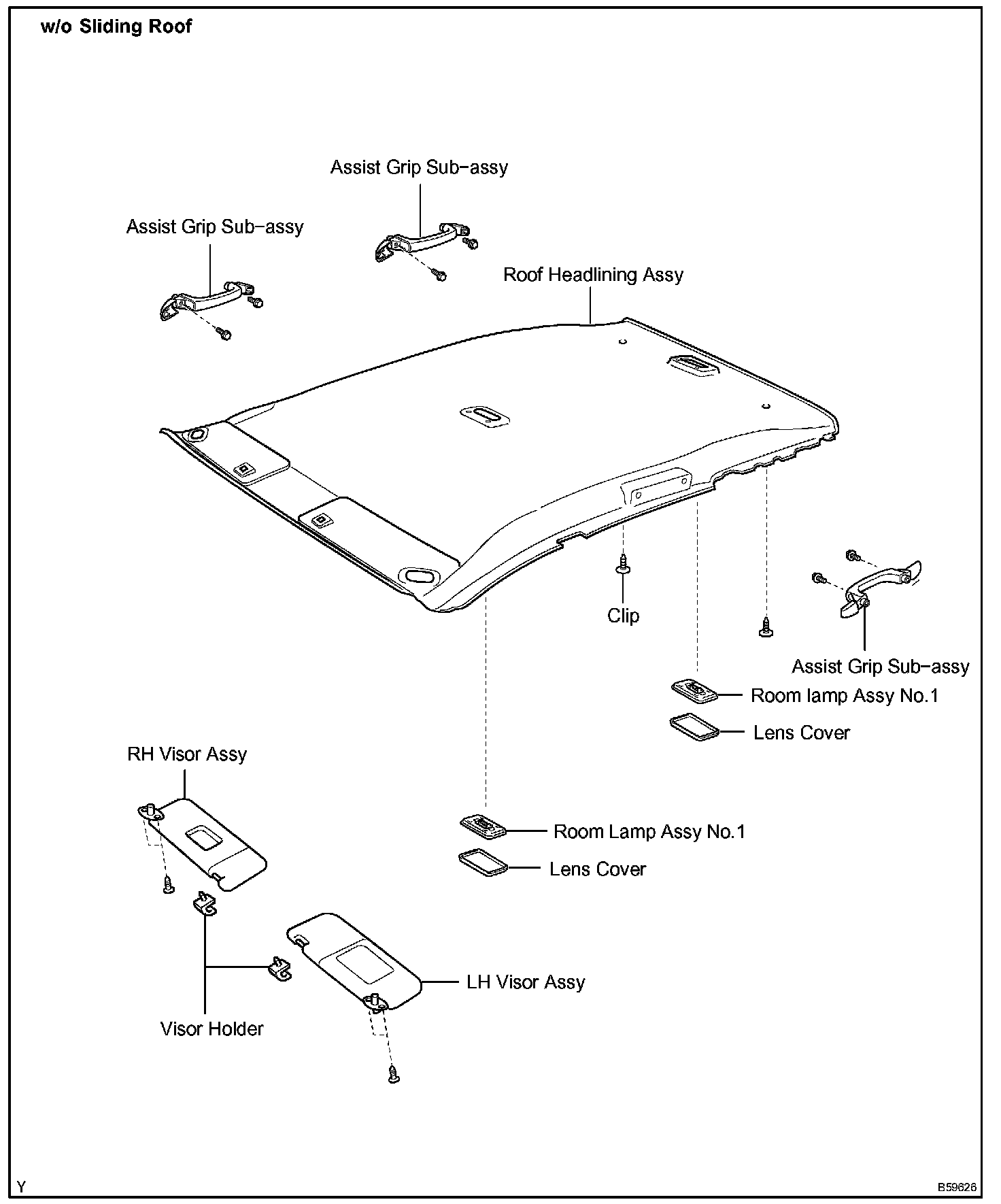

Roof Headlining Assy:
