System Specifications

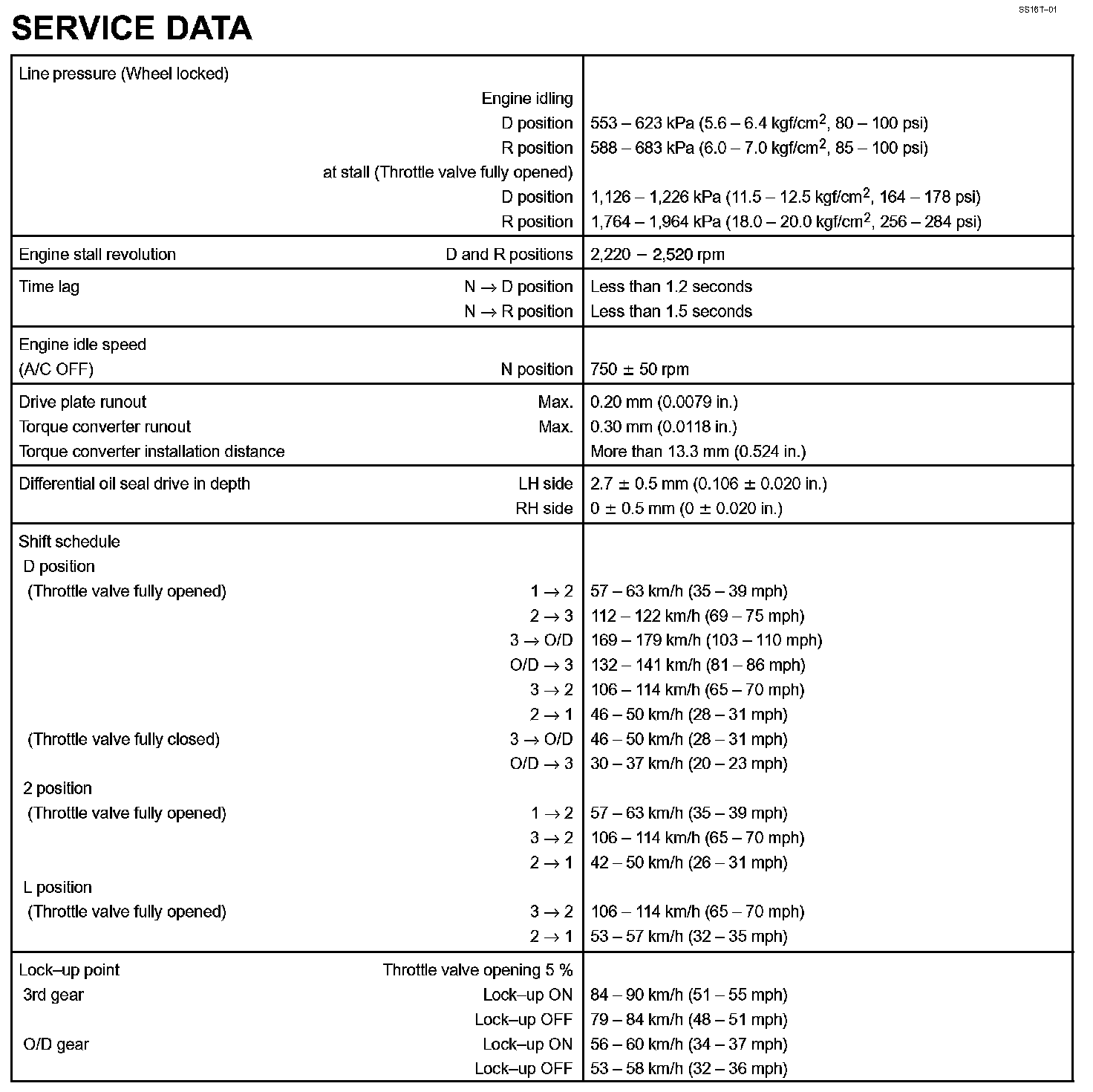

Automatic Transaxle (U341E) - Service Data:

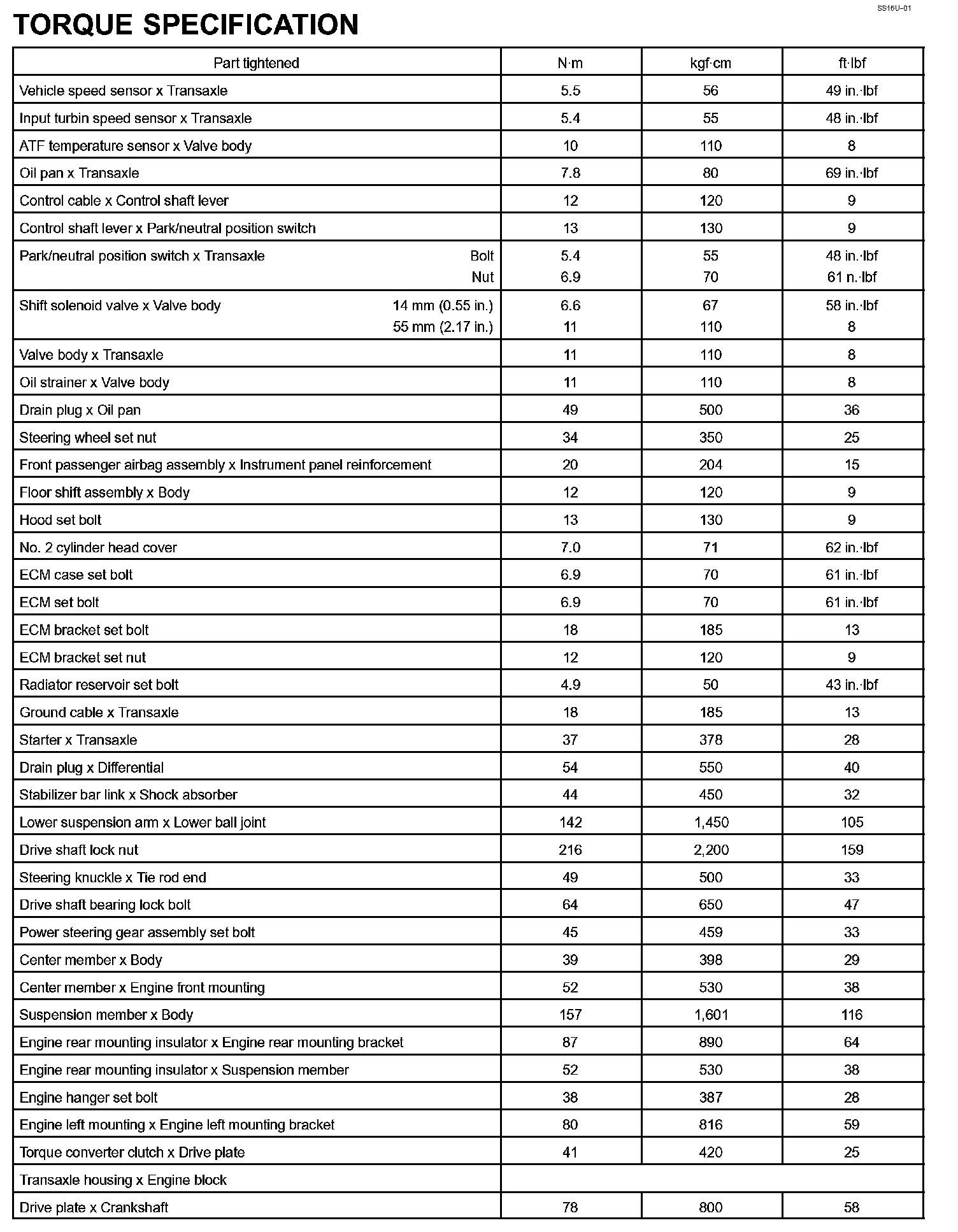

Automatic Transaxle (U341E) - Torque Specification:
