Home >> Toyota >> 2005 >> Celica L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment

Alignment

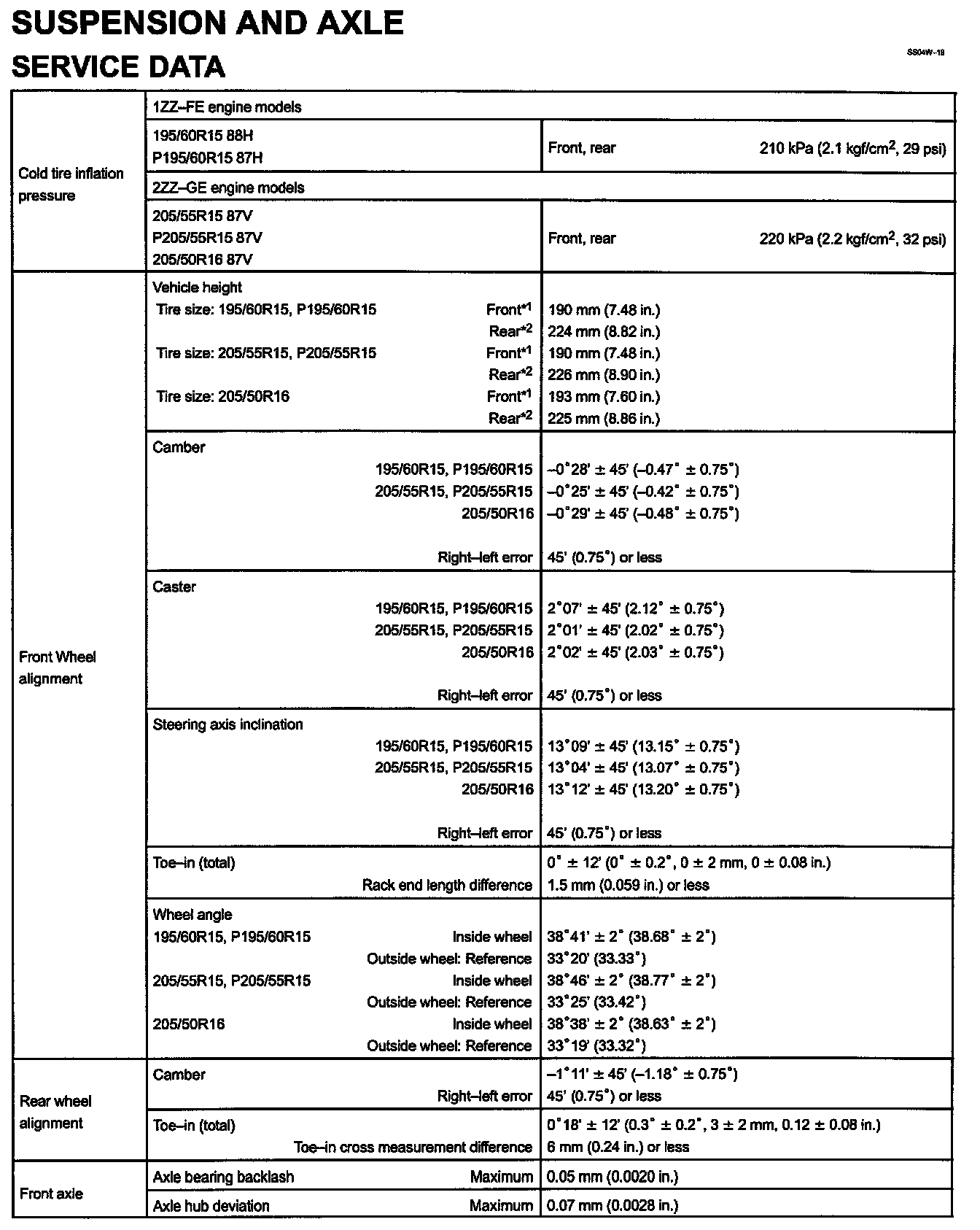

1 Of 2:

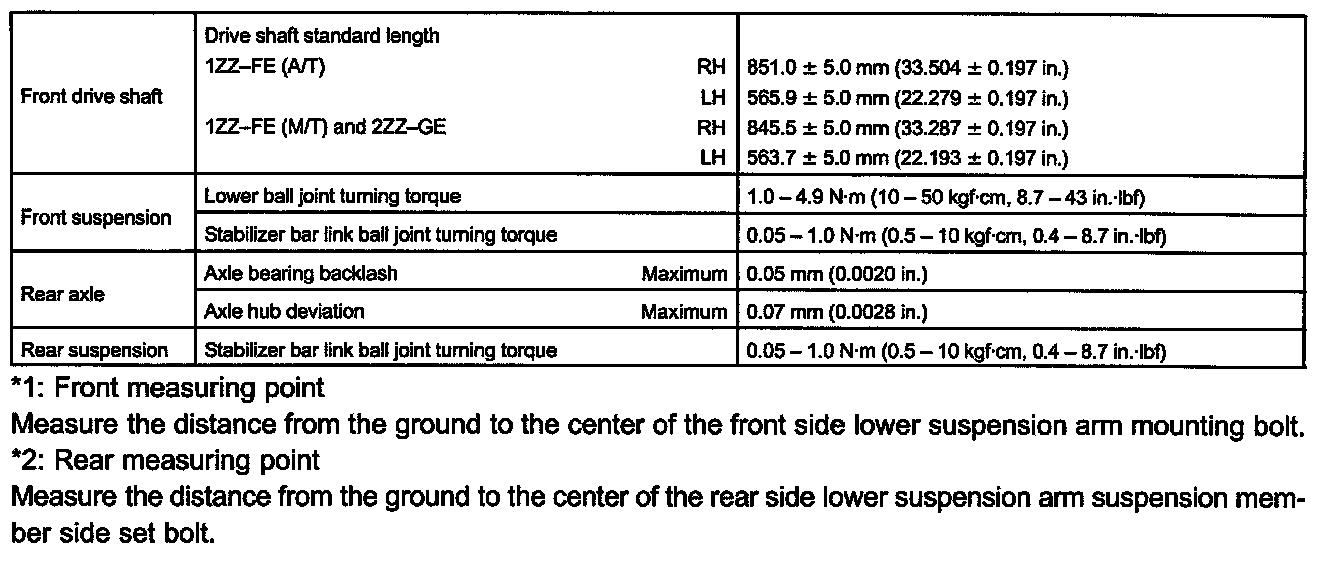

2 Of 2:
