Keyless Entry Module: Testing and Inspection

Terminals Of Control Module / Pinouts:

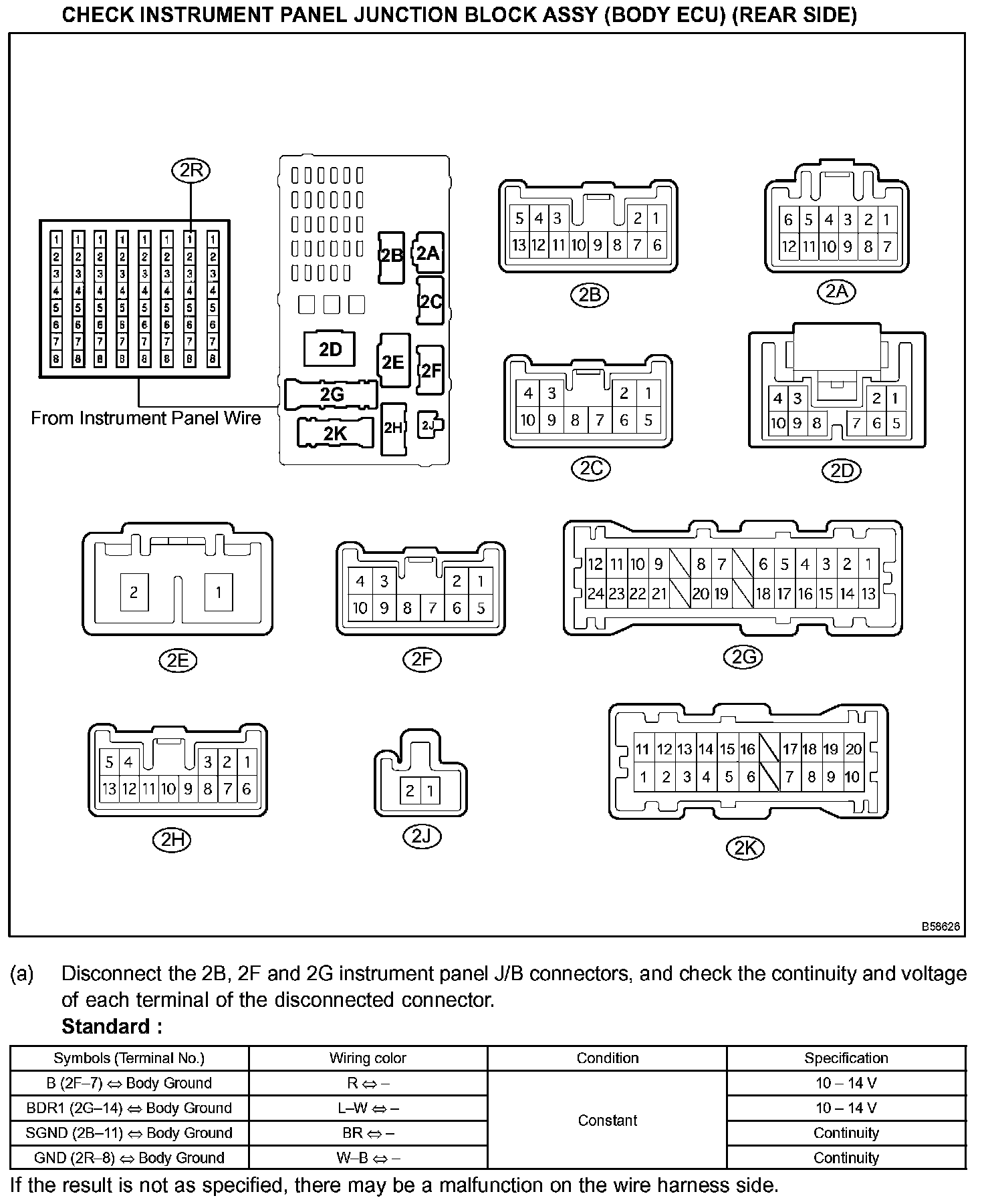

Terminals Of Control Module / Pinouts Part 1:

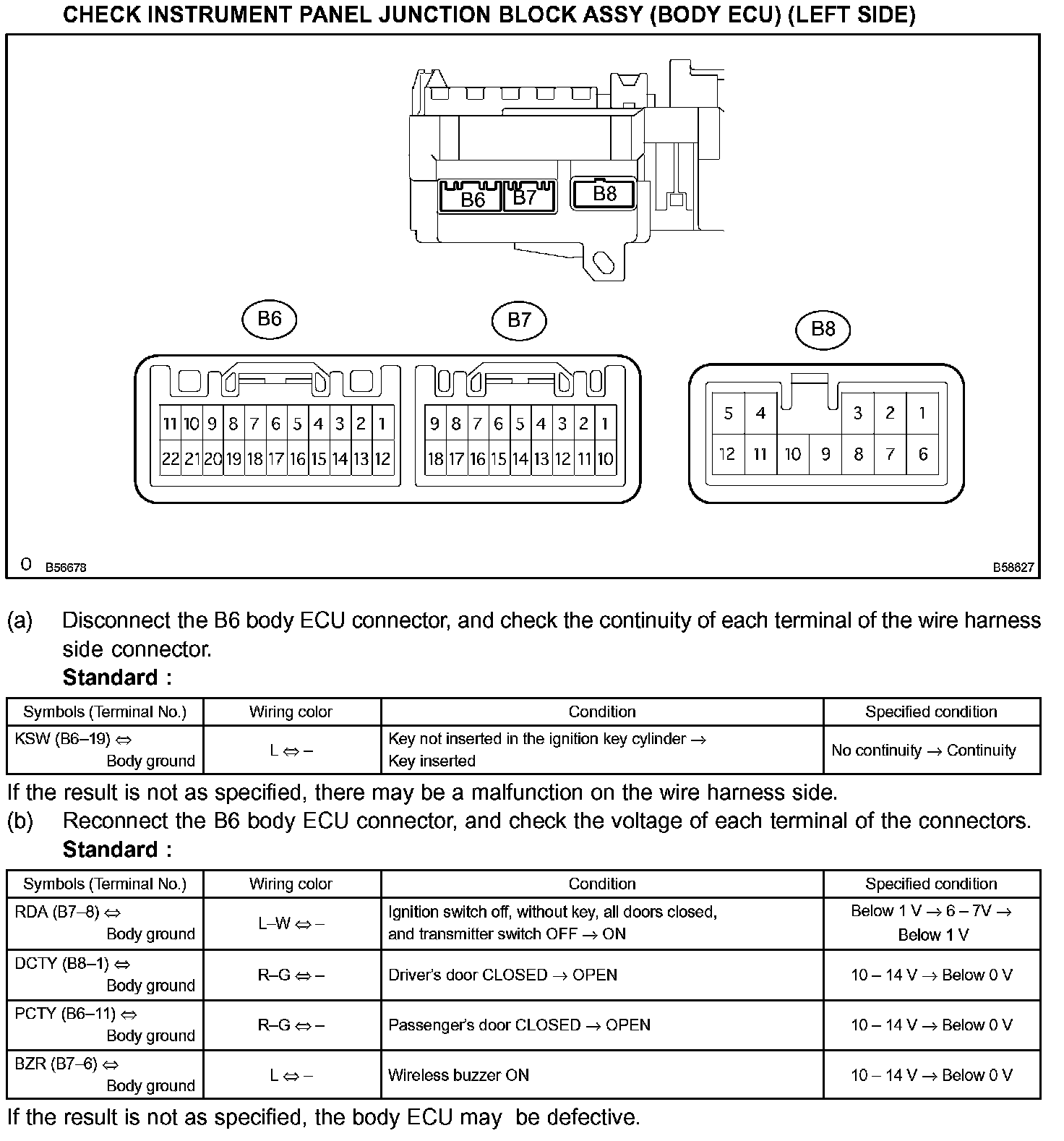

Terminals Of Control Module / Pinouts Part 2:
