Power Window Control Module: Testing and Inspection

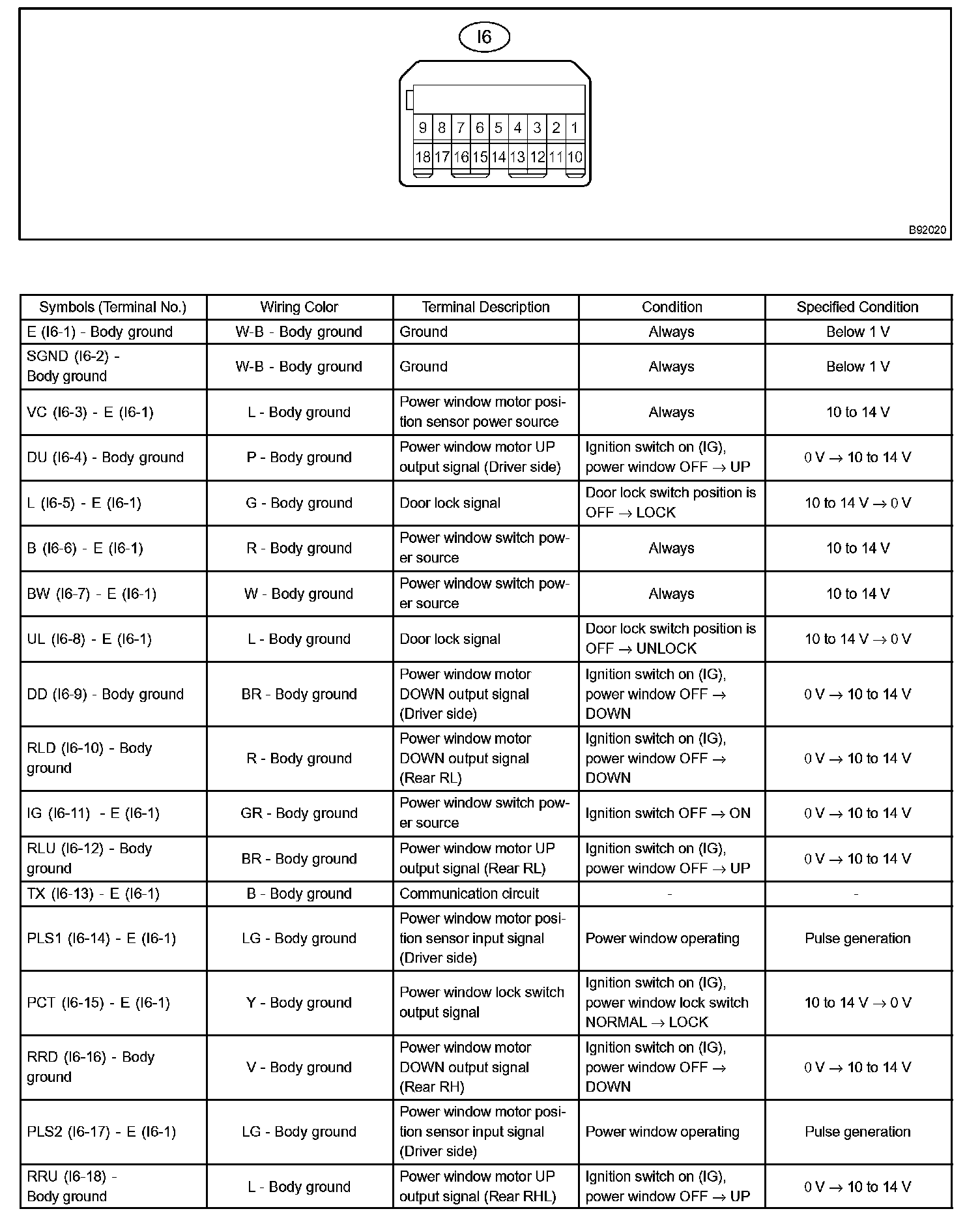

Terminals Of Control Module/Pinouts - Multiplex Network Master Switch Assy:

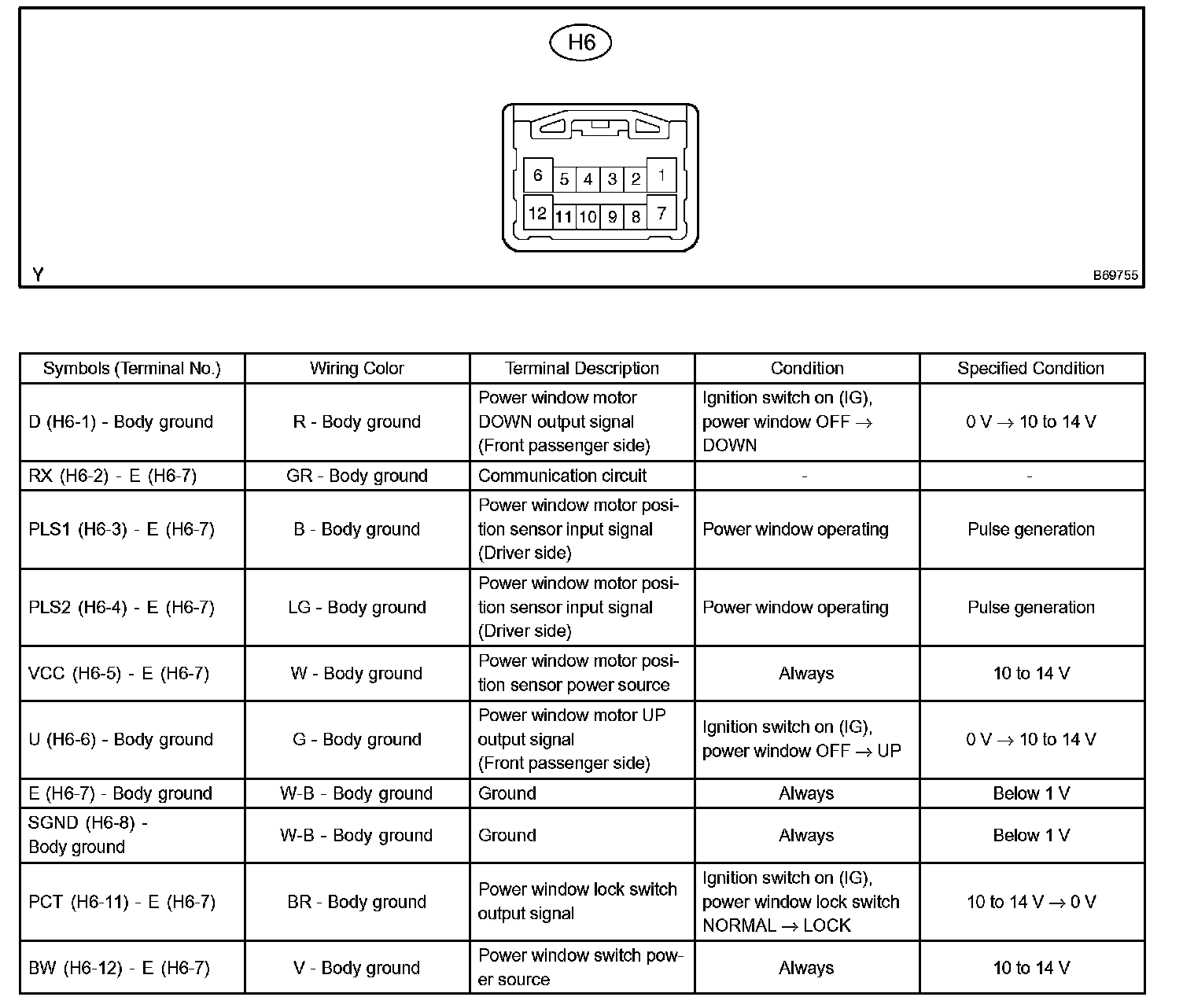

Terminals Of Control Module/Pinouts - Multiplex Network Switch Assy:
