Radiator Cooling Fan Control Module: Locations

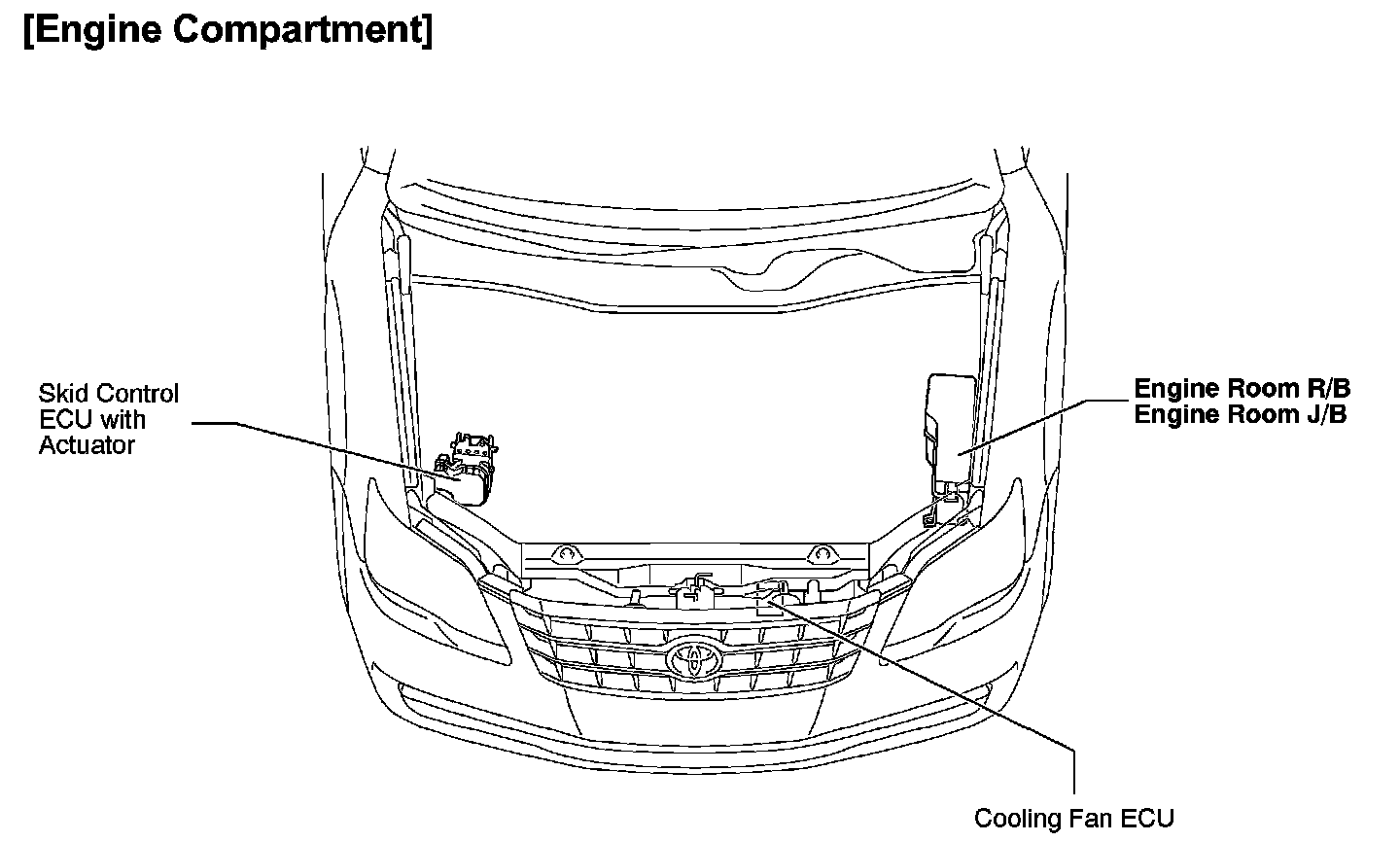

Engine Compartment:

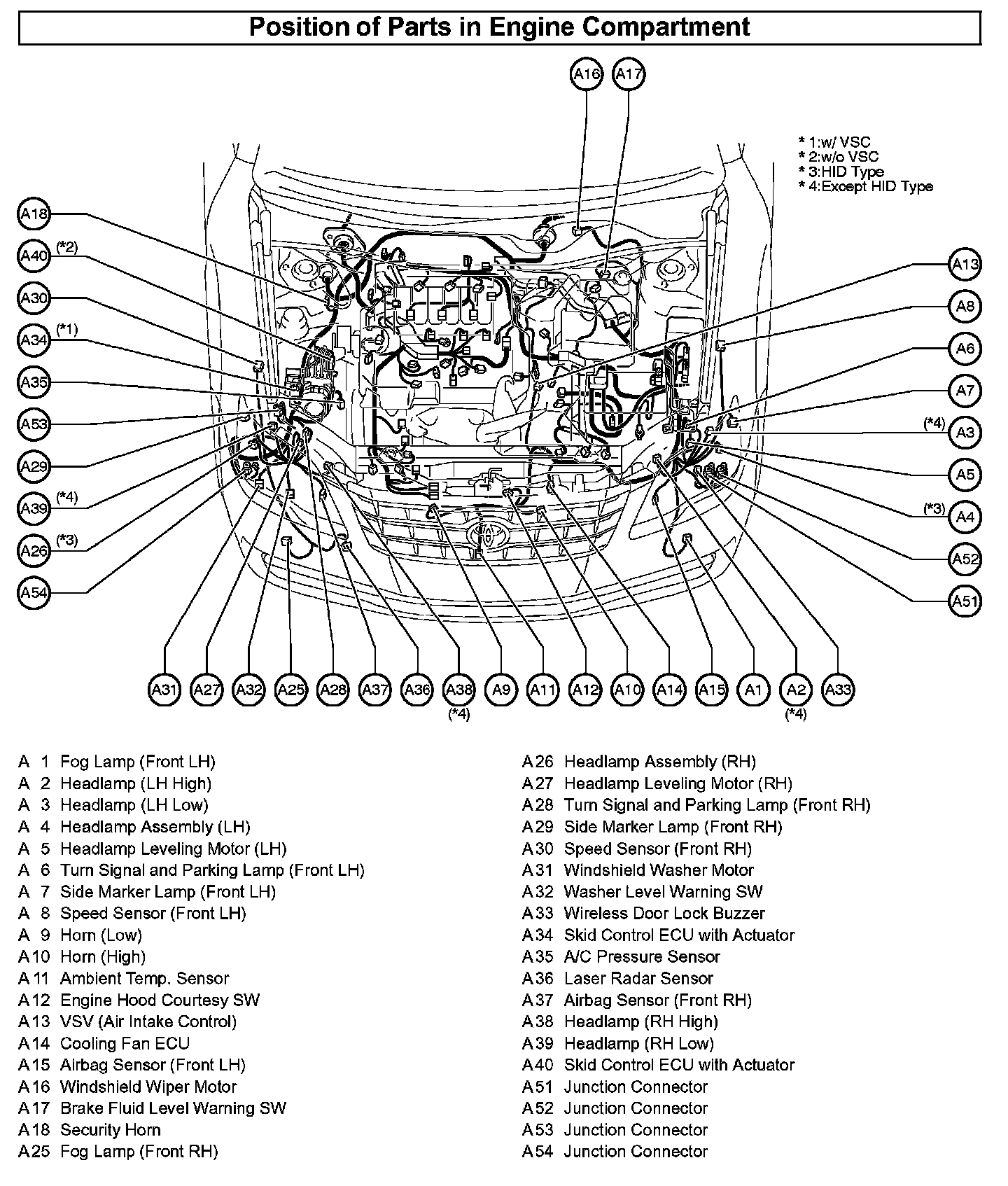

Position of Parts In Engine Compartment:



SFI System:
