Impact Sensor

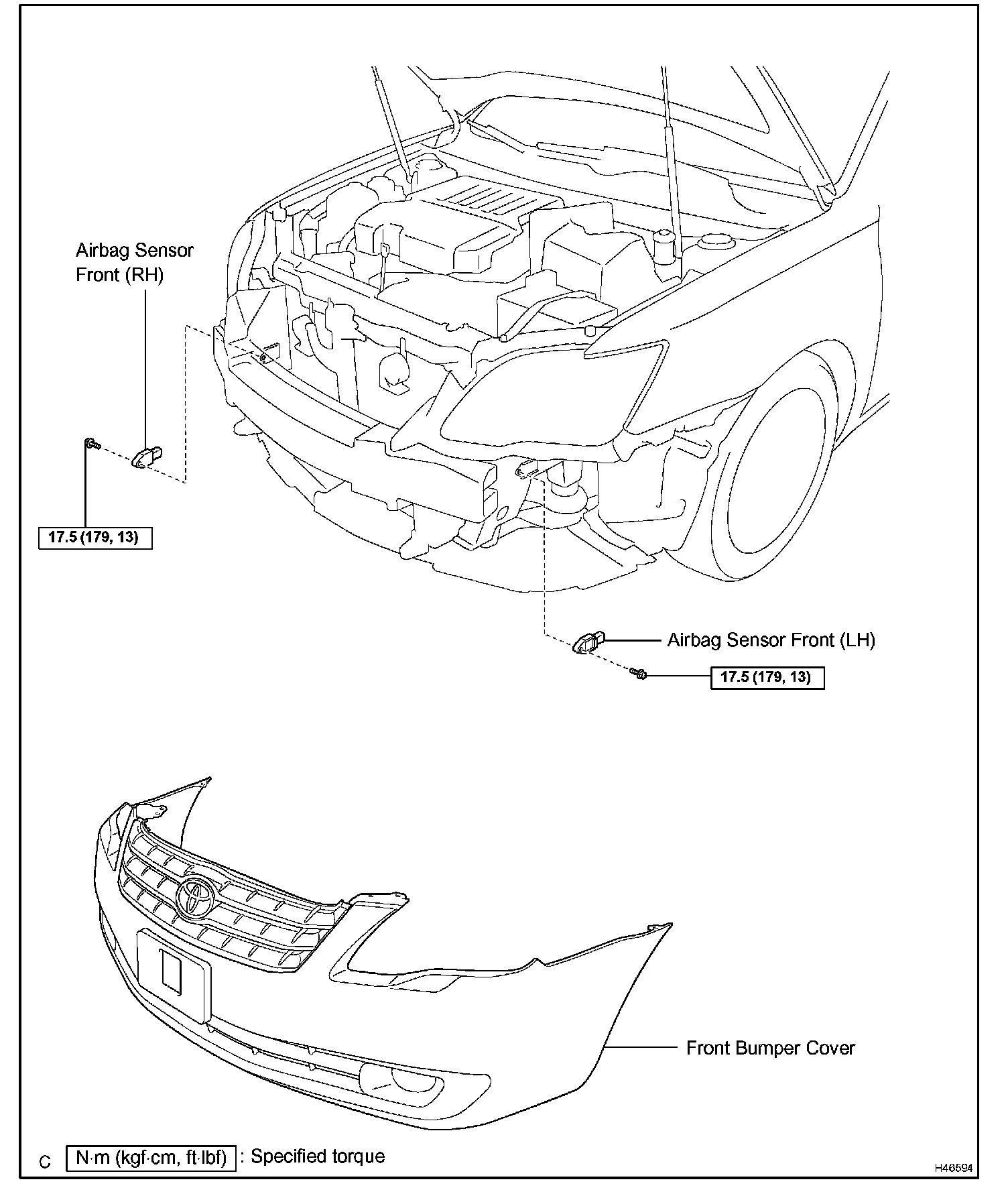

Air Bag Sensor Front:

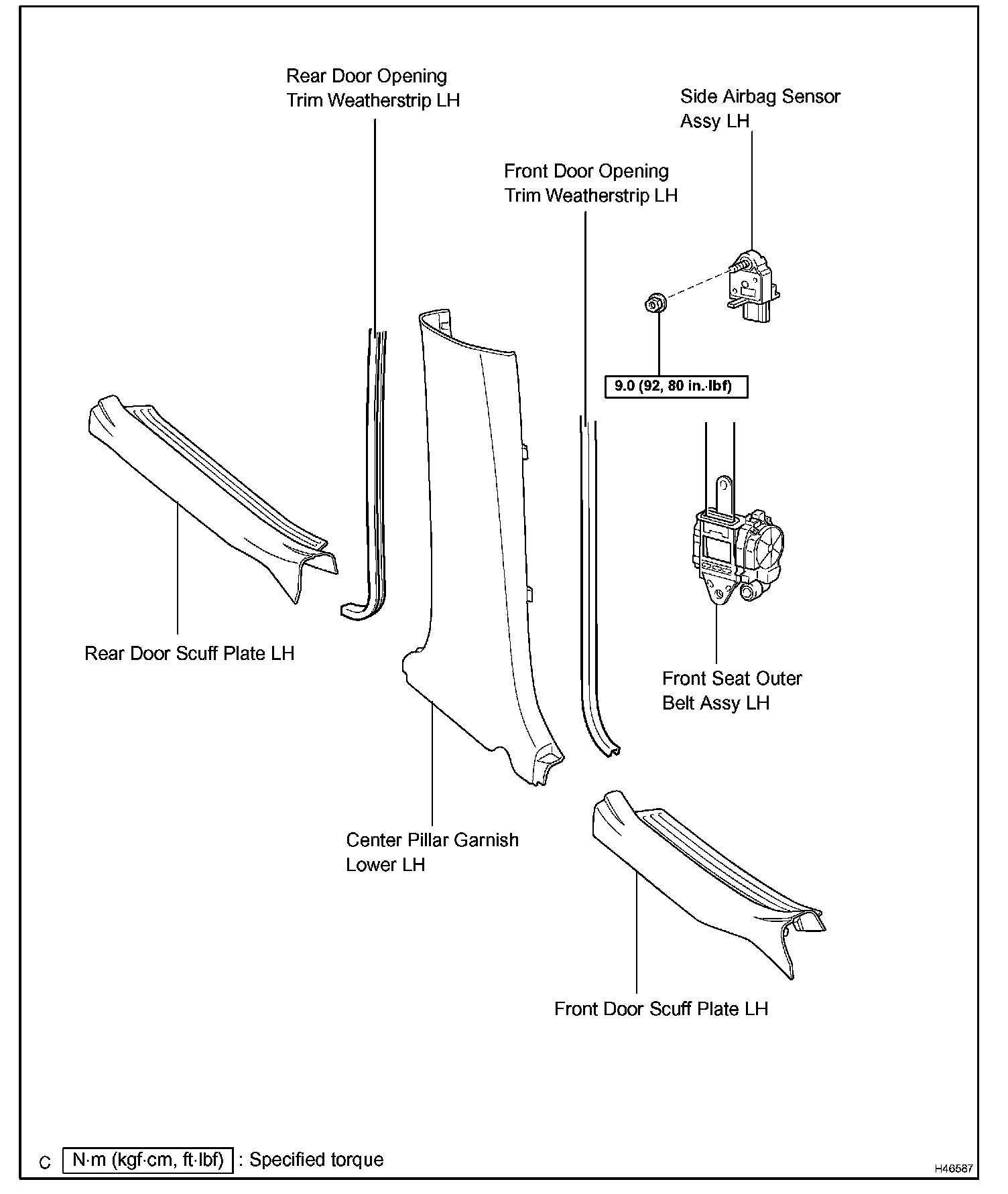

Side Air Bag Sensor Assy LH:

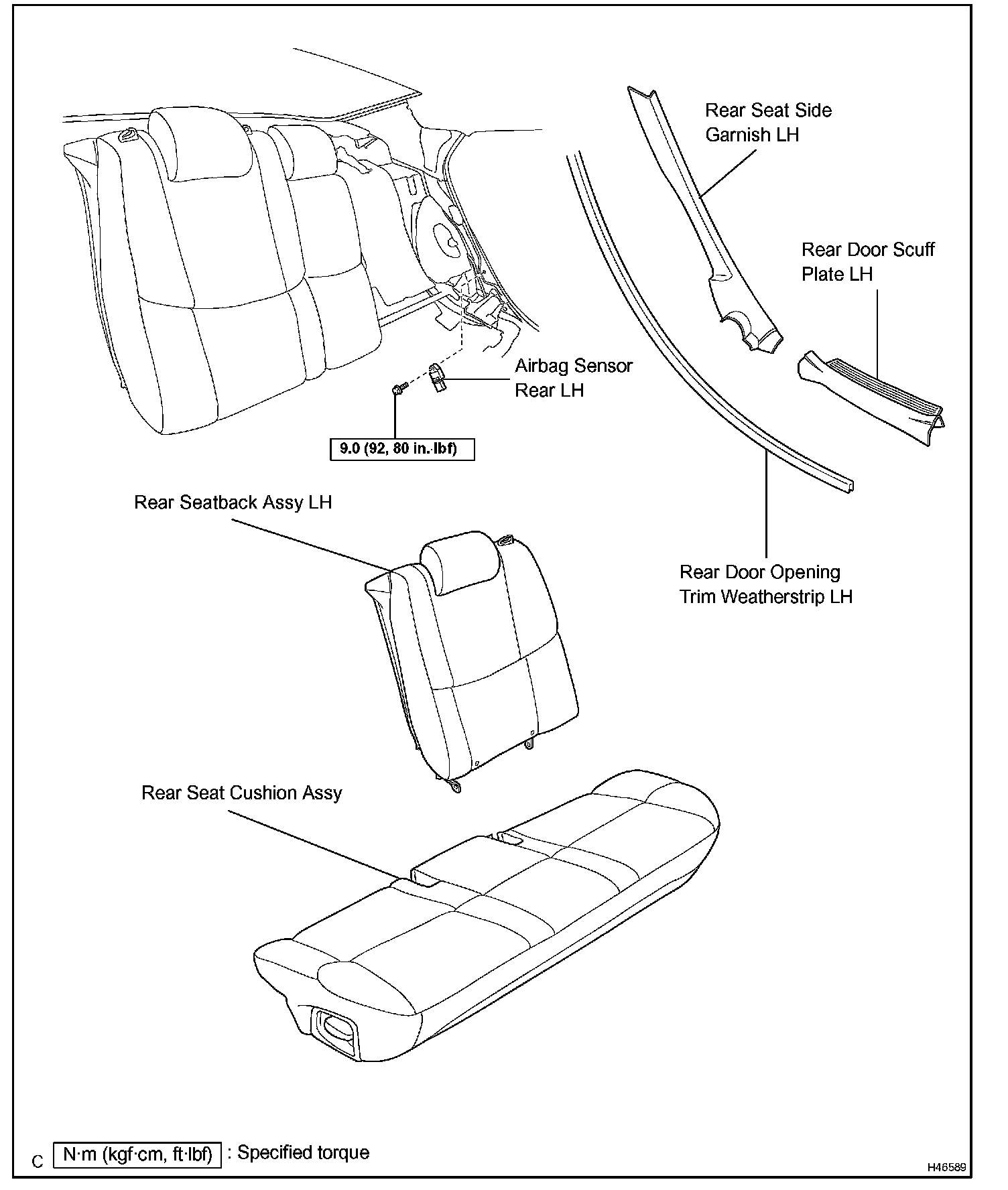

Air Bag Sensor Rear LH:

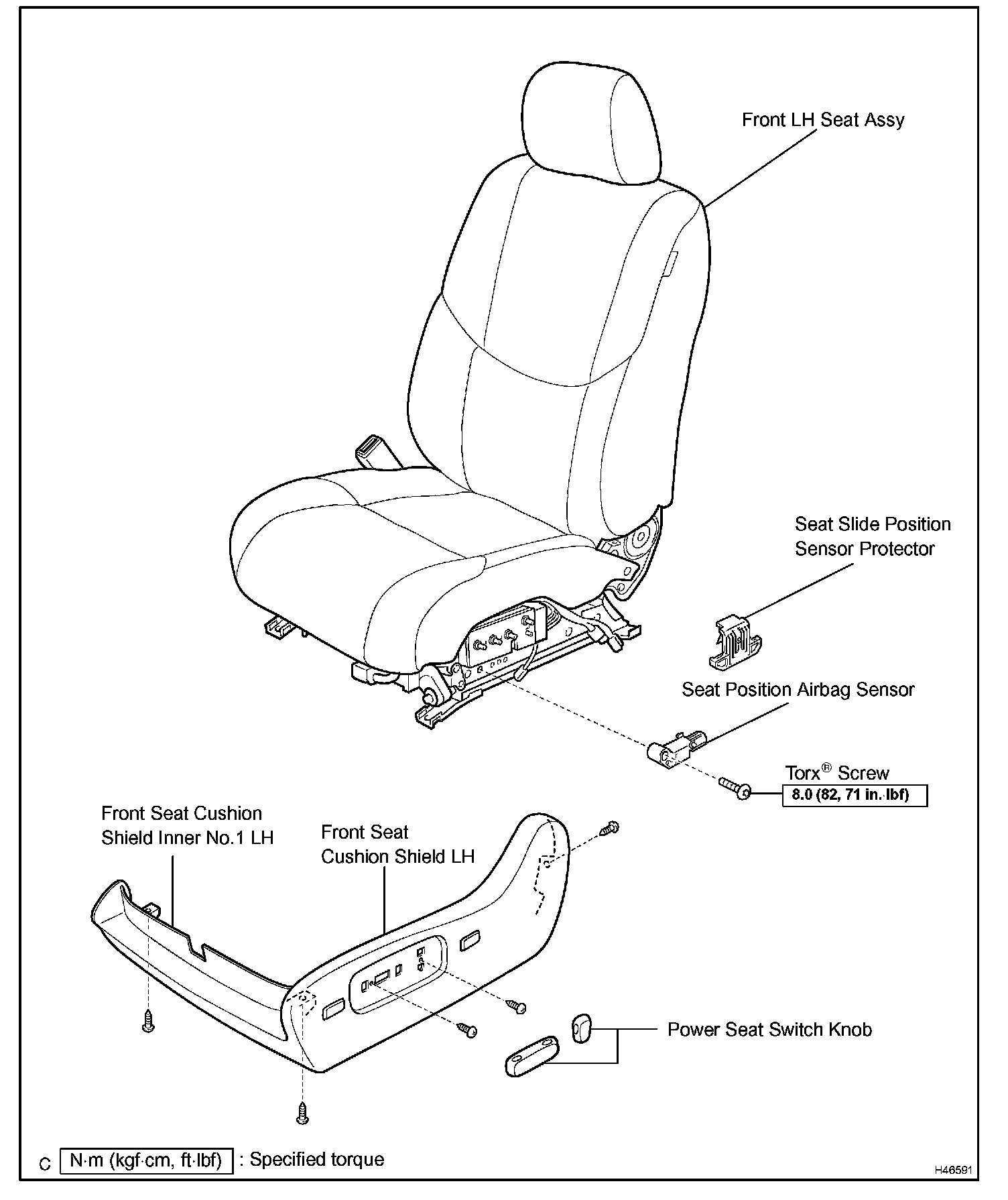

Seat Position Airbag Sensor:
