Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

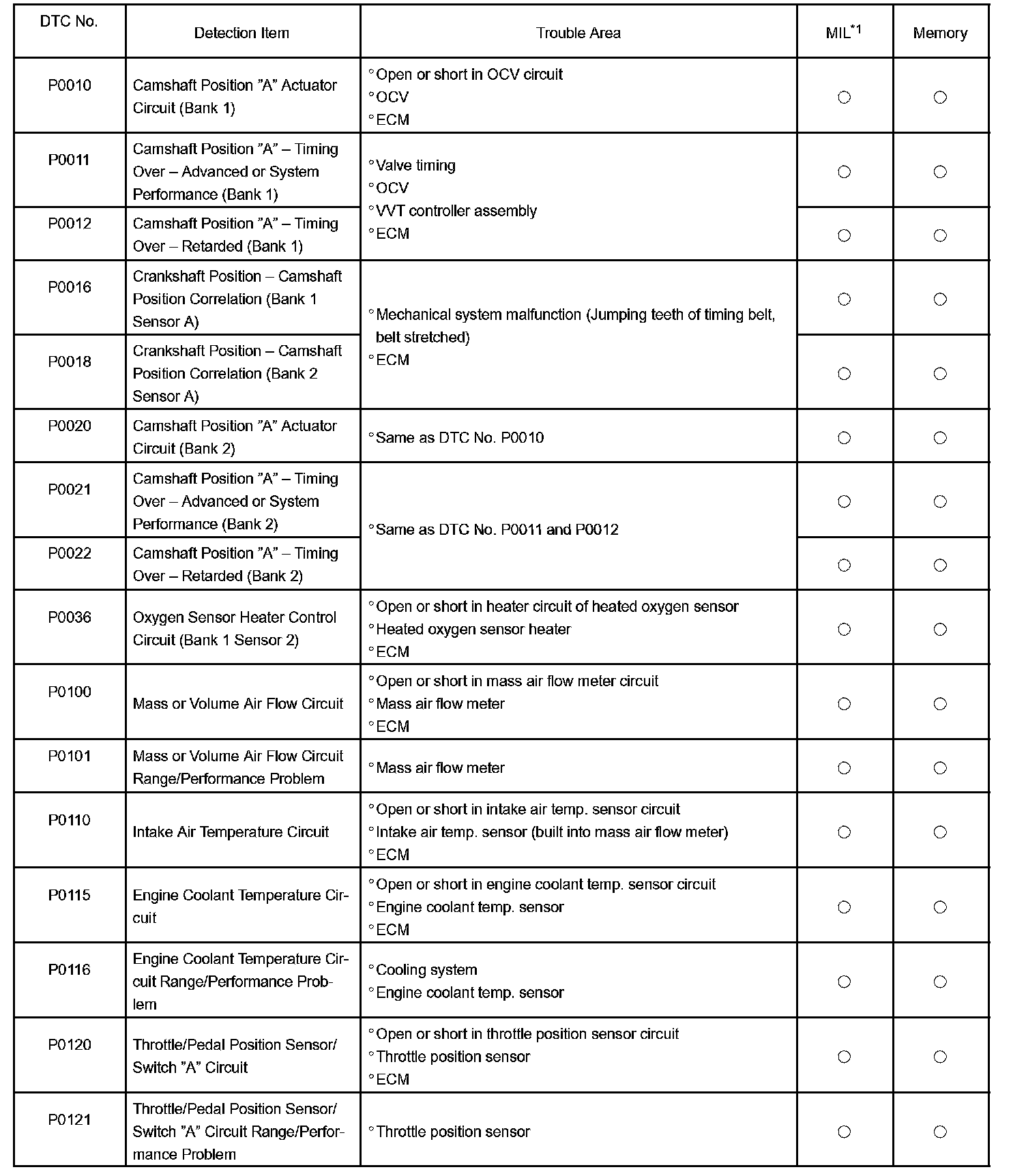

P0010 - P0121:

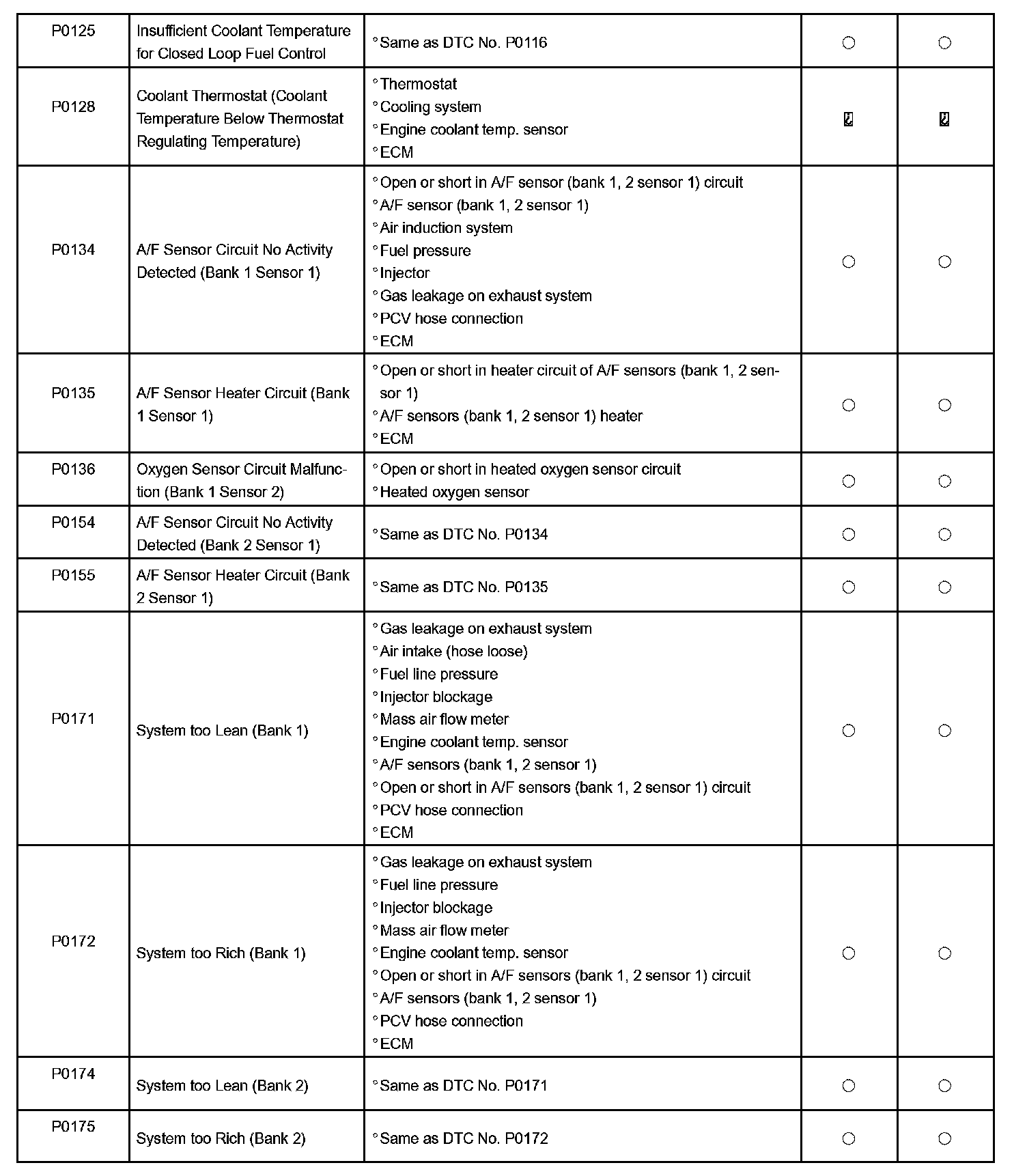

P0128 - P0175:

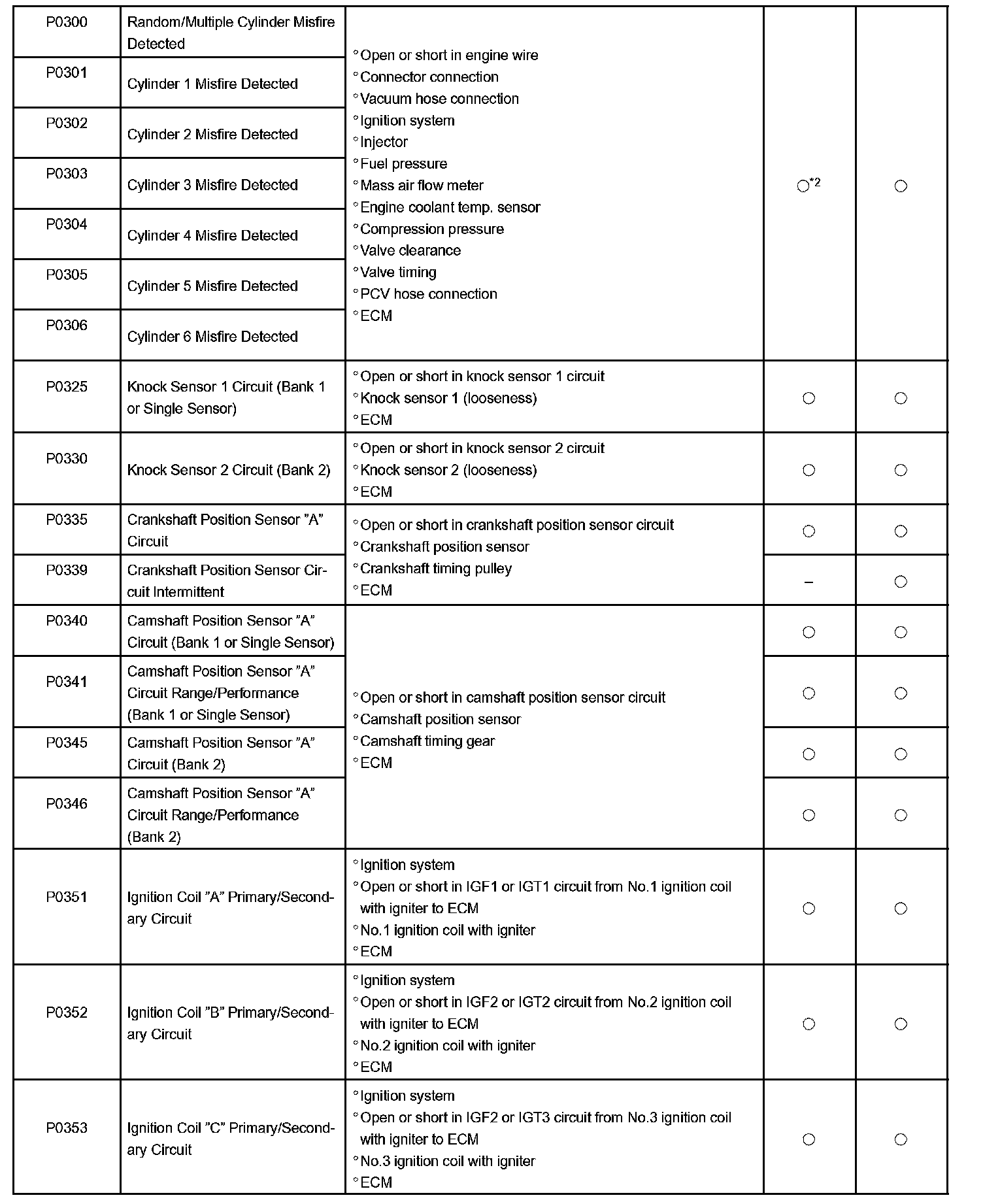

P0300 - P0363:

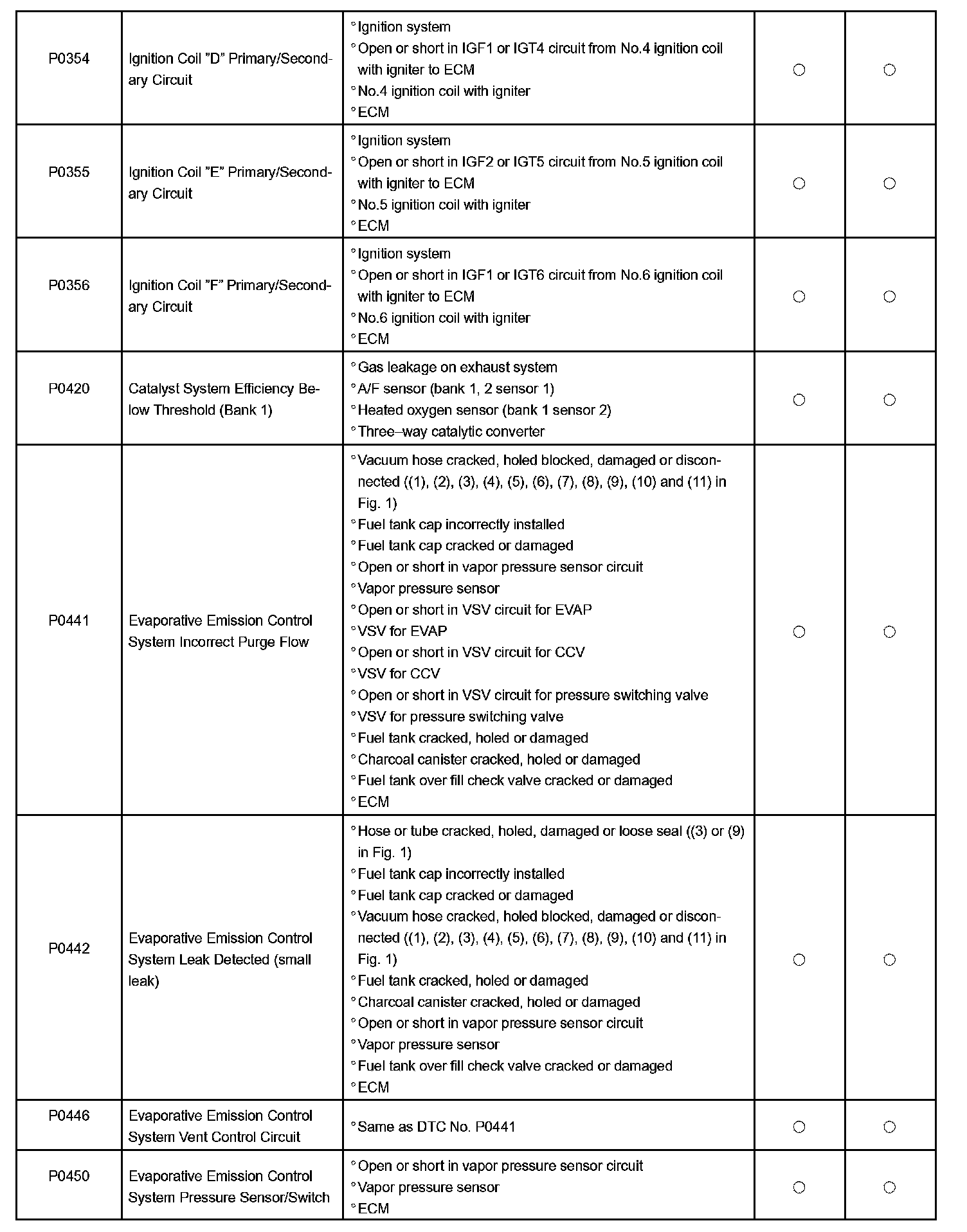

P0354 - P0450:

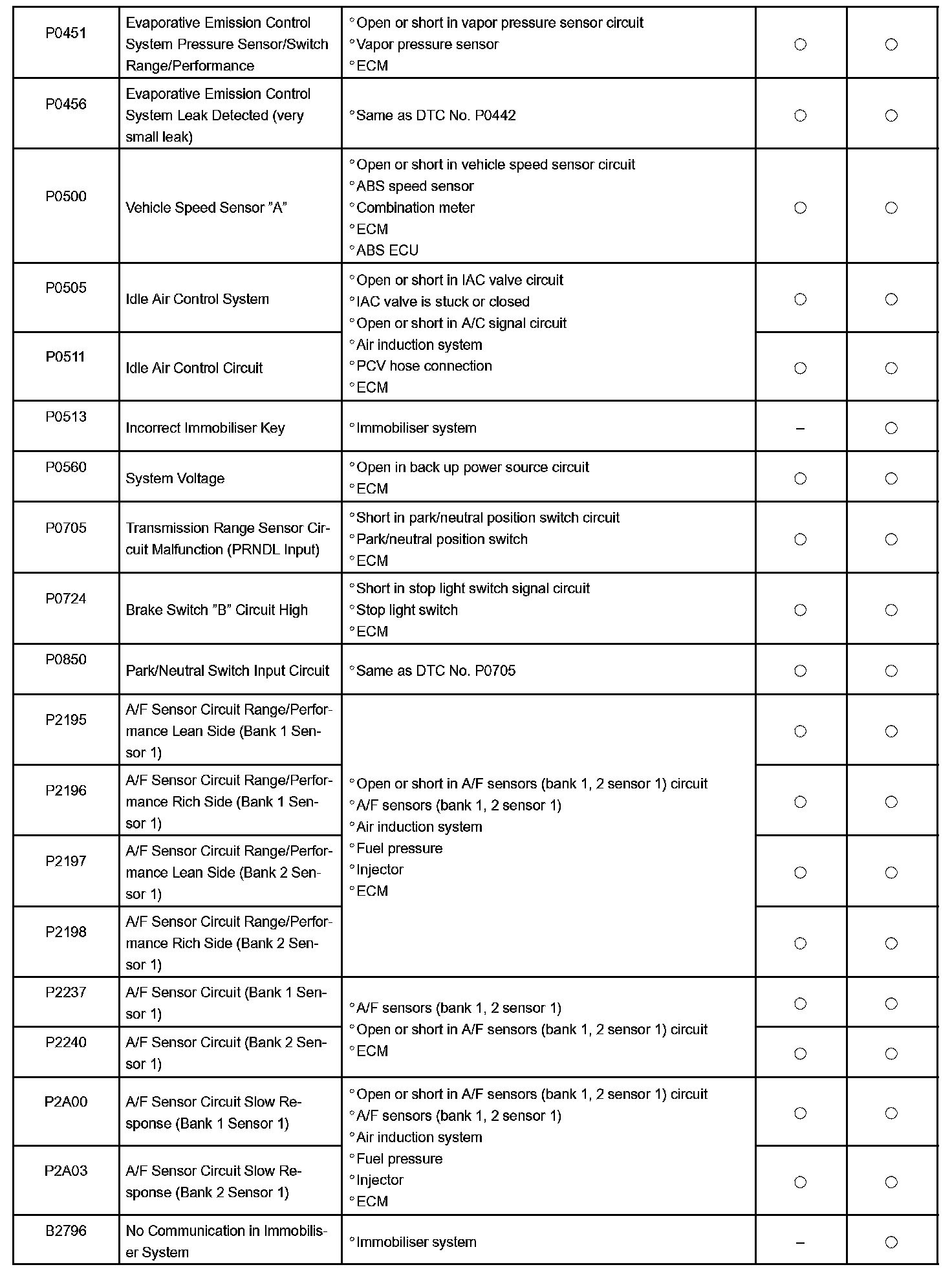

P0451 - B2796:

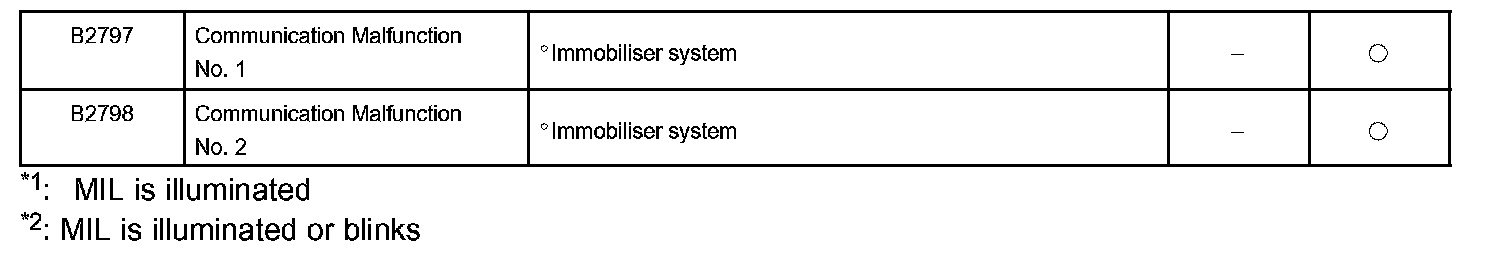

B2797 - B2798:

HINT: Parameters listed in the chart may be different than your readings depending on the type of instrument used and other factors.
During the DTC check, refer to the table if a malfunction code is displayed. For details about each code, refer to the DTC Chart.
