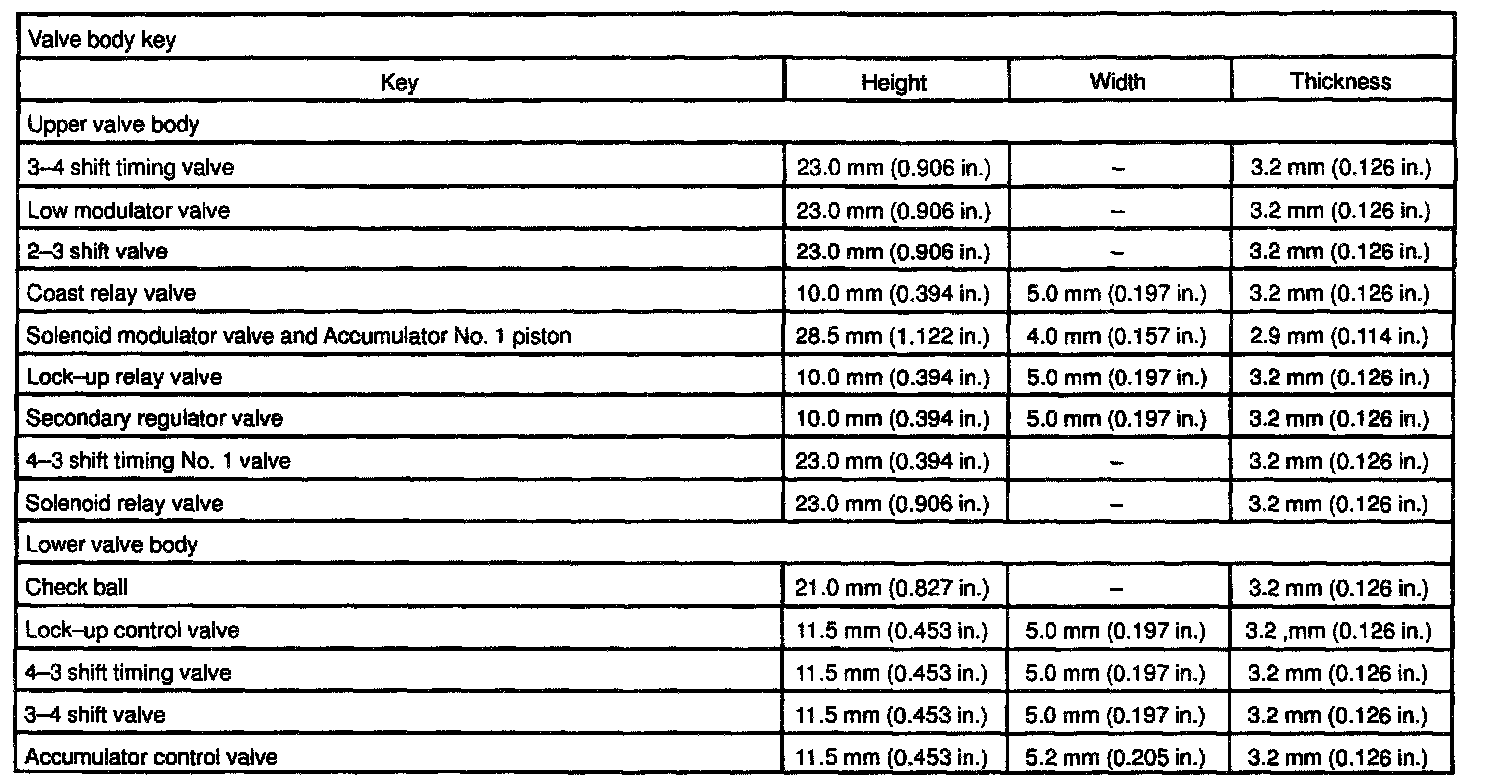

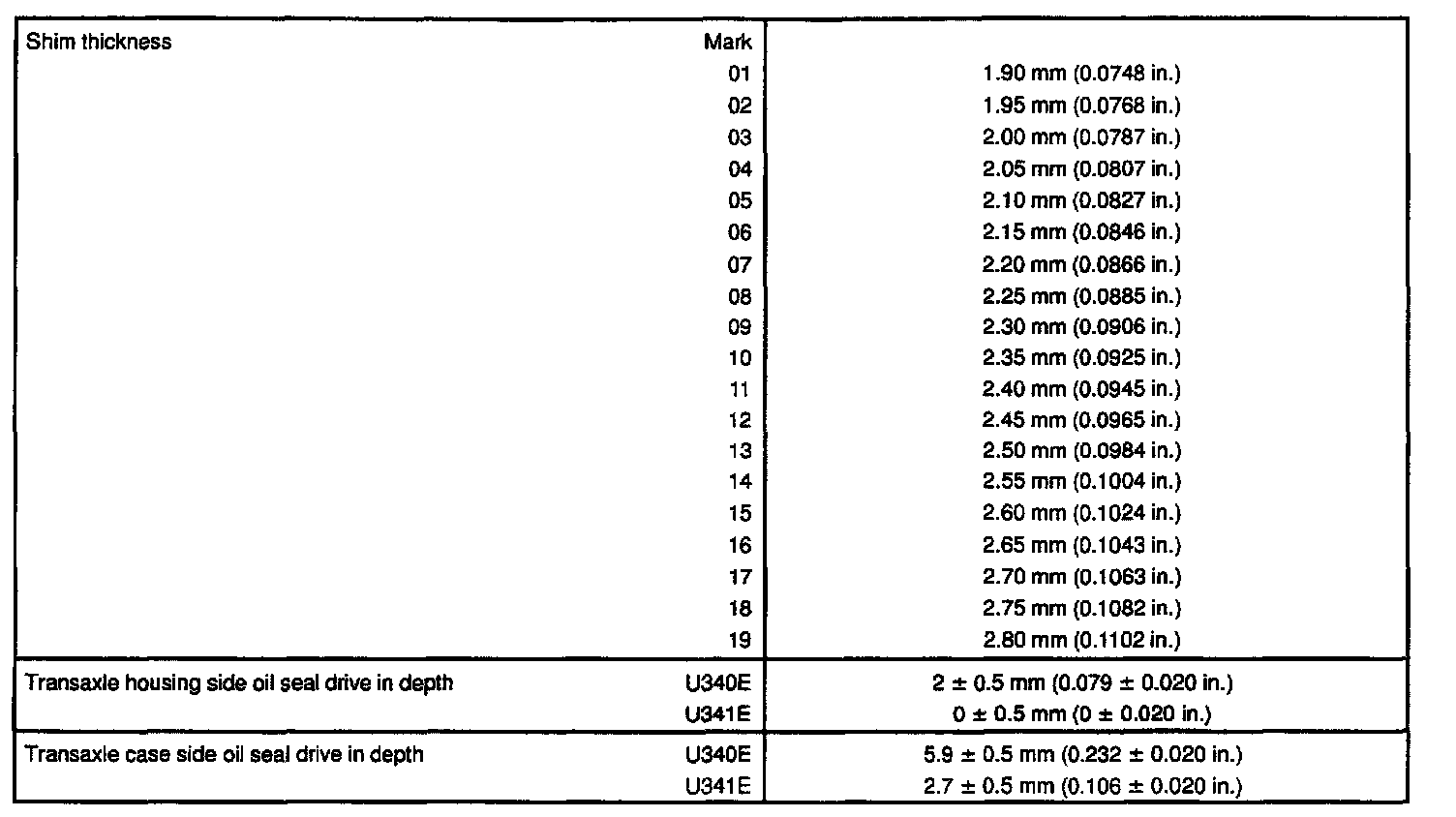

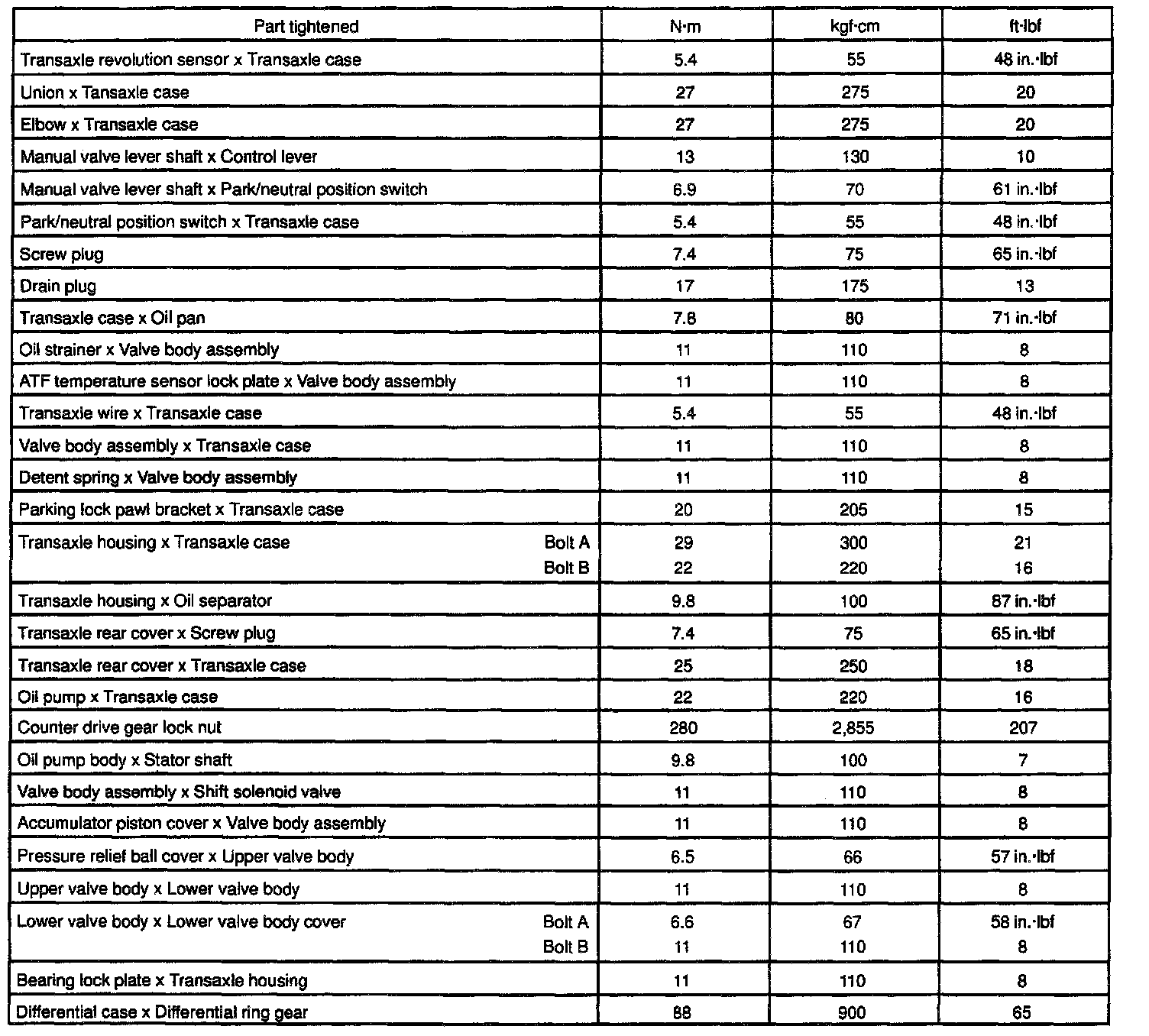

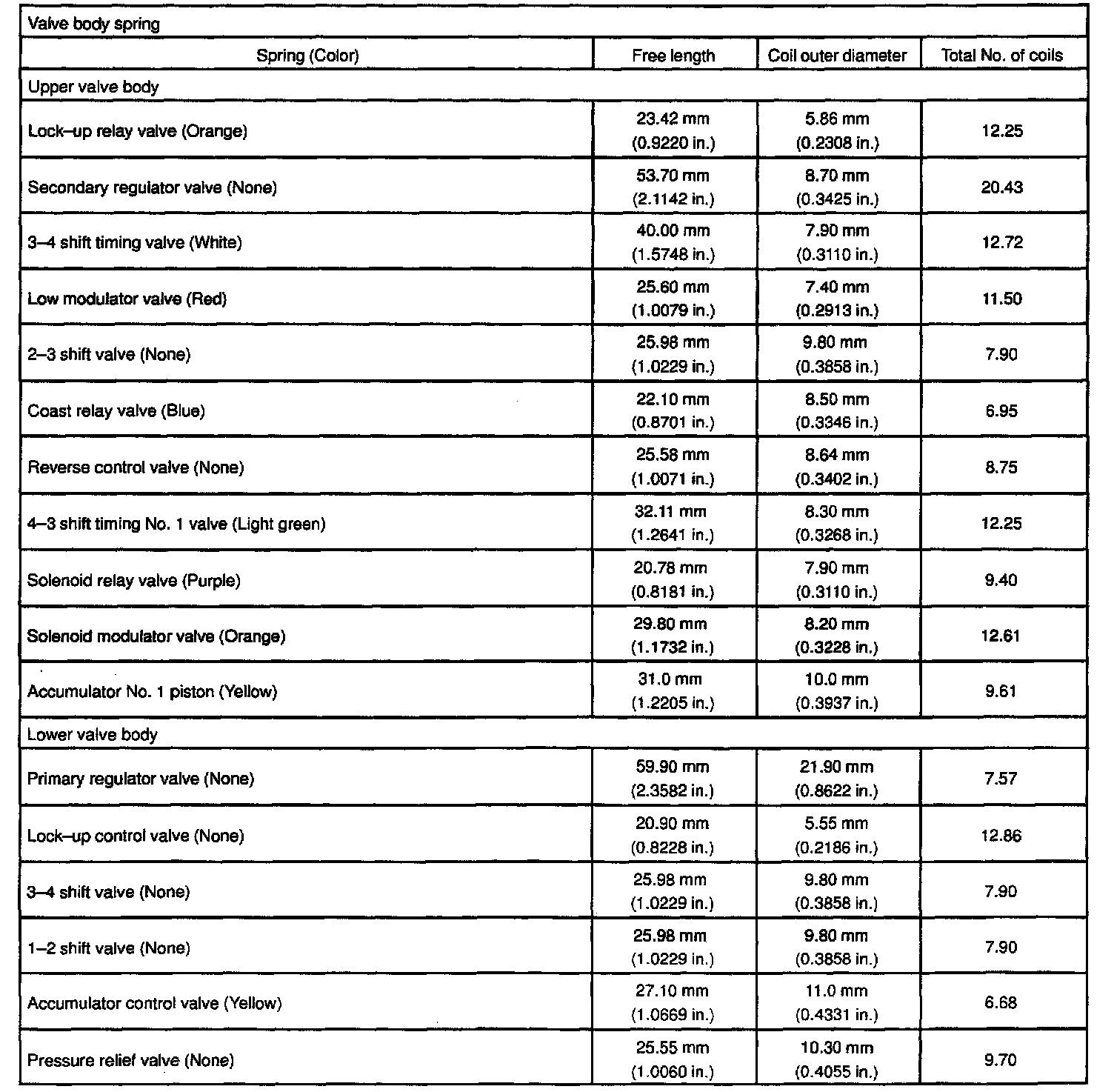

Service Data

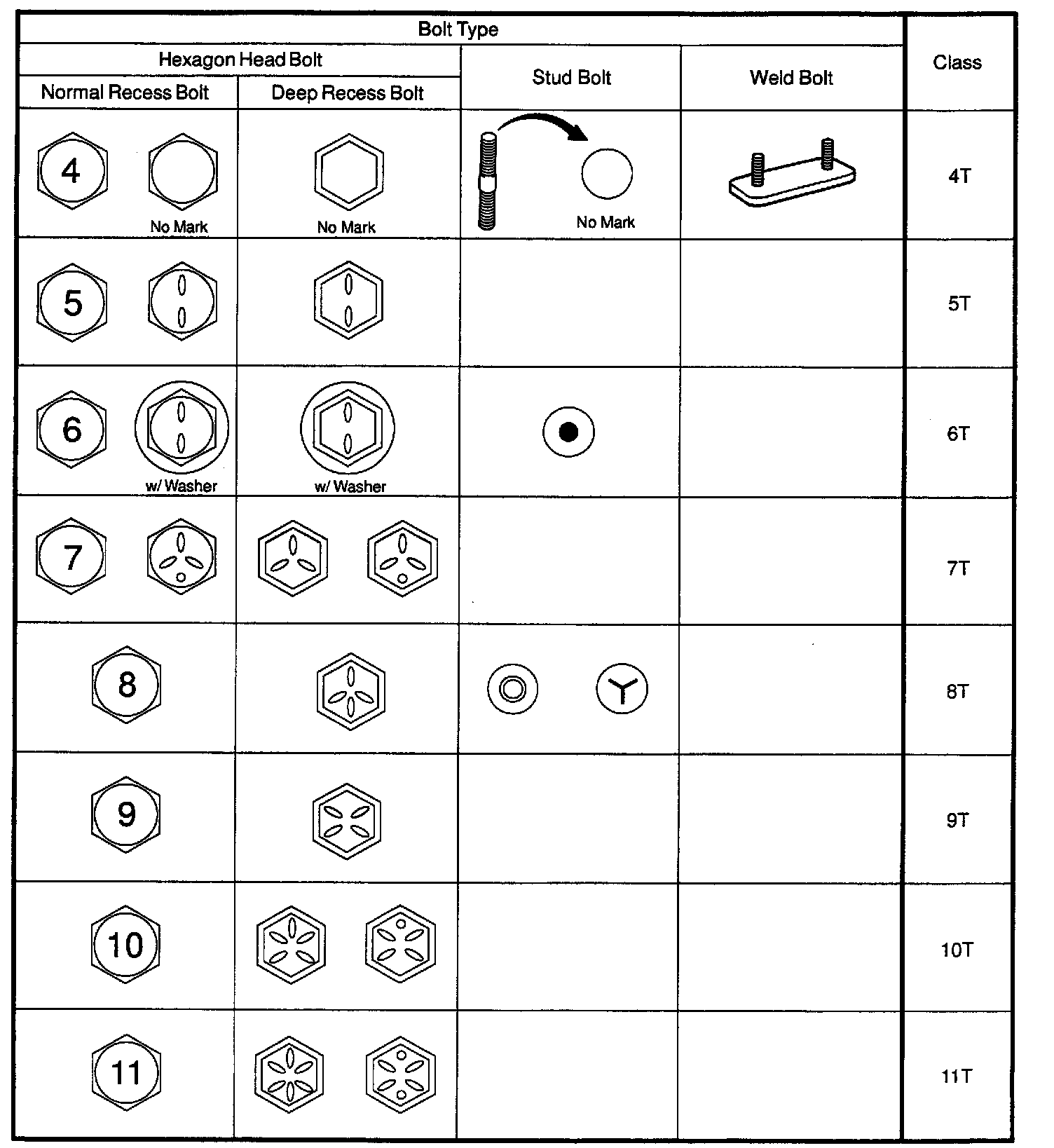

HOW TO DETERMINE BOLT STRENGTH:

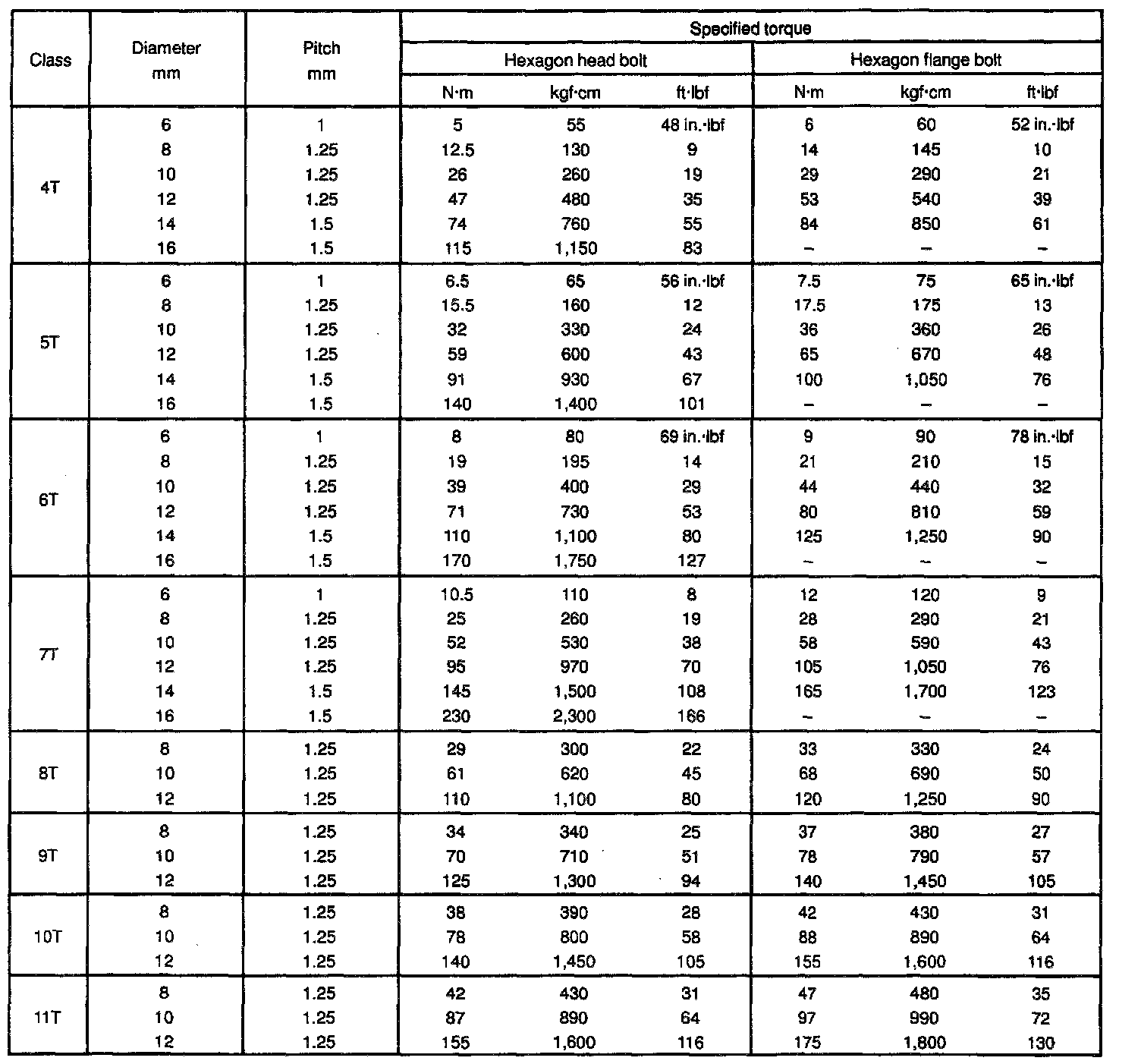

SPECIFIED TORQUE FOR STANDARD BOLTS:

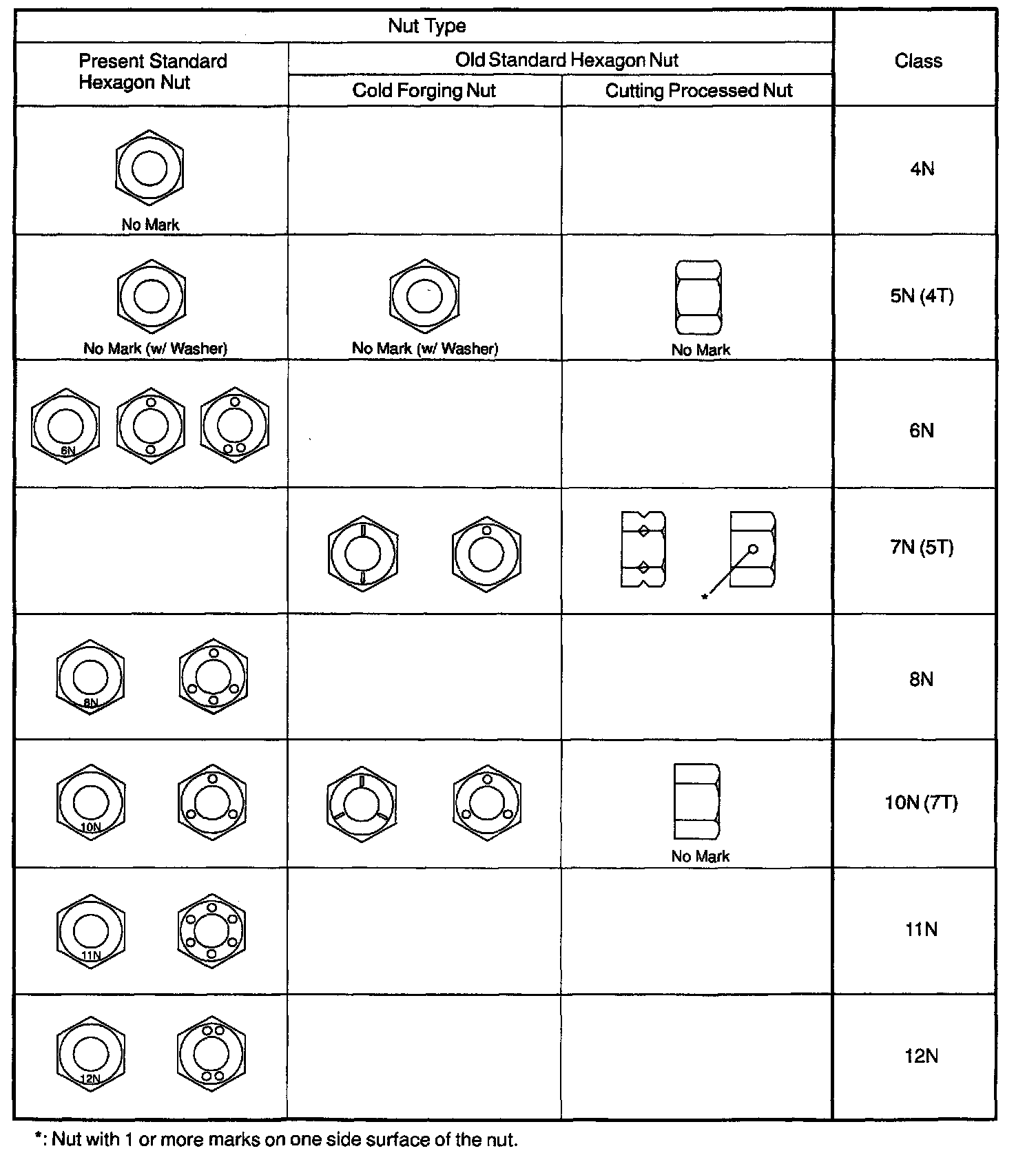

HOW TO DETERMINE NUT STRENGTH:















































Service Data
