Connector Views

M/T And 3 A/T - ECM - Connector View:

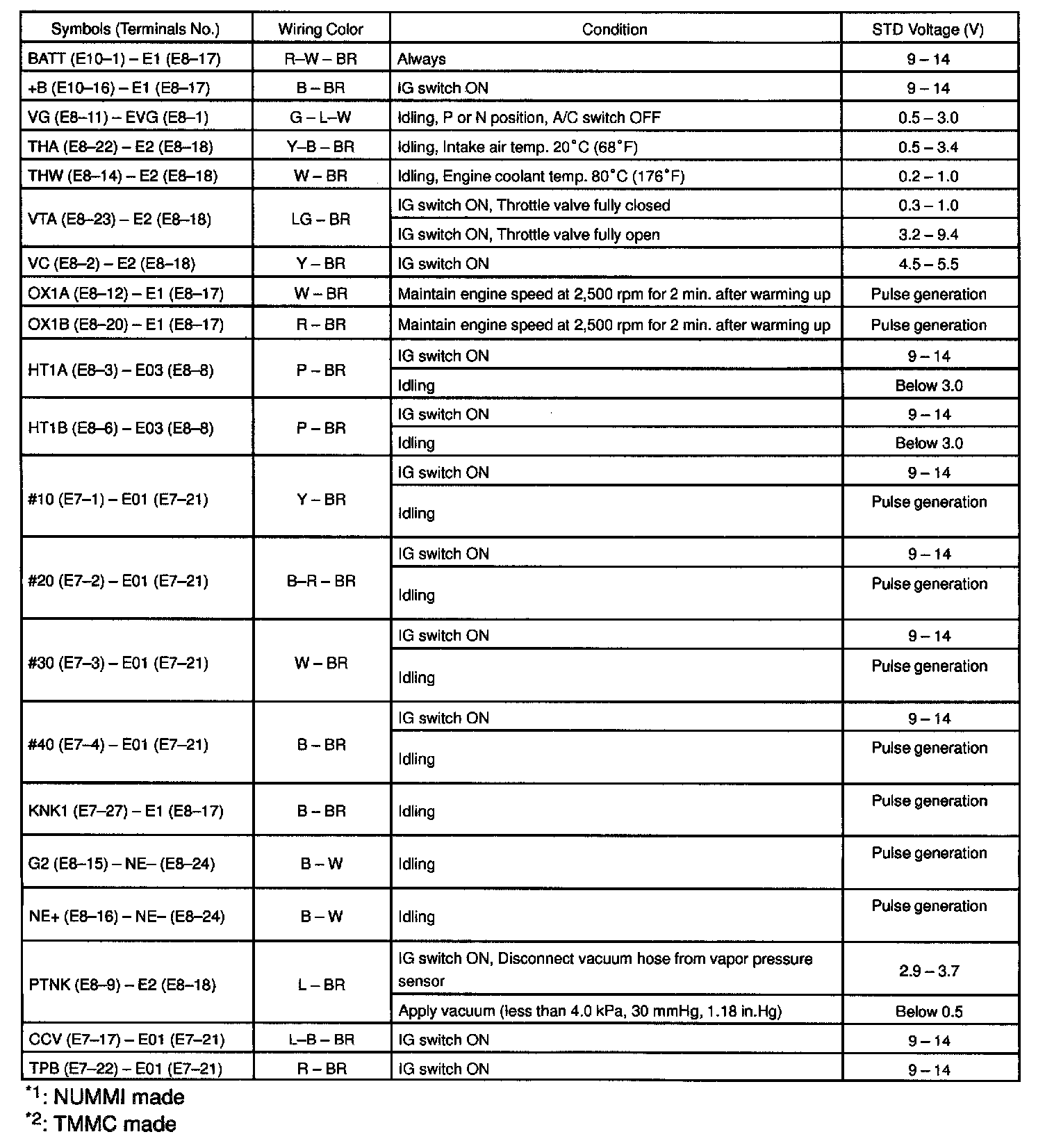

M/T And 3 A/T - ECM - Pin-outs (Part 1):

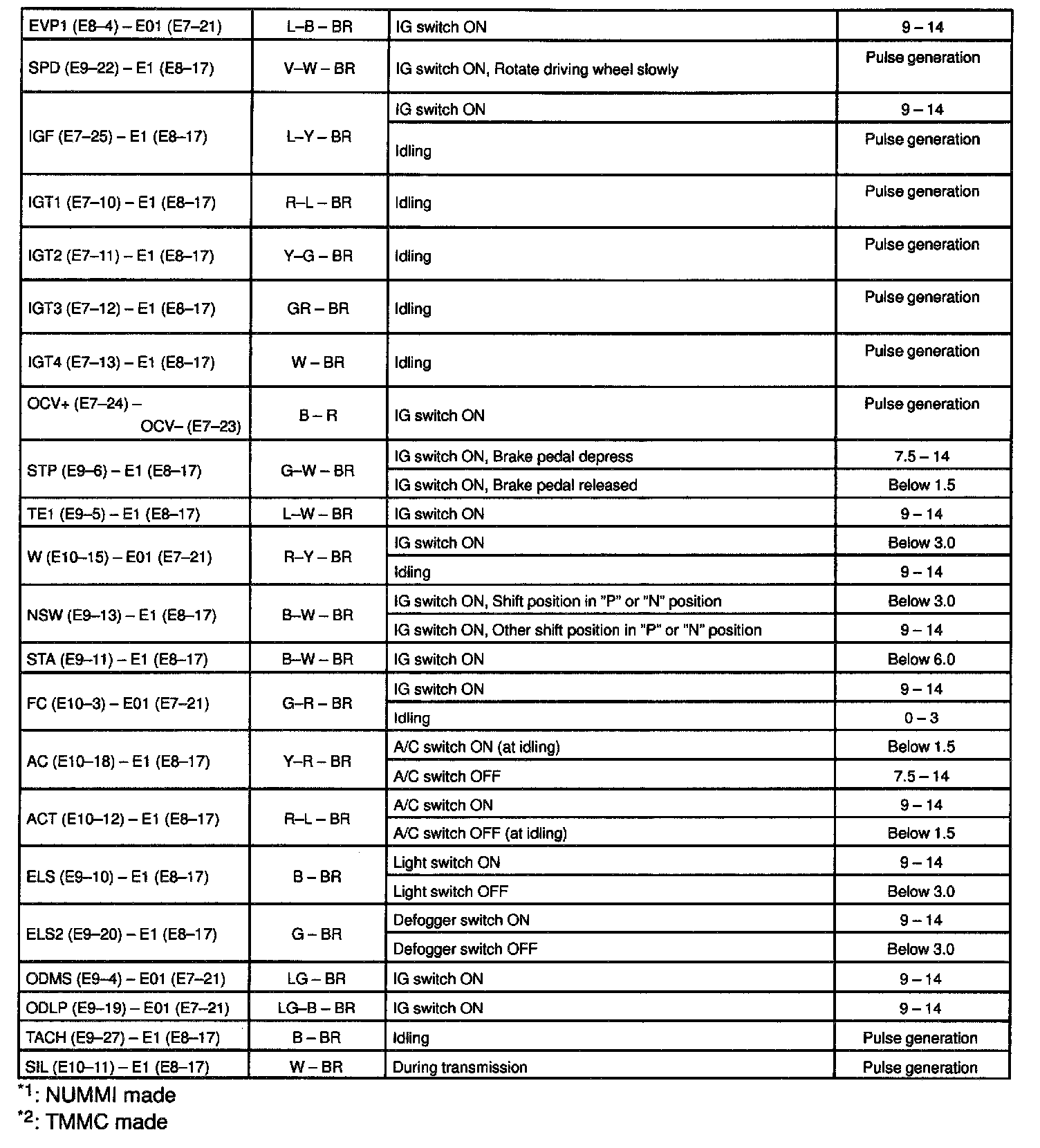

M/T And 3 A/T - ECM - Pin-outs (Part 2):

4A/T - ECM - Connector View:

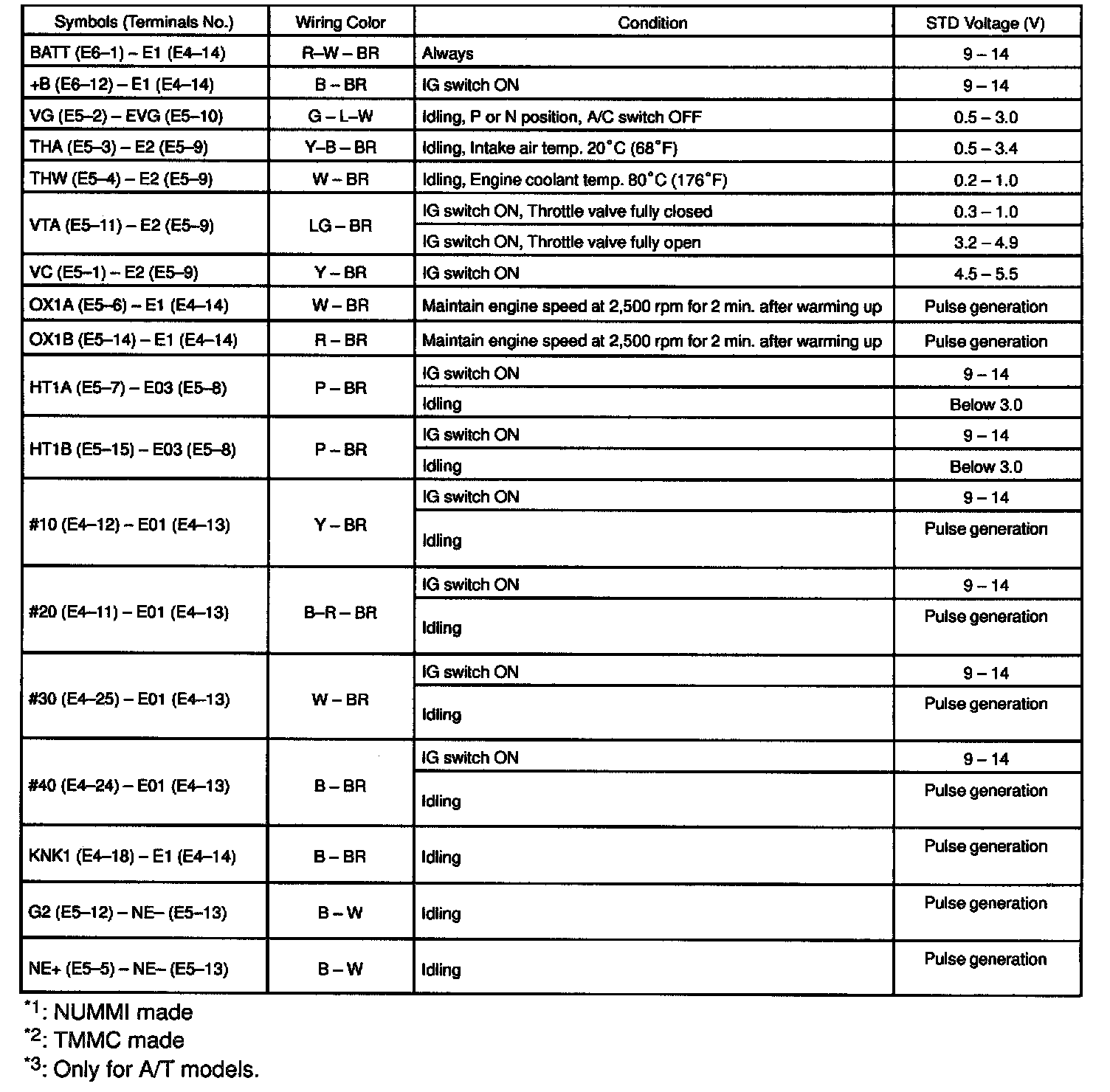

4A/T - ECM - Pin-outs (Part 1):

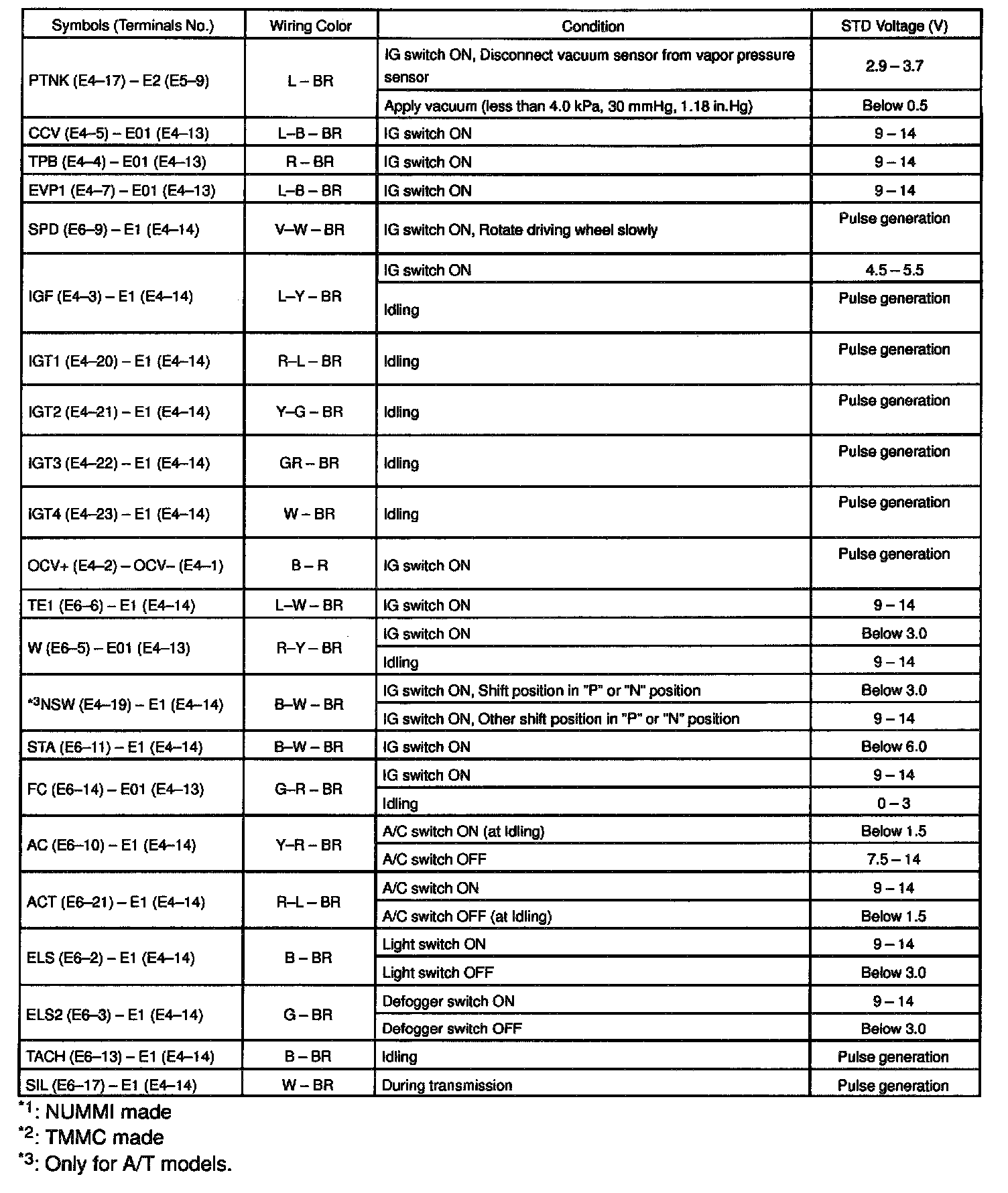

4A/T - ECM - Pin-outs (Part 2):
