Trailing Arm
Trailing Arm

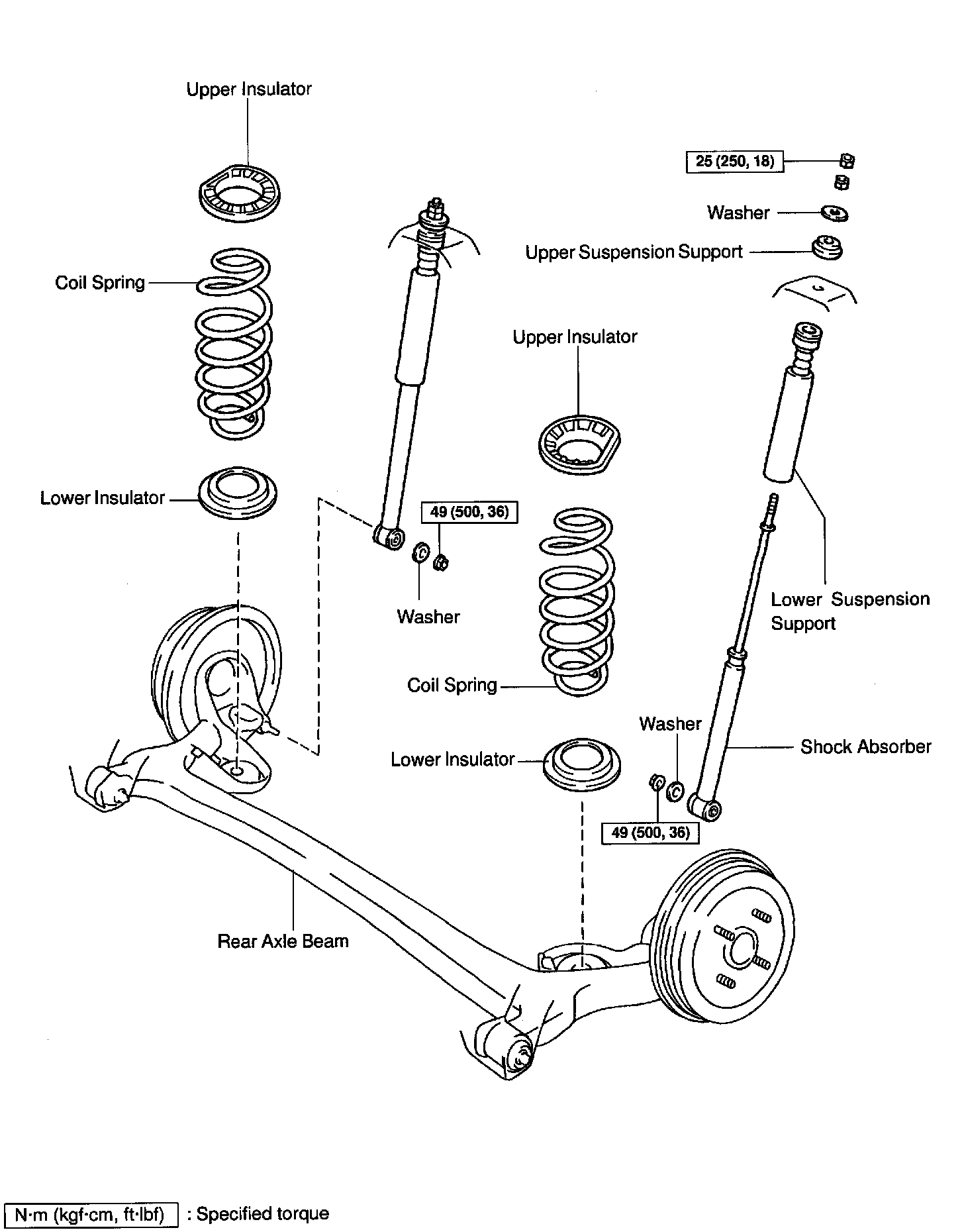

Part 1 Of 2:
Part 2 Of 2:
COIL SPRING AND REAR SHOCK ABSORBER REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
