General Torque Specifications

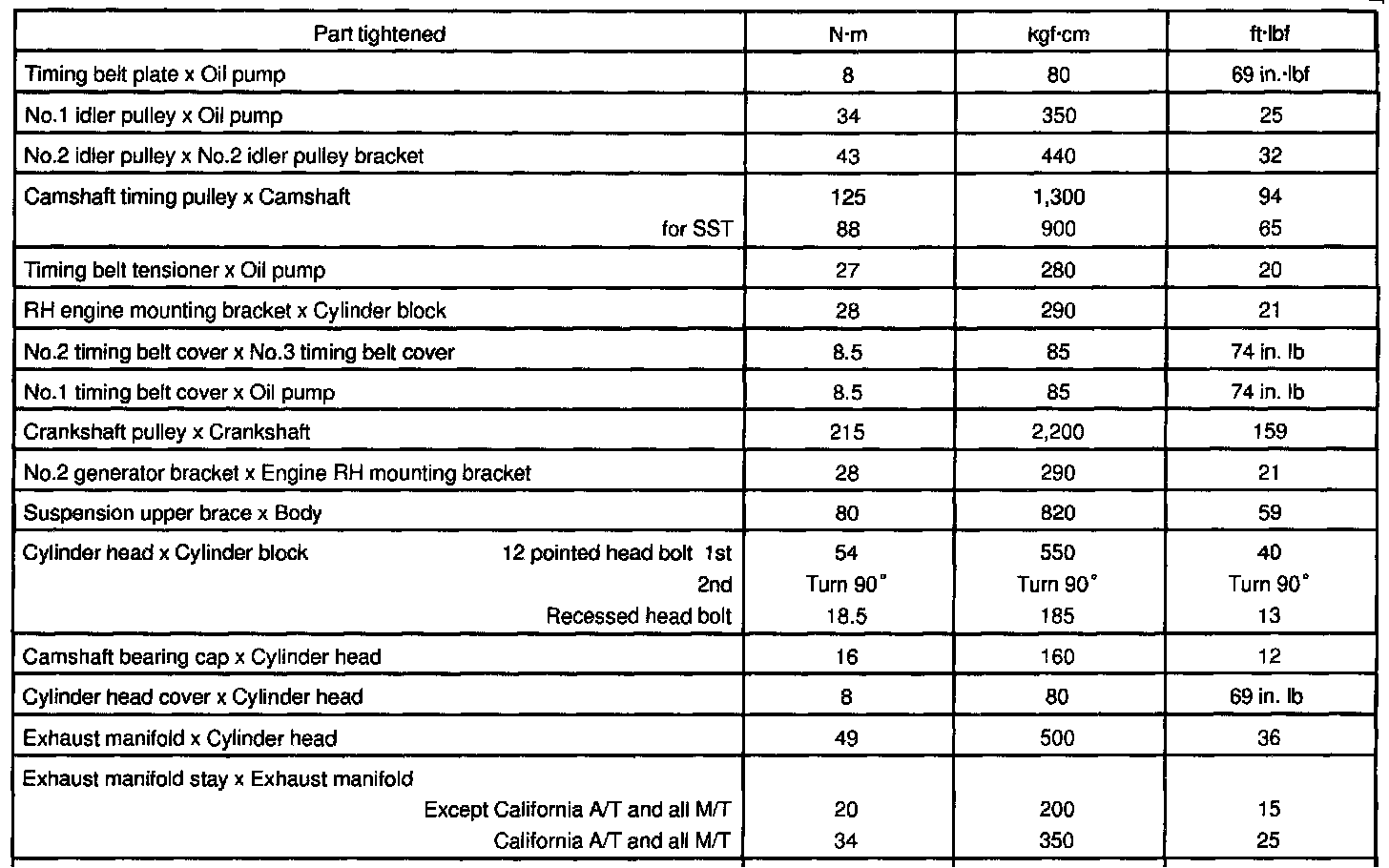

1MZ-FE Engine Torque:

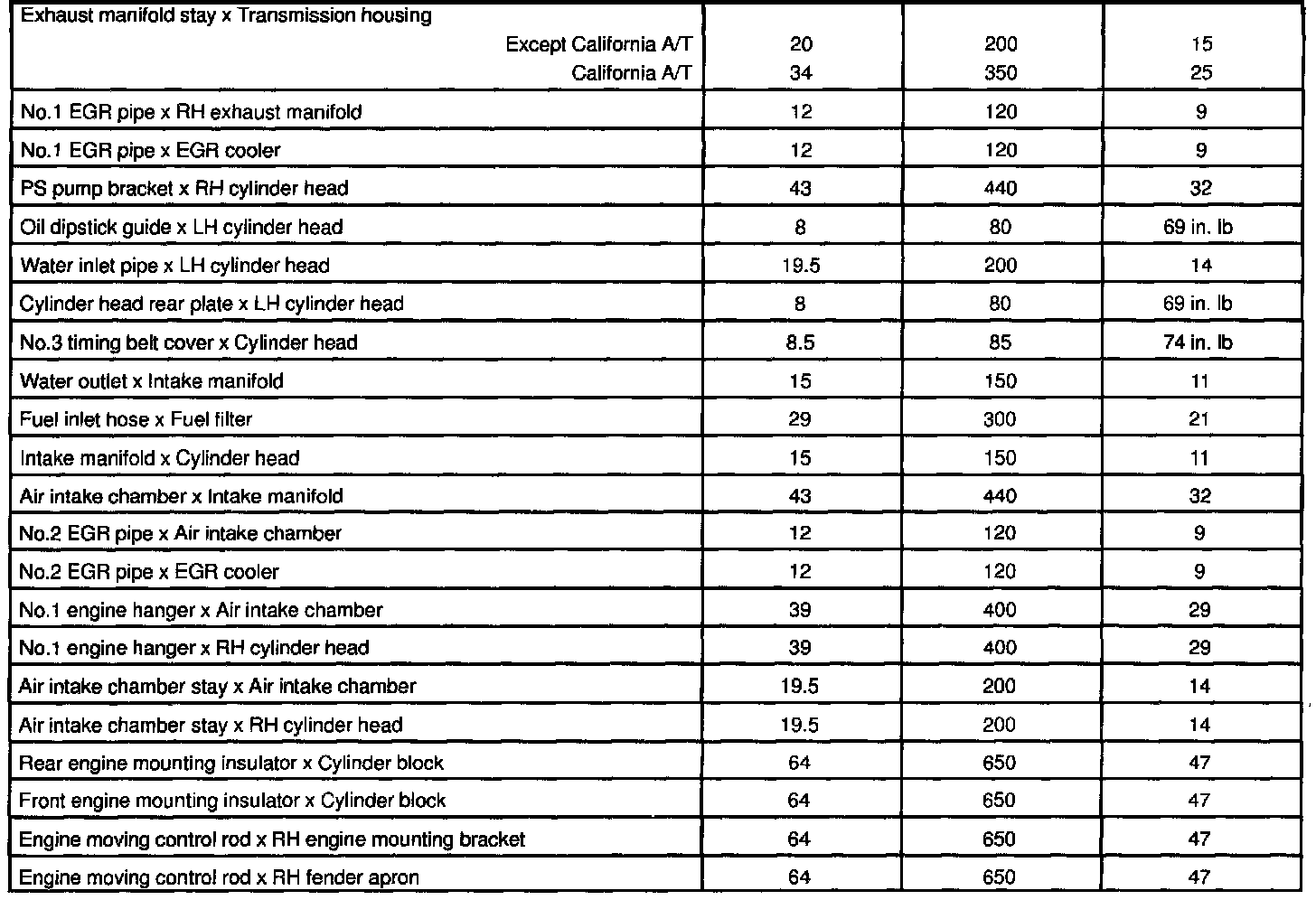

1MZ-FE Engine Torque Cont.:

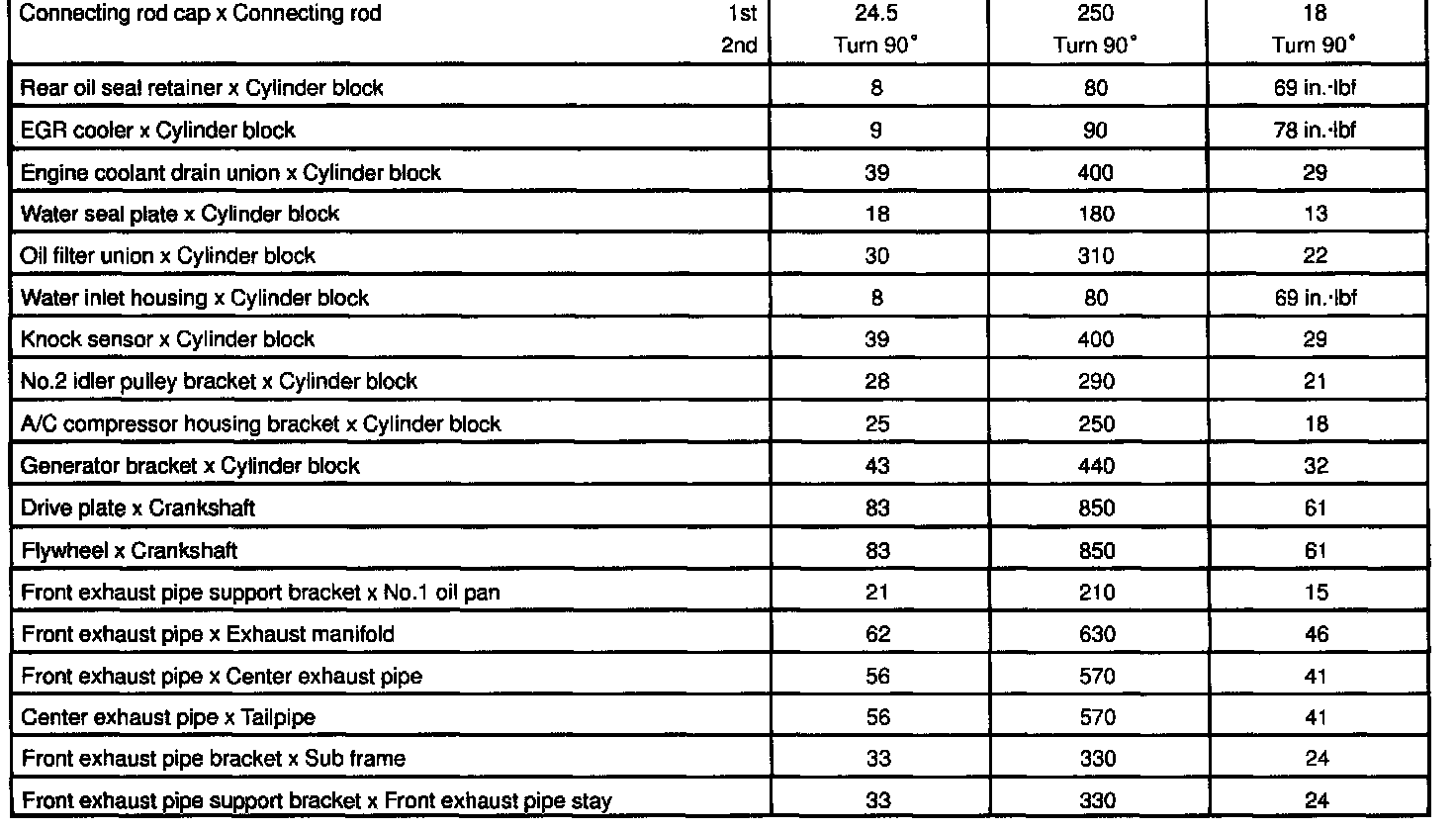

1MZ-FE Engine Torque Cont.:

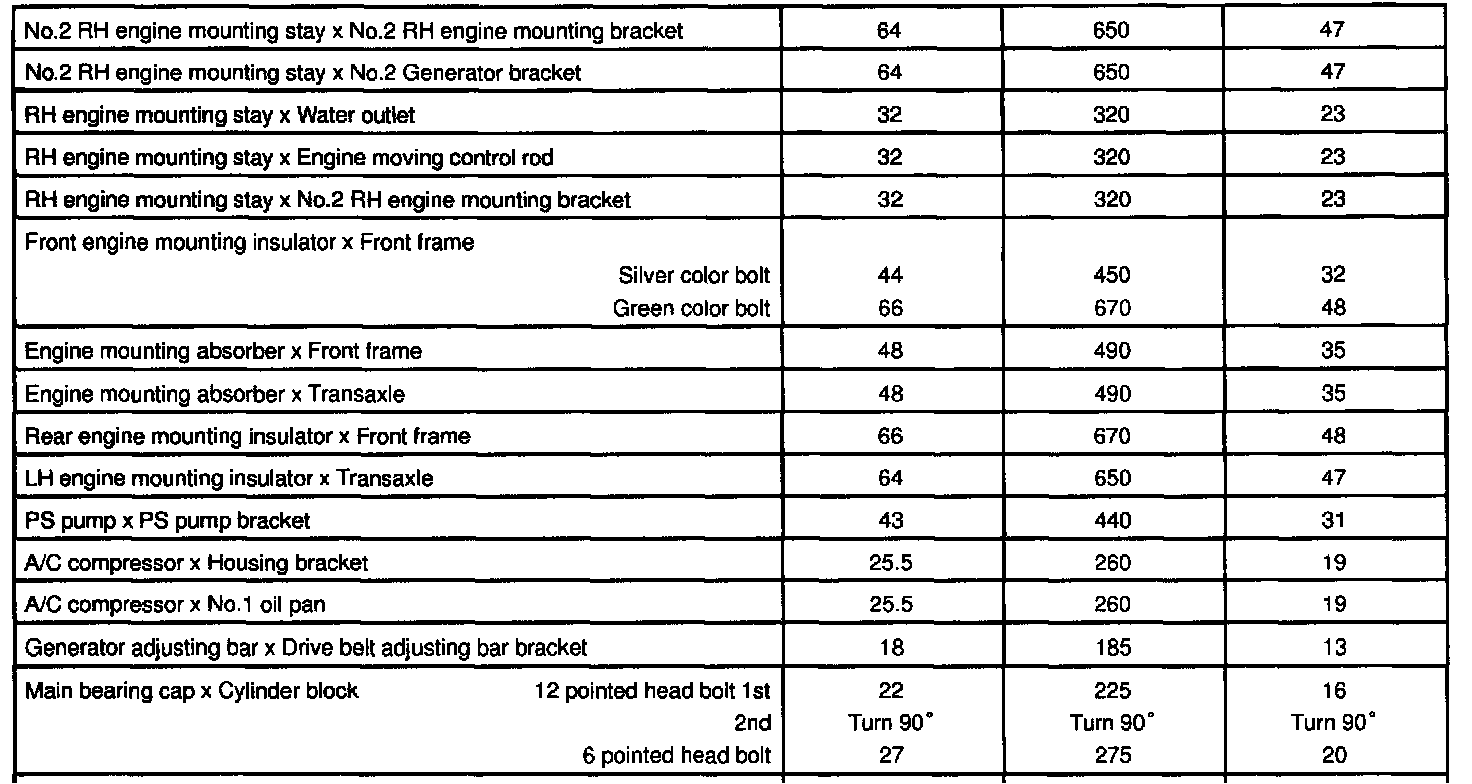

1MZ-FE Engine Torque Cont.:
