Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Control Module
>>
Locations
>>
Except California Models
Except California Models

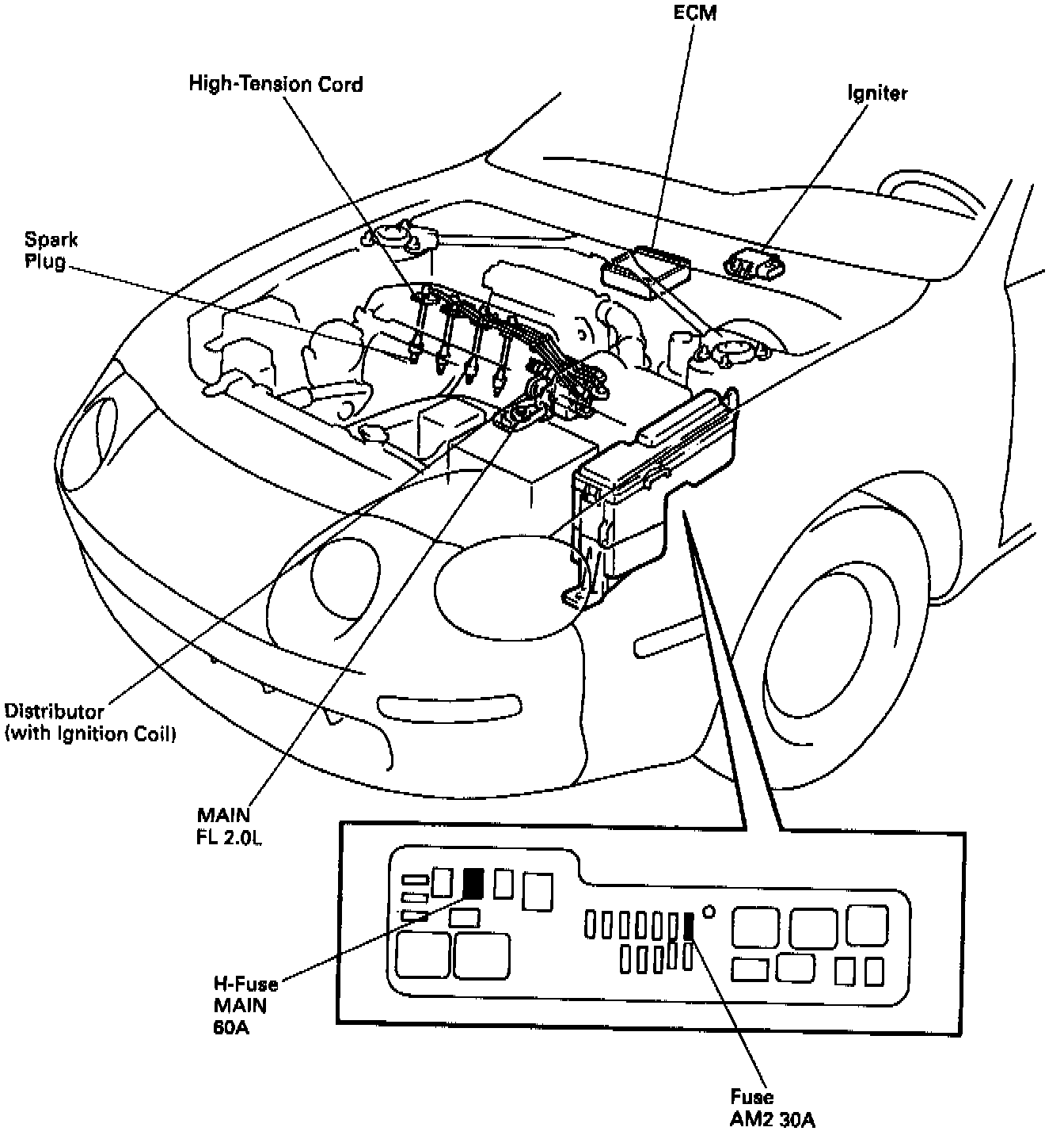

Ignition System Components For The 5S-FE (Federal models):
