Home >> Toyota >> 1994 >> Celica L4-107.5 1762cc 1.8L DOHC (7A-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> With M/T

With M/T

Connector E5 (Part 1):

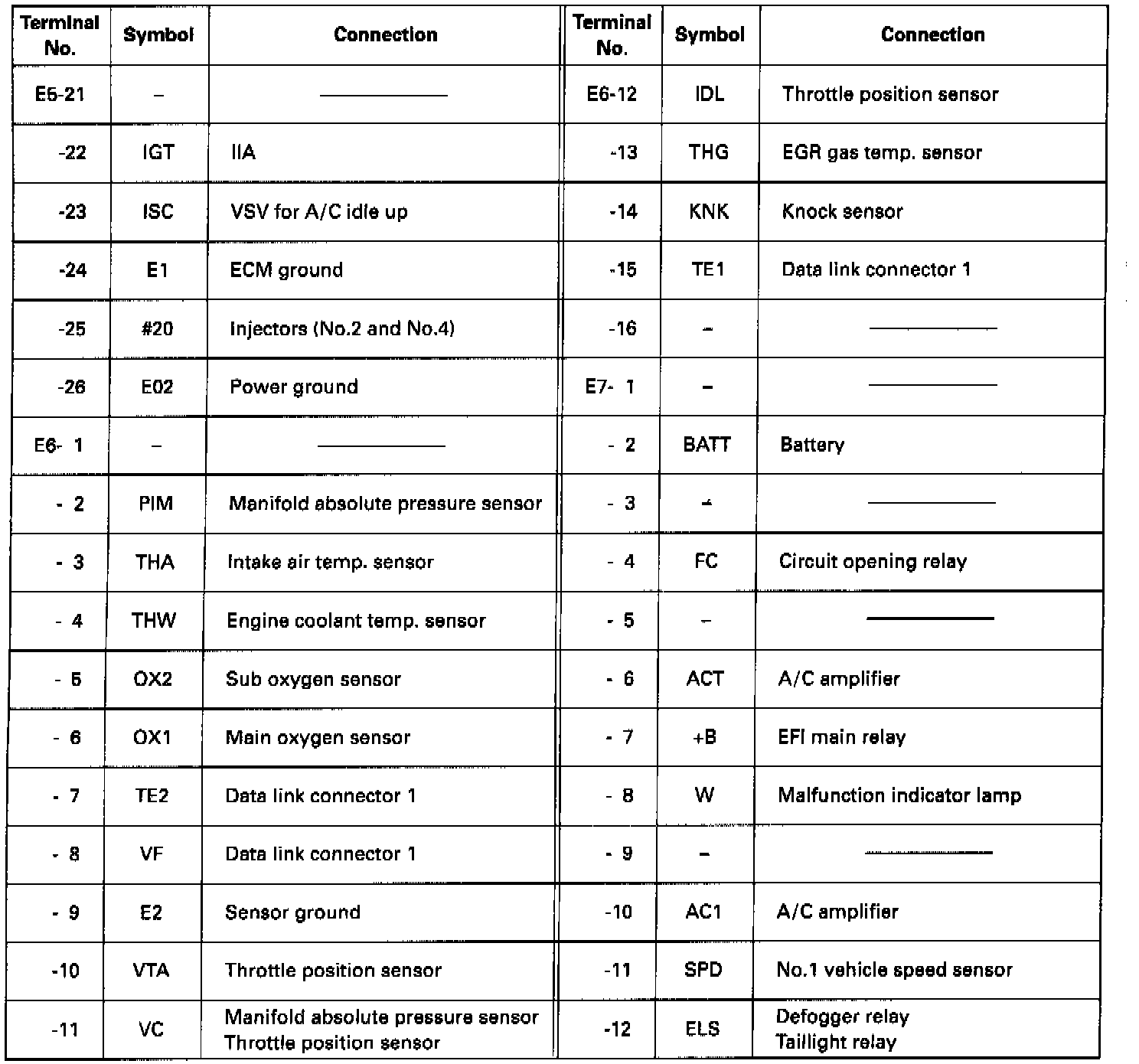

Connectors E5 (Part 2), E6 And E7:
