Home >> Toyota >> 1992 >> Cressida L6-3.0L DOHC (7M-GE) >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Locations

Cruise Control Module: Locations

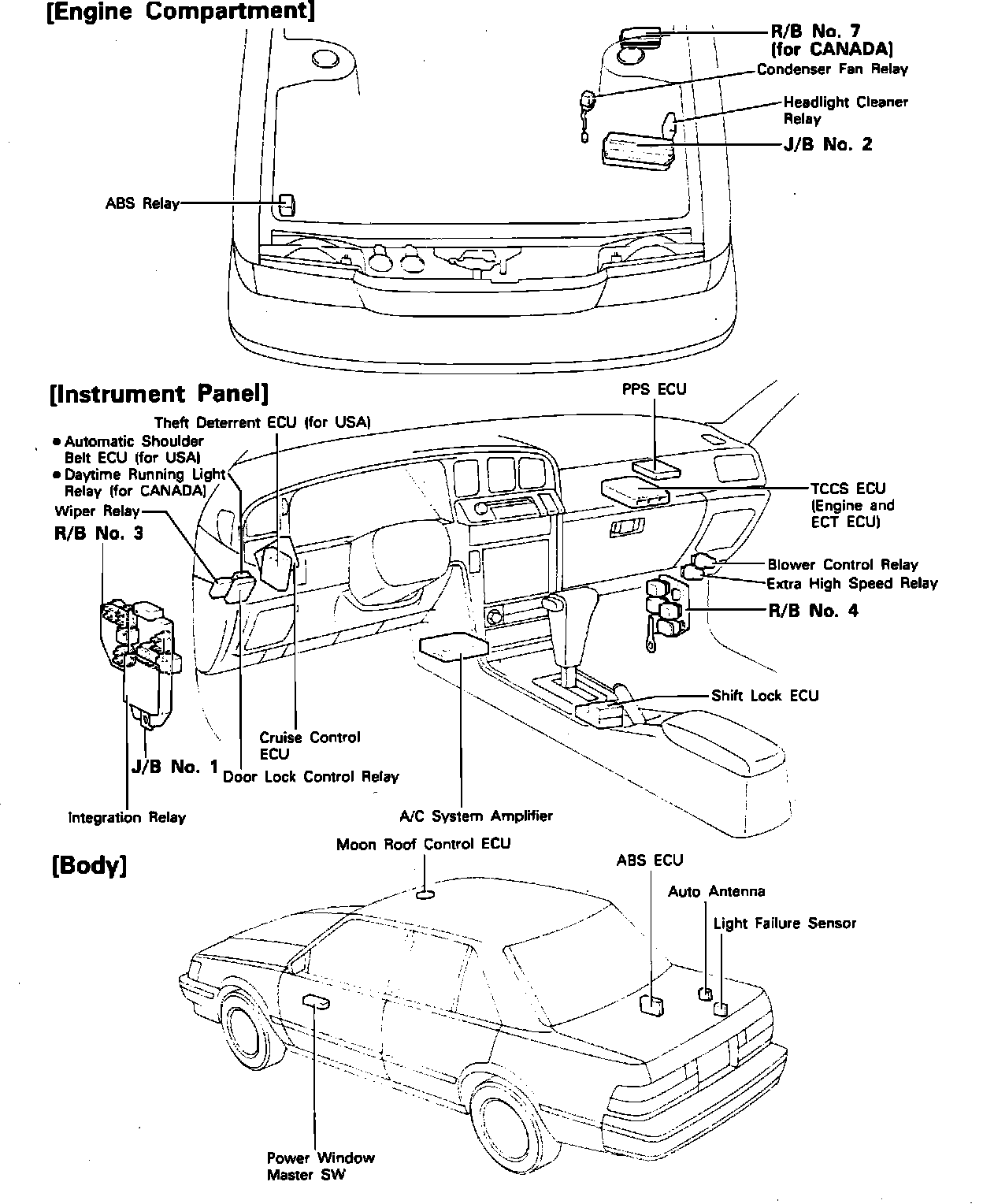

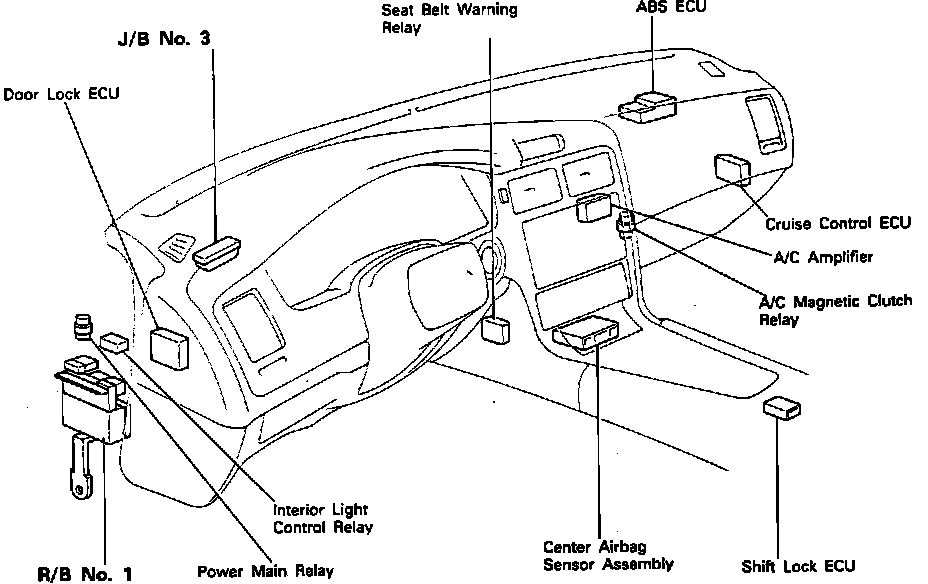

Relay & Electronic Control Unit Locations:





I/P Electronic Control Unit & Relays:





Behind LH Side Of I/P
