Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Service Specifications
Service Specifications

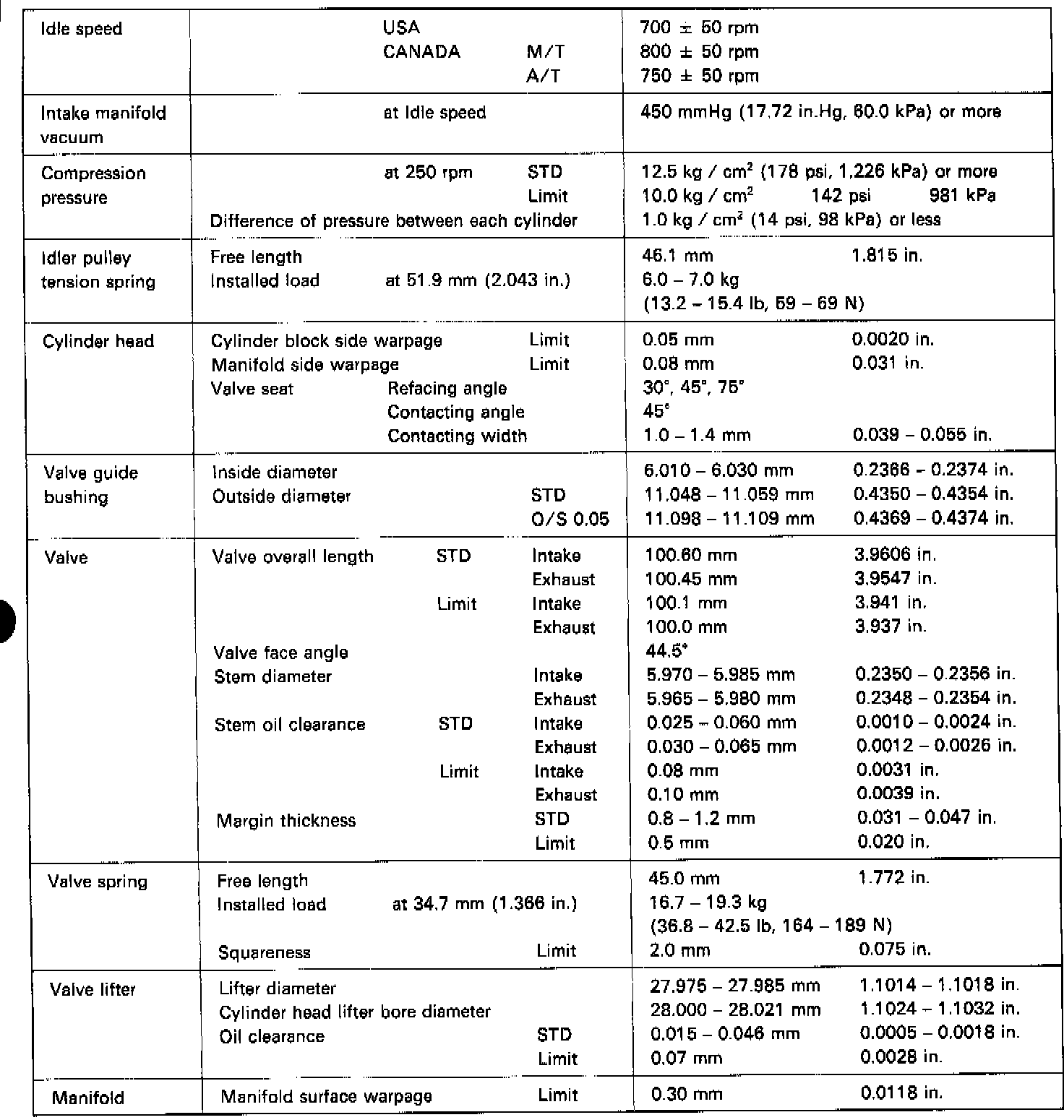

5S-FE Mechanical Specifications (1 Of 3):

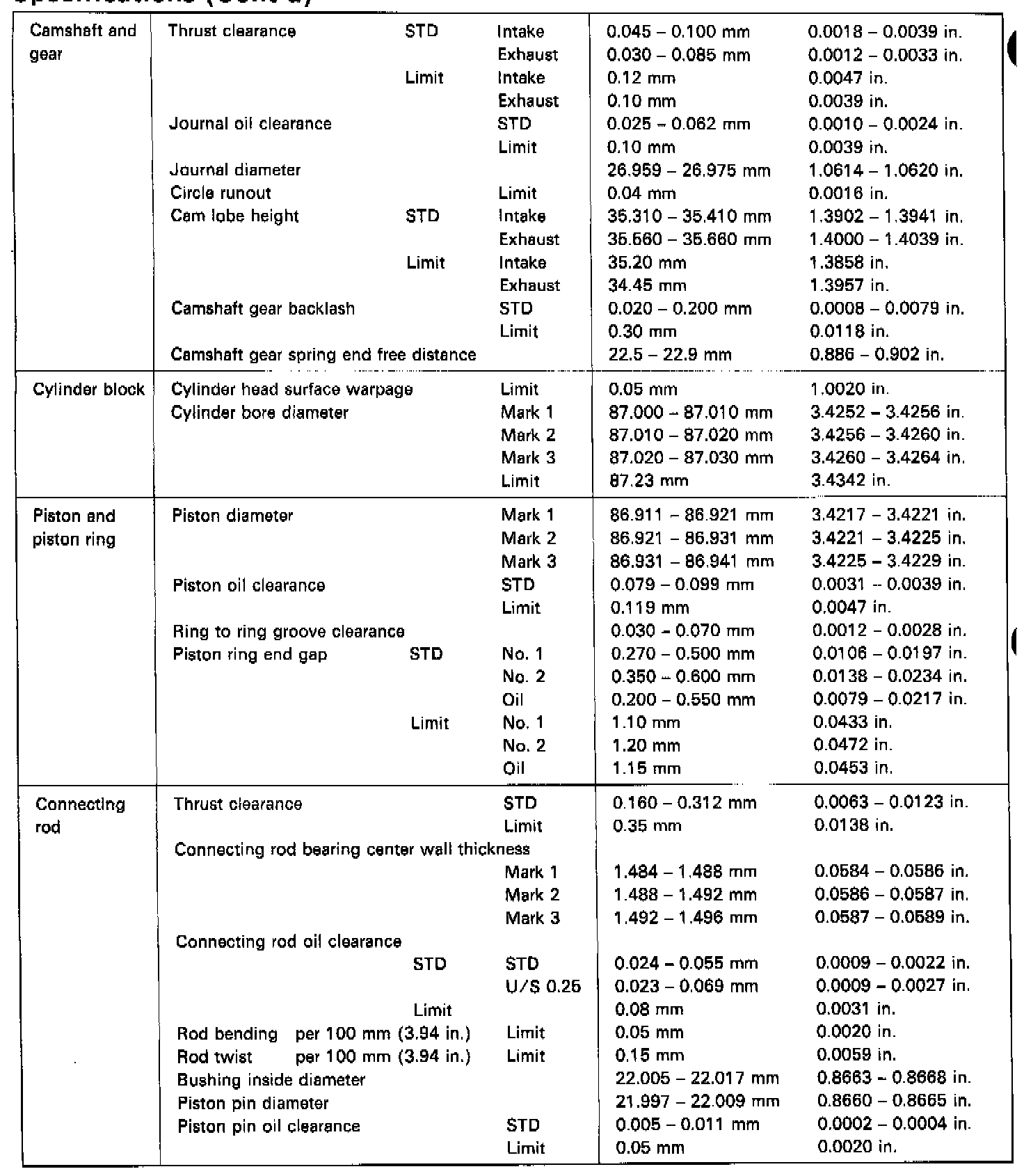

5S-FE Mechanical Specifications (2 Of 3):

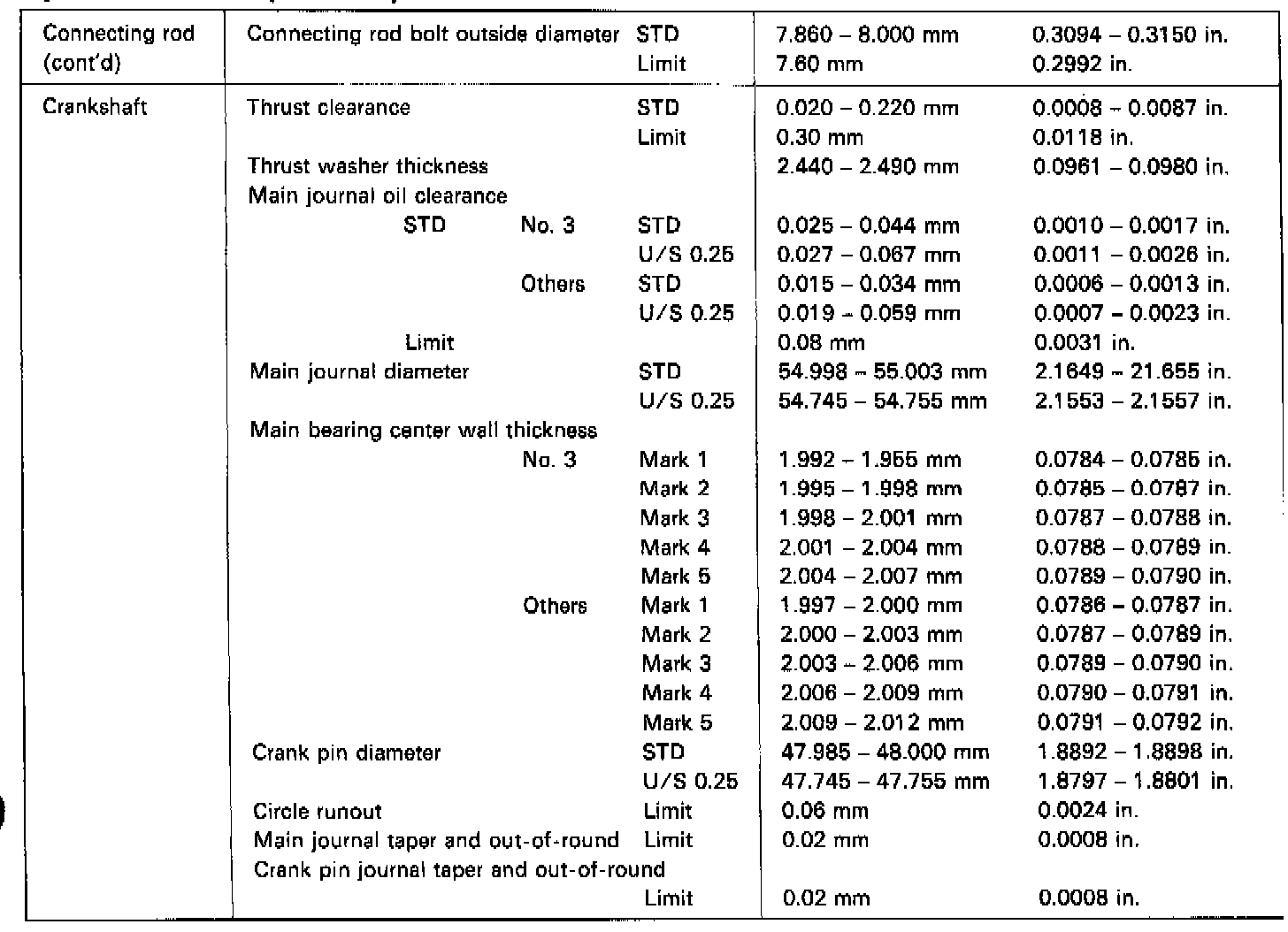

5S-FE Mechanical Specifications (3 Of 3):
Mechanical Specifications
