Toyota
>>
1990
>>
Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Component Pin-Out Locations
Component Pin-Out Locations

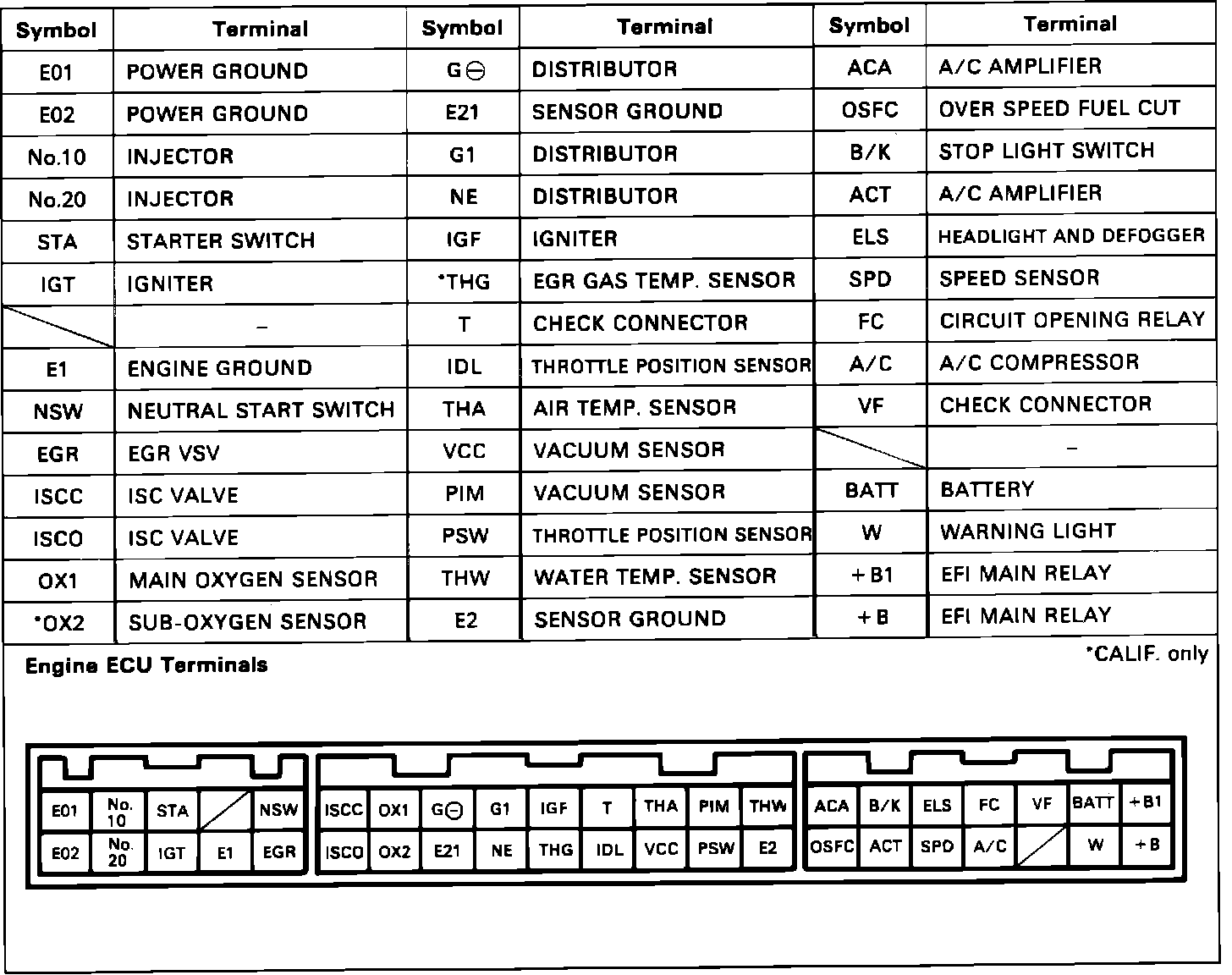

ECU Terminal Pin-outs (w/o Electronic Controlled Transaxle):

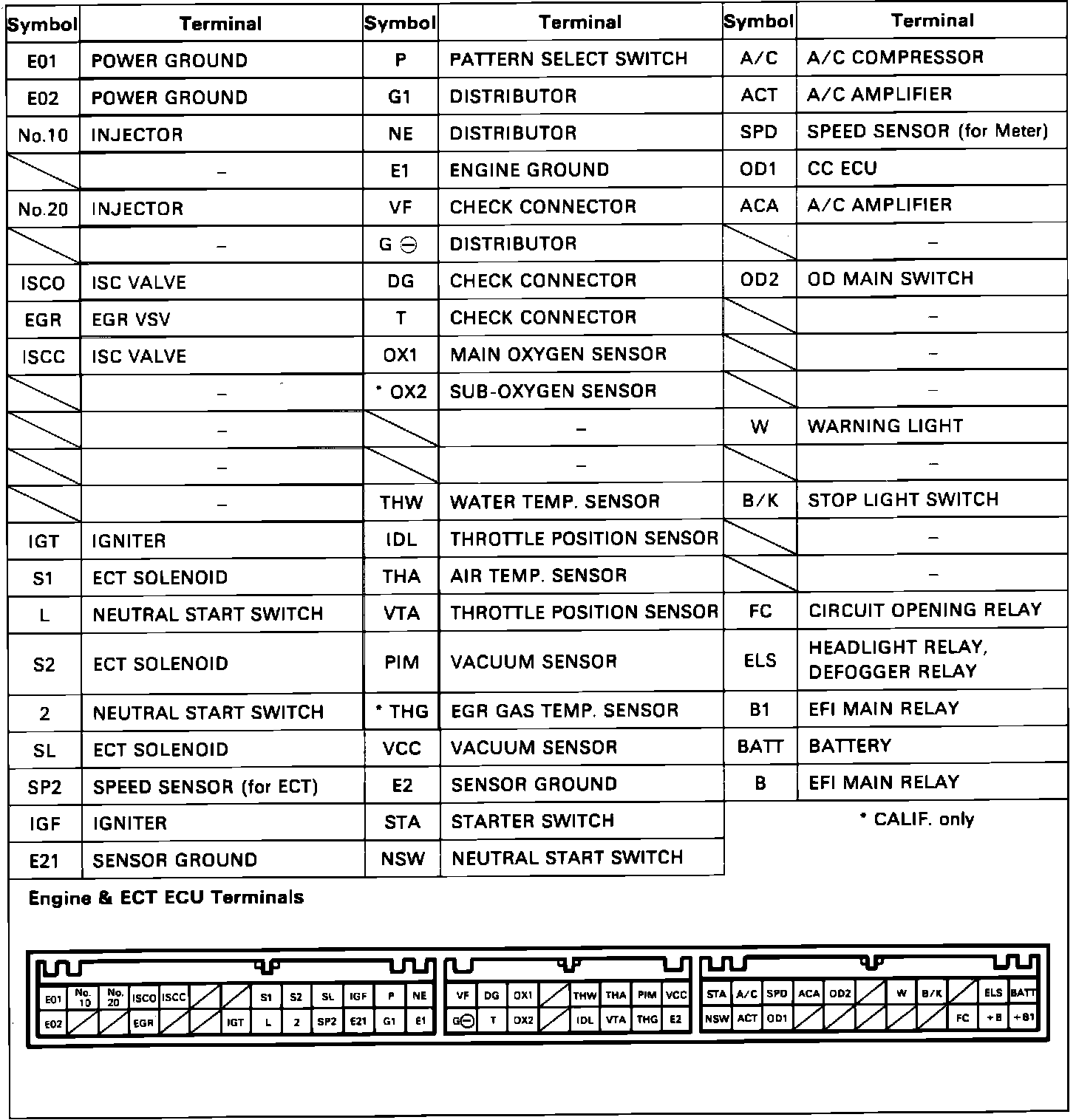

ECU Terminal Pin-Outs (w/ Electronic Controlled Transaxle):
