Ignition Switch Power Input

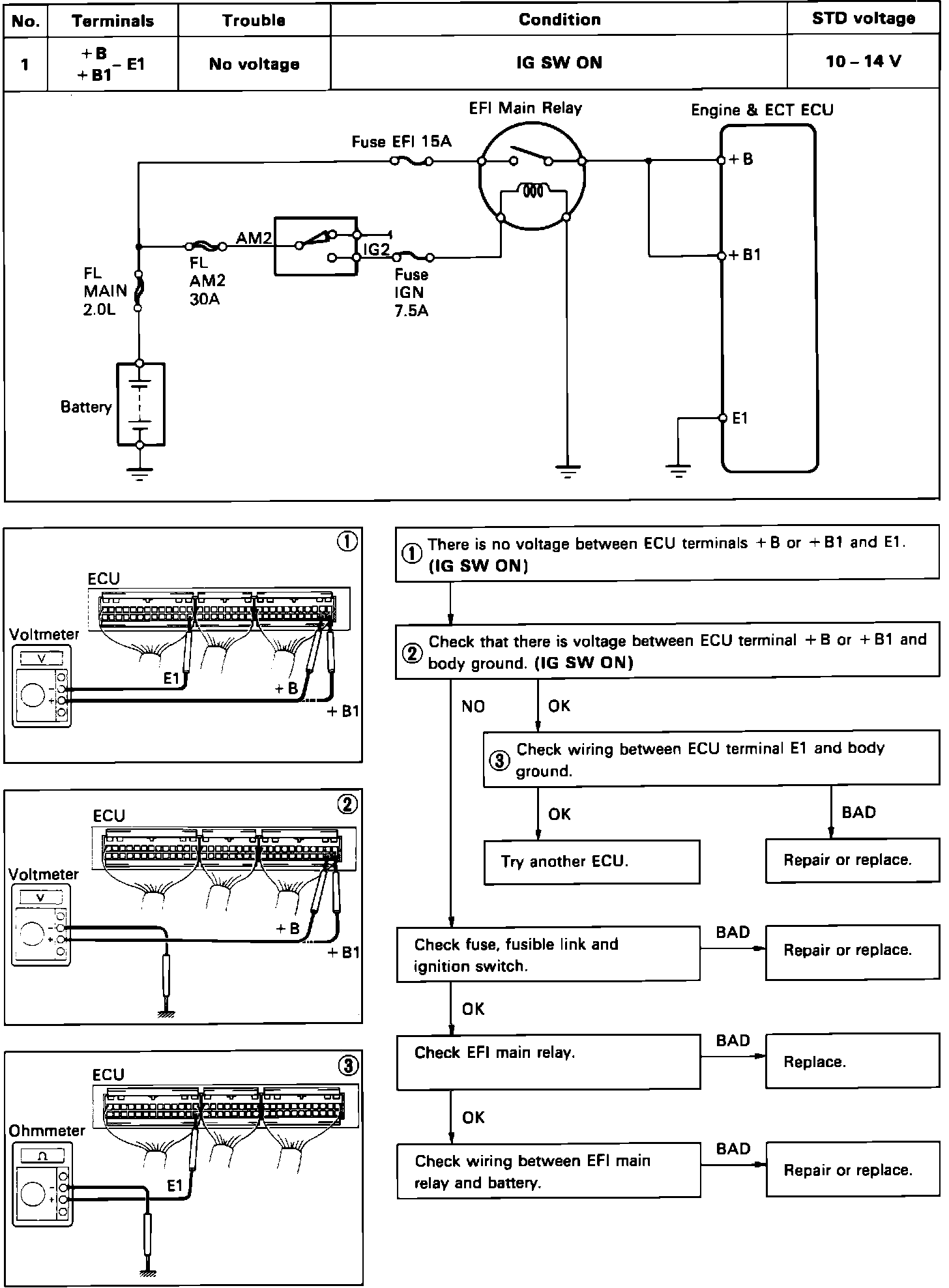

EFI Main Relay Circuit Test (w/o ECT):

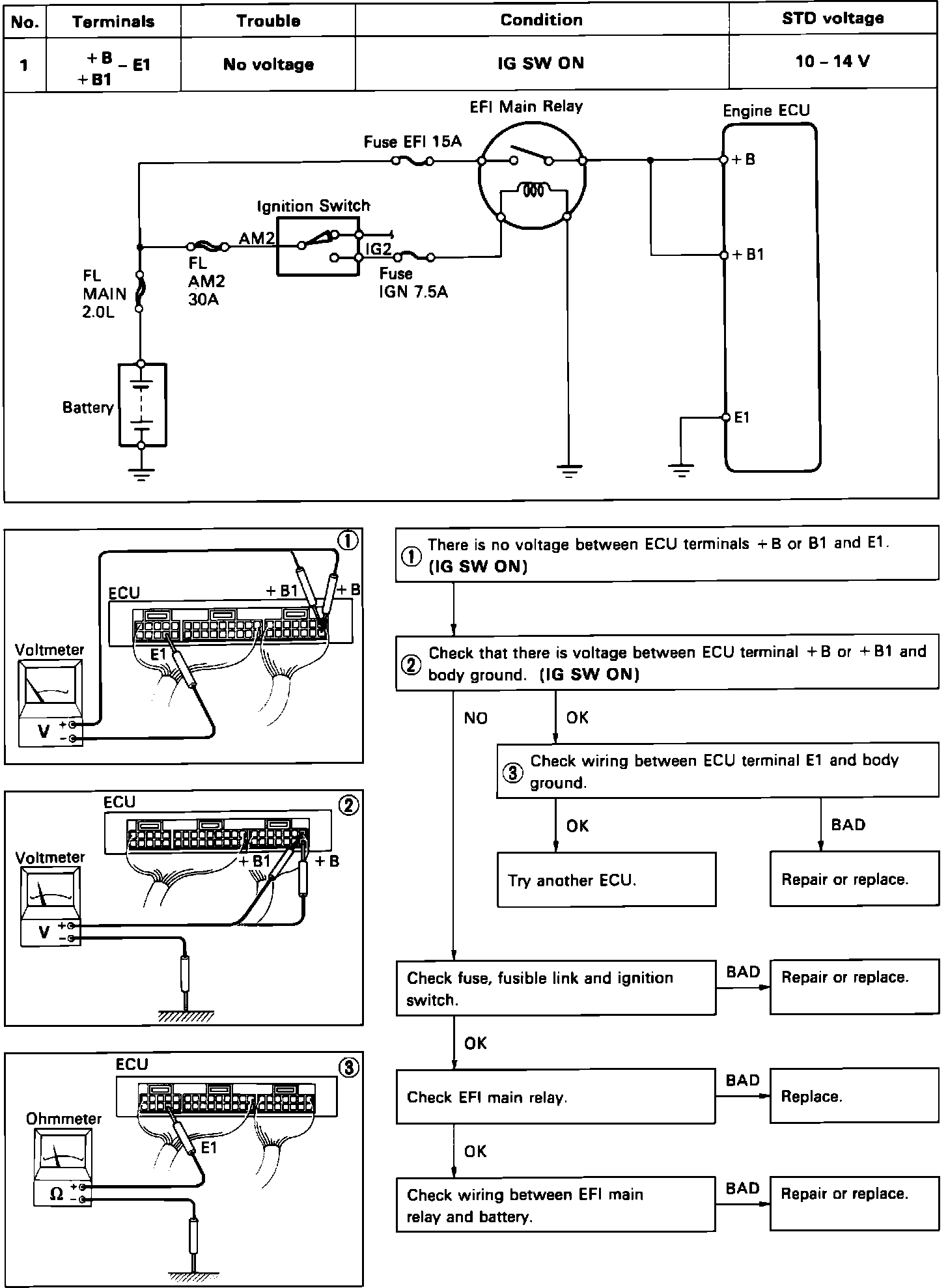

EFI Main Relay Circuit Test (w/ ECT):
