Torque Specifications

Torque Chart 4A-GE:

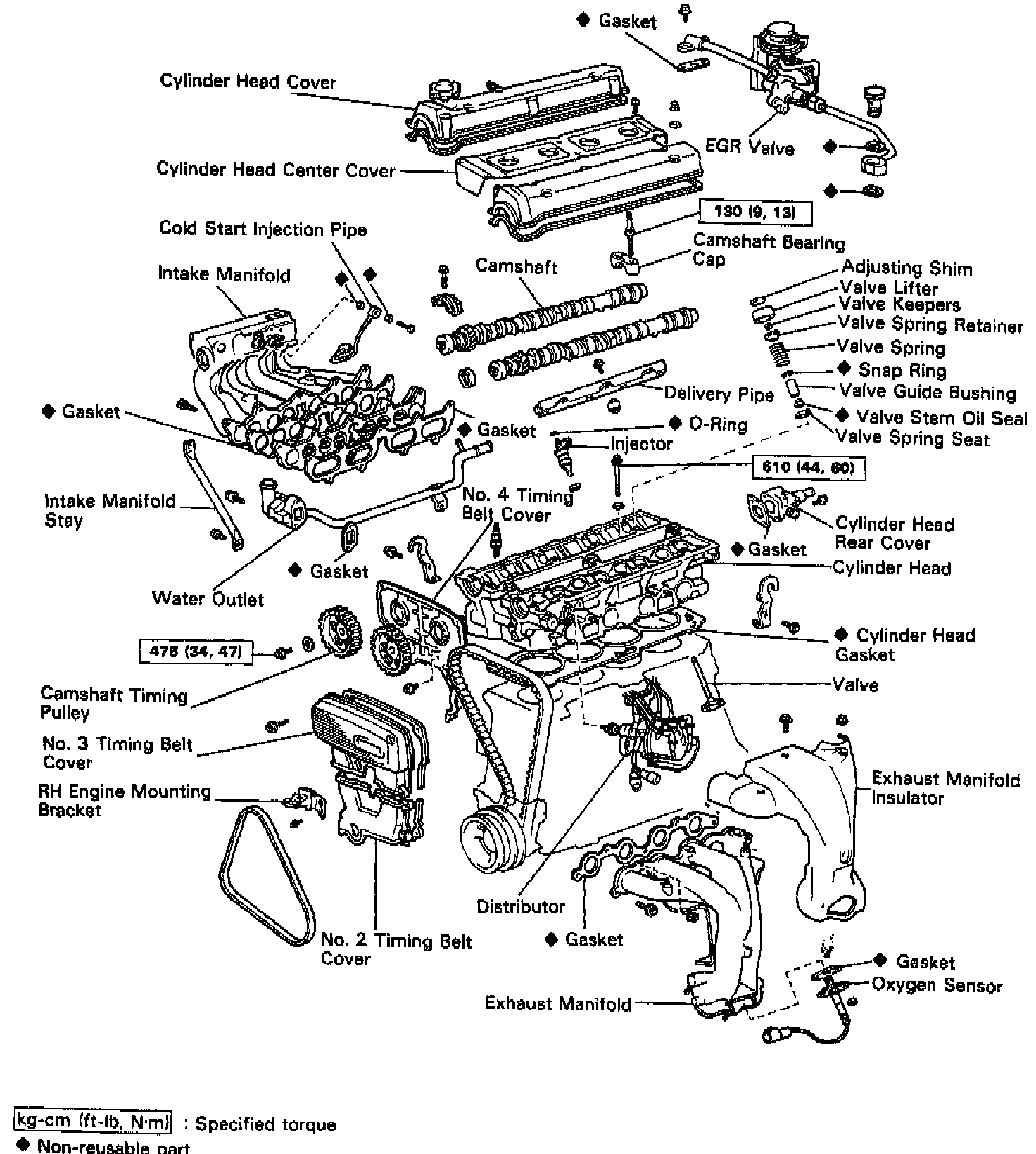

Upper Engine Torque Values 4A-GE:

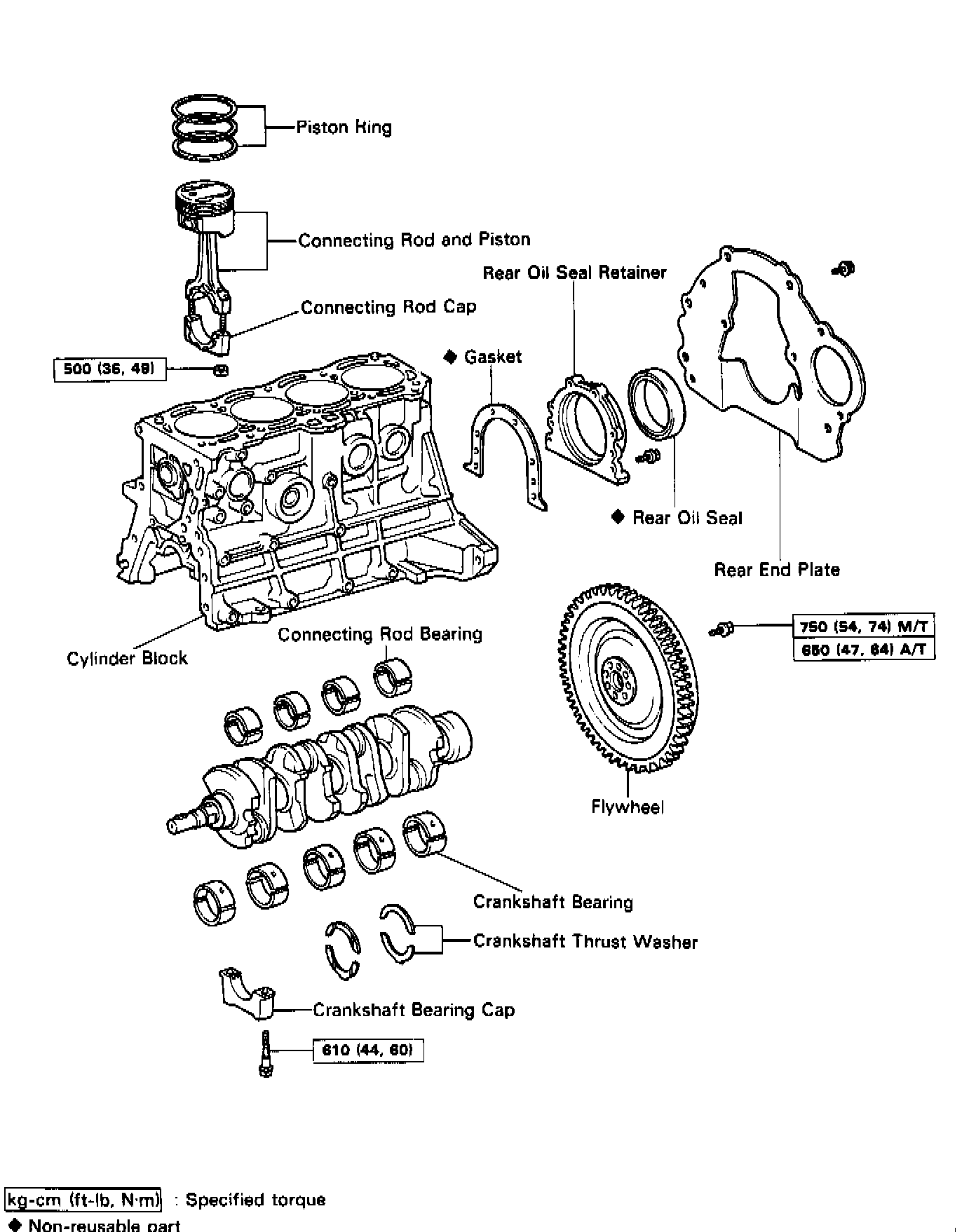

Lower Engine Torque Values 4A-GE:






Head Loosening Sequence 4A-GE:






Main Bearing Torque Sequence:






Head Tightening Sequence 4A-GE:
