Main Relay (Computer/Fuel System): Locations

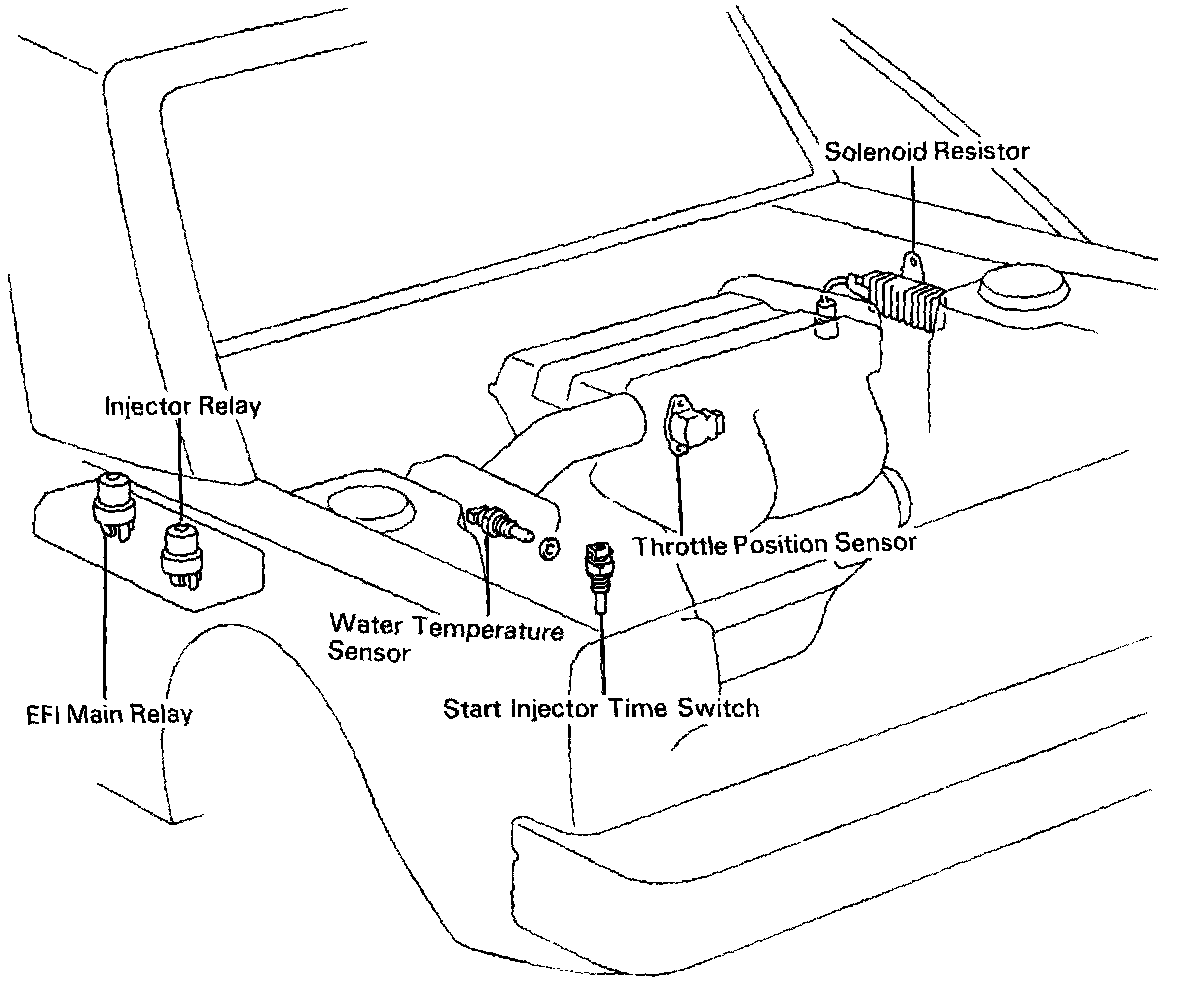

EFI Main Relay is located on LH side of engine compartment.
