MR2 L4-1587cc 1.6L DOHC (4A-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Testing and Inspection
>>

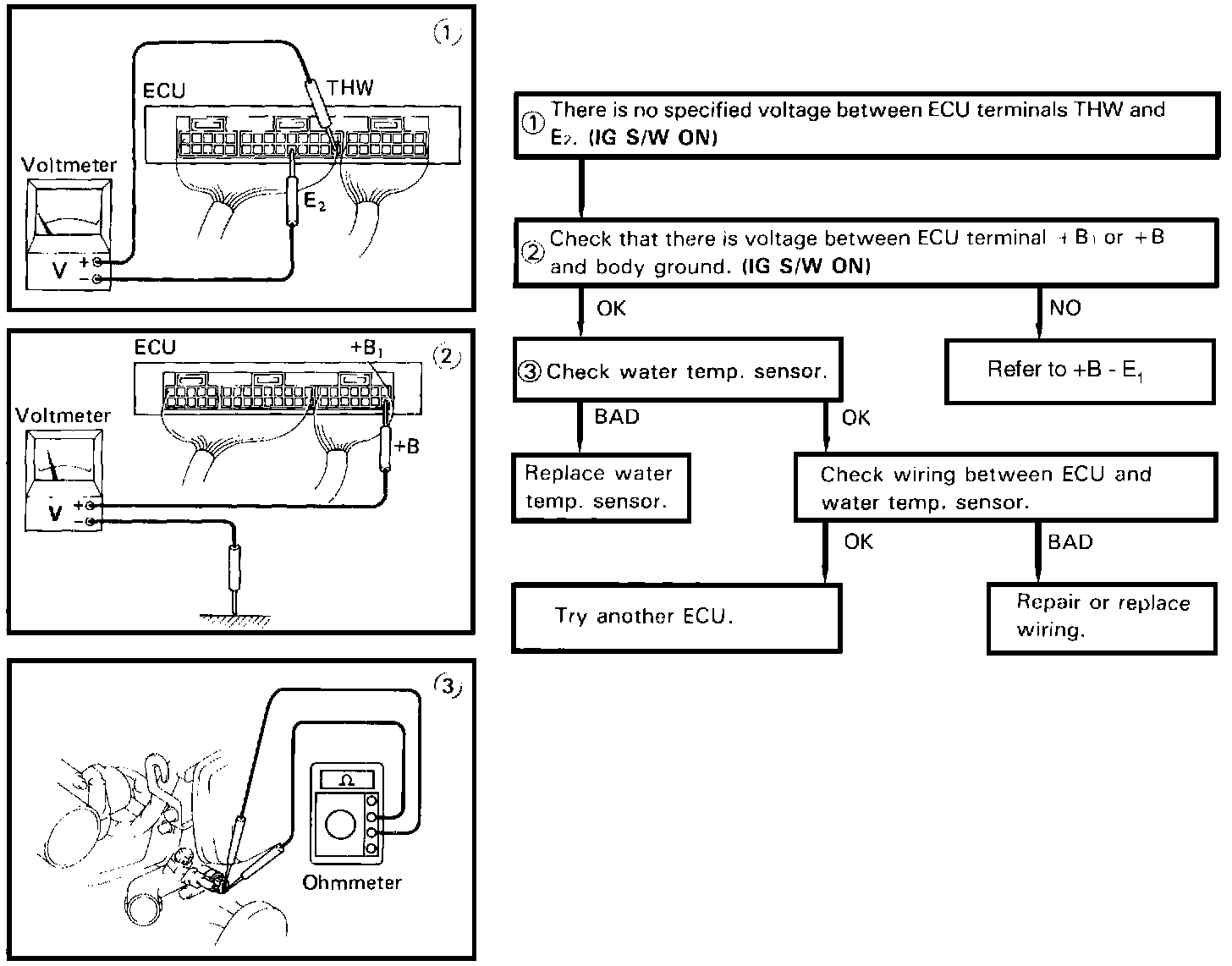

Circuit Test
Circuit Test
No. 6
Test No. 6 Summary:
THW - E2:
