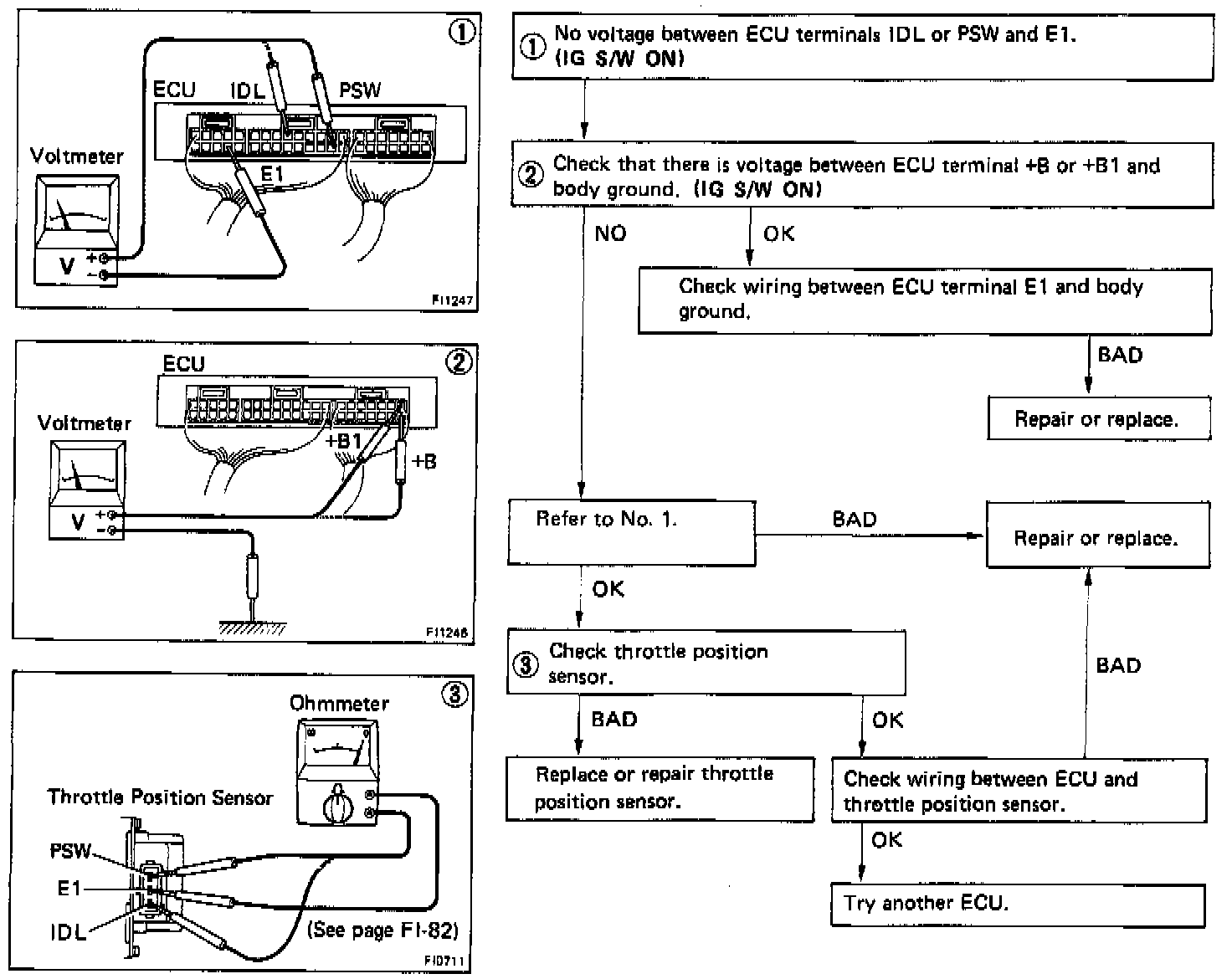

Throttle Position Sensor: Testing and Inspection

No. 3

Test No. 3 Summary:





IDL - E1, PSW - E1:
