Toyota
>>
1987
>>
Celica L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
A/C Signal
>>
Testing and Inspection

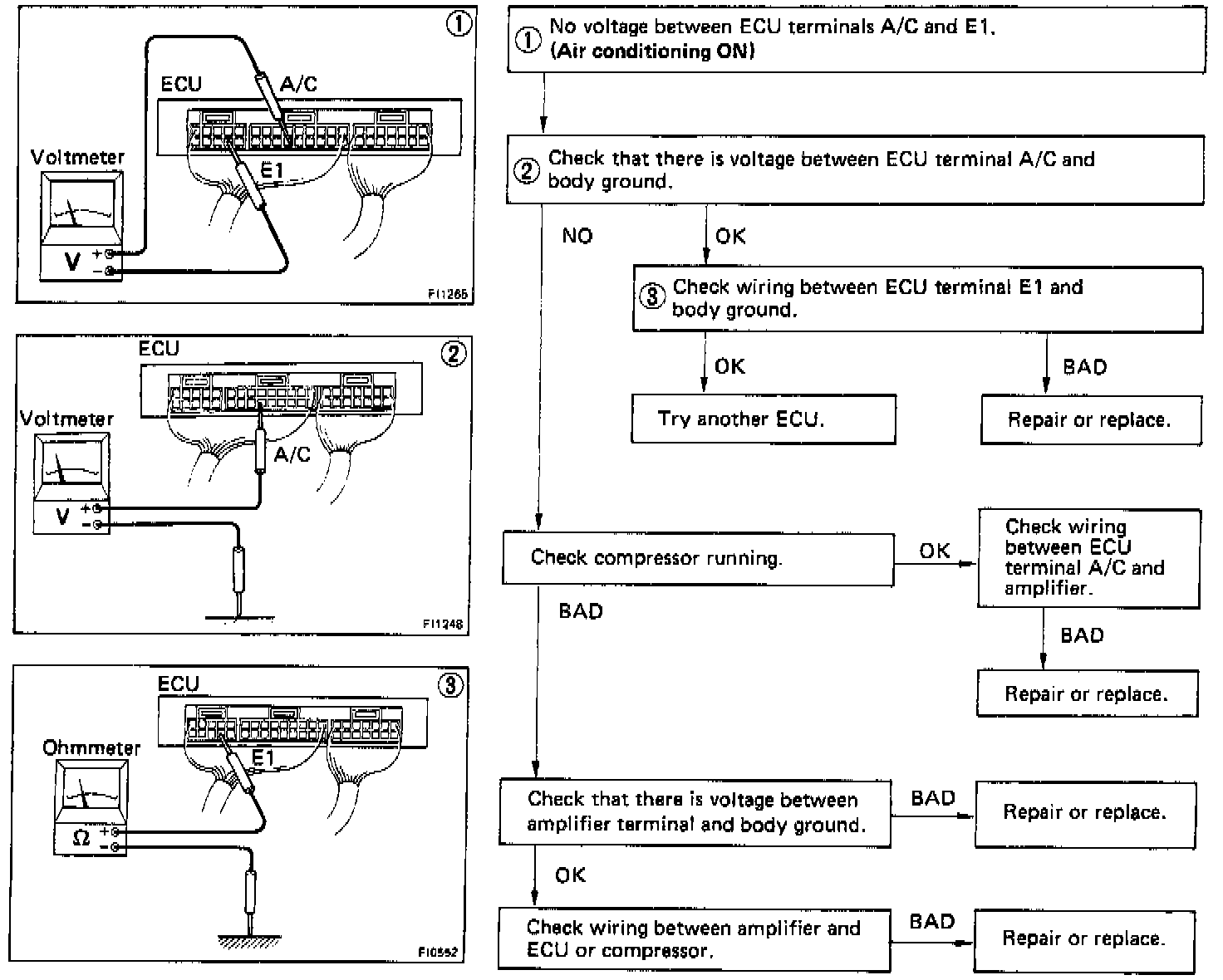

A/C Signal: Testing and Inspection
No. 12
Test No. 12 Summary:
A/C - E1:
