Steering Column
Steering Column

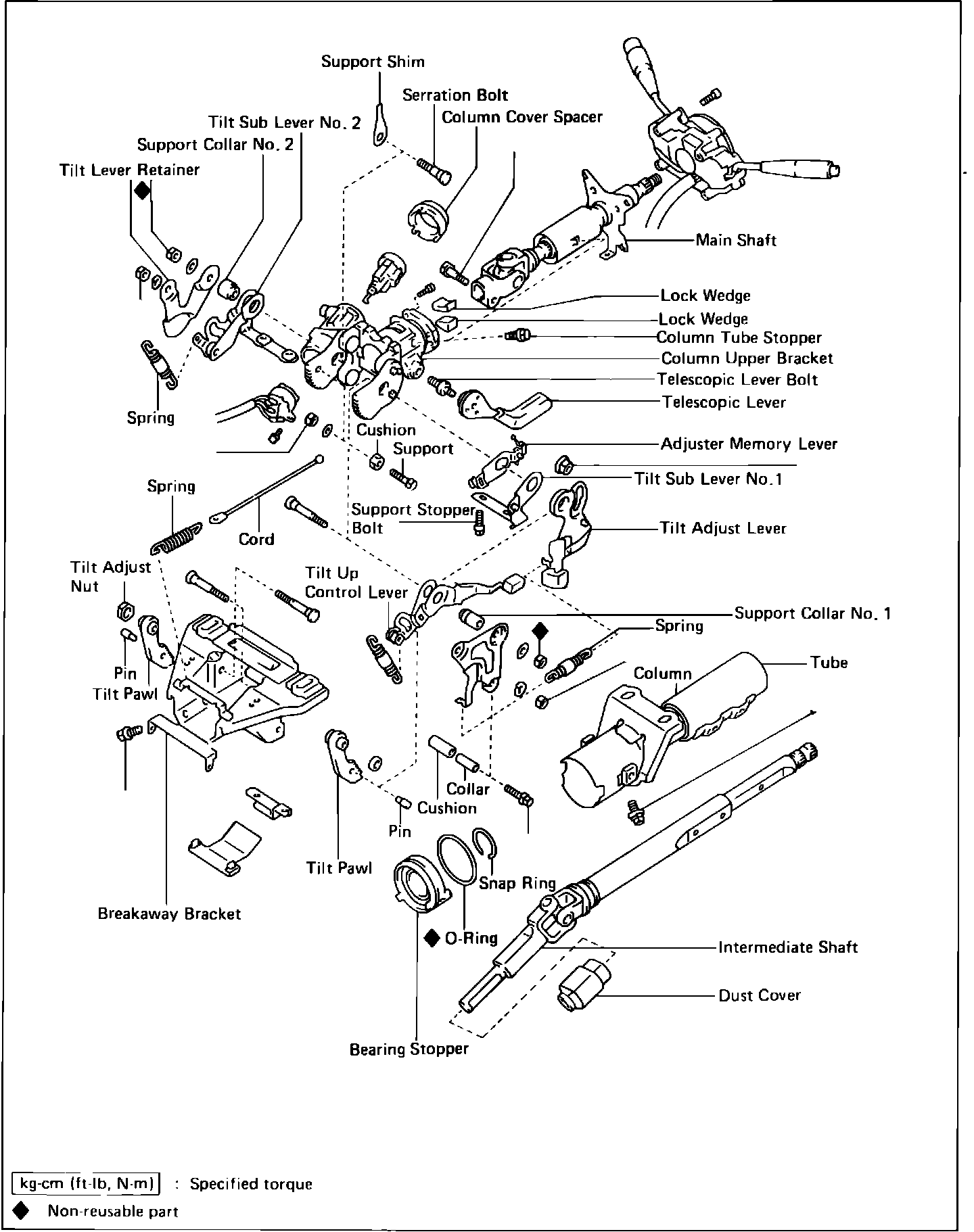

Fig. 6 Exploded view of steering column. 1986-88 Celica & late model 1986-88 Supra with telescopic column:
