Control Module: Locations

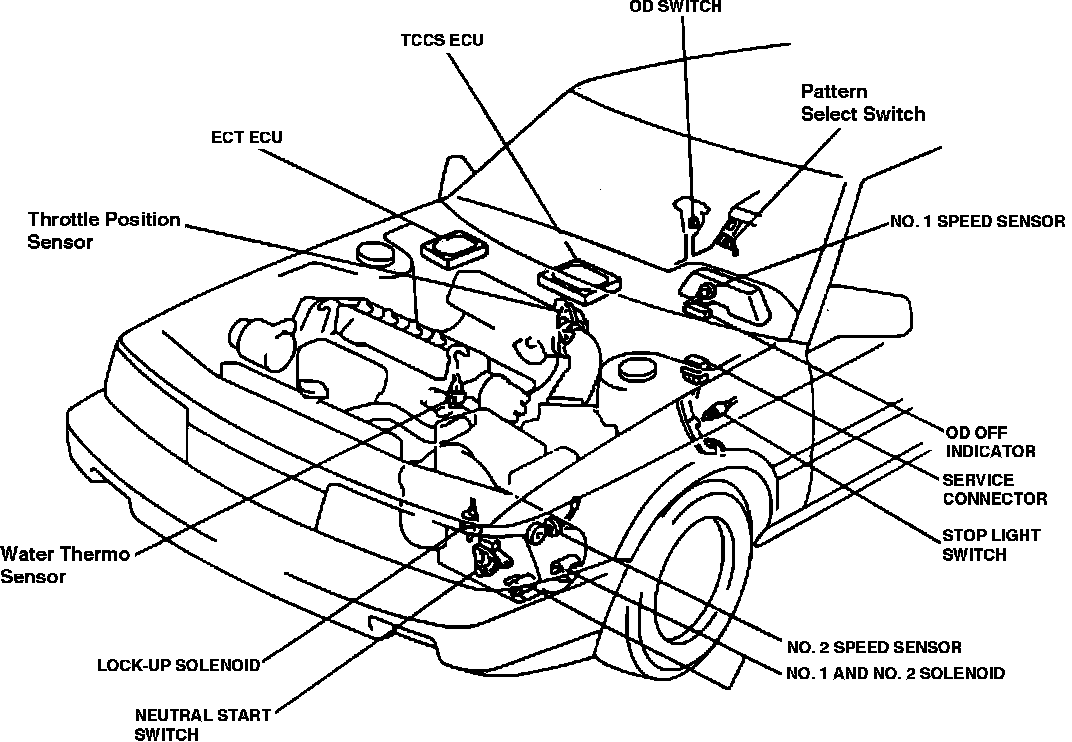

Automatic Transaxle Electronic Control Components.:

Rear RH Side Of Engine Compartment

Applicable to: 1987-88 Camry Exc. 1988 4WD & 2VZ-FE Engine
