Home >> Toyota >> 1987 >> Camry Sedan L4-2.0L (3S-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Testing and Inspection >> Circuit Test

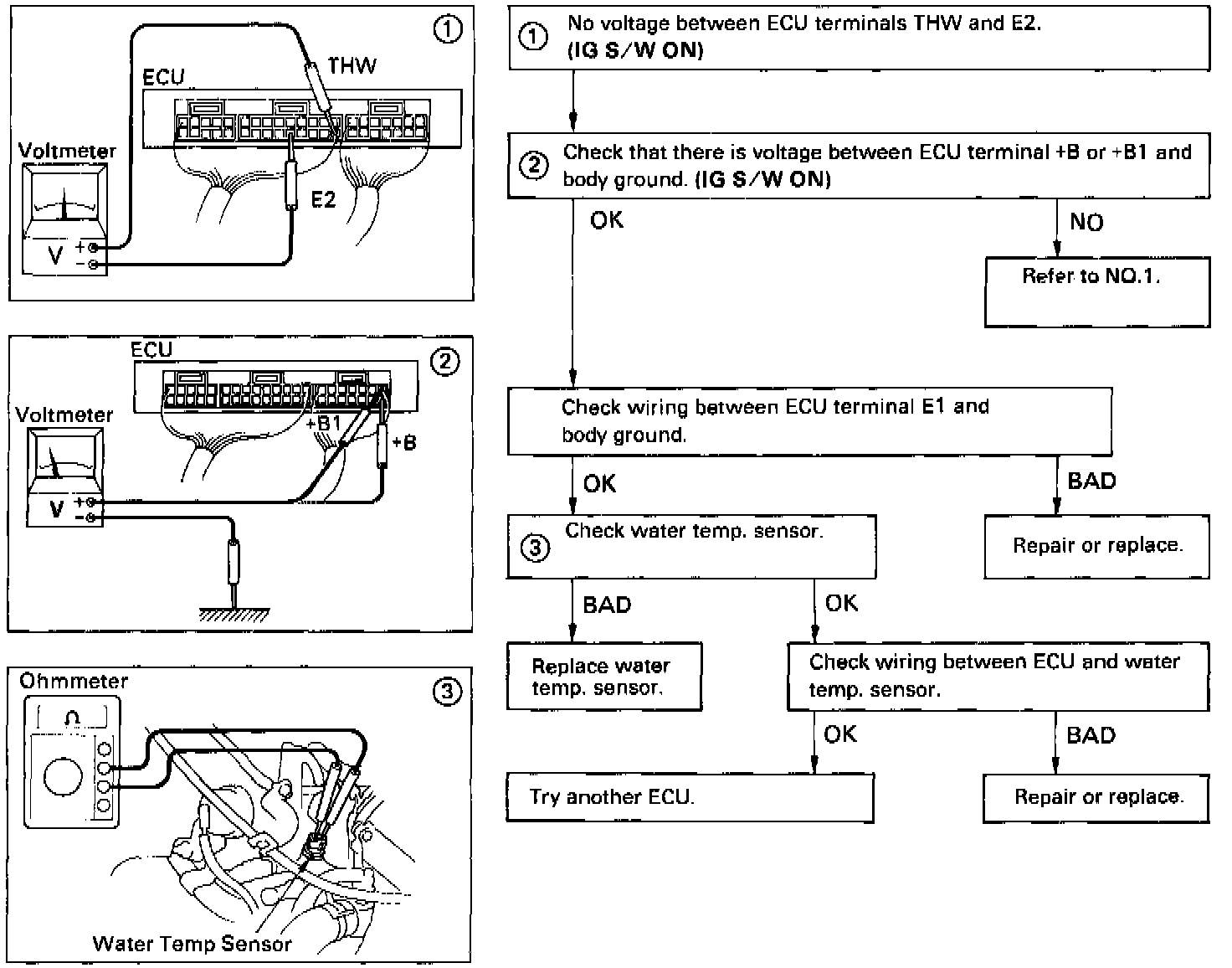

Circuit Test

Test No. 10

Test No. 10 Summary:





THW - E2:
