Coolant Temperature Sensor/Switch (For Computer): Locations

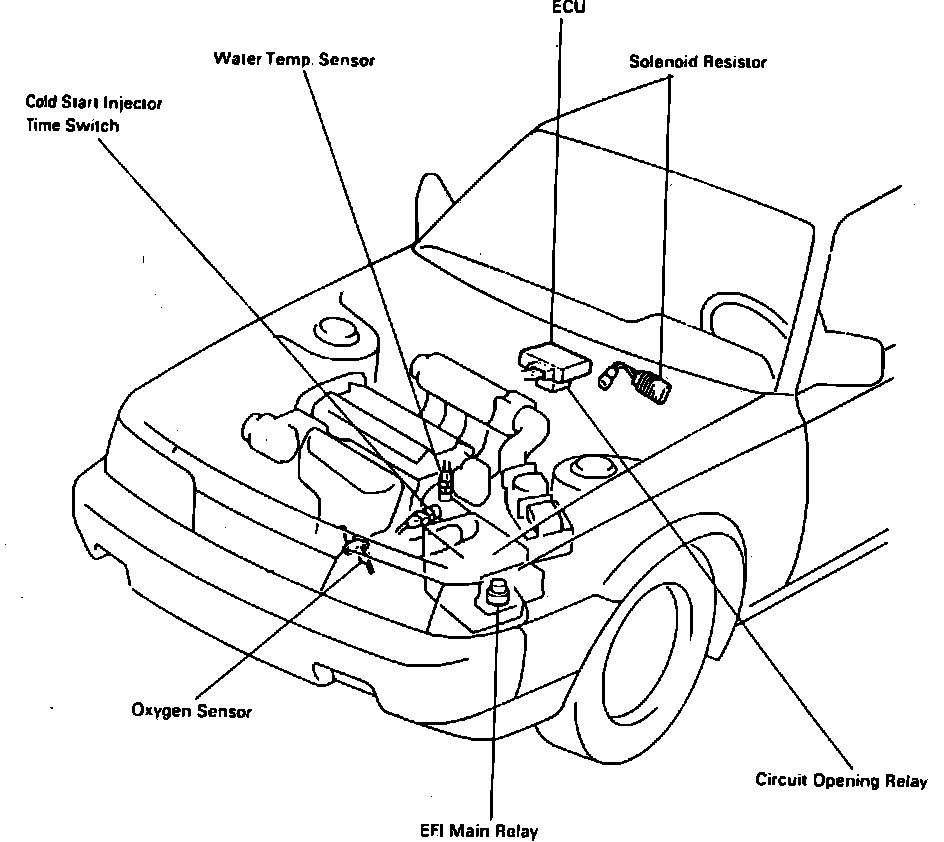

Electronic Control System Components.:

Top LH Side Of Engine

Applicable to: 1987-88 Camry Exc. 1988 4WD & 2VZ-FE Engine
