Torque Specifications

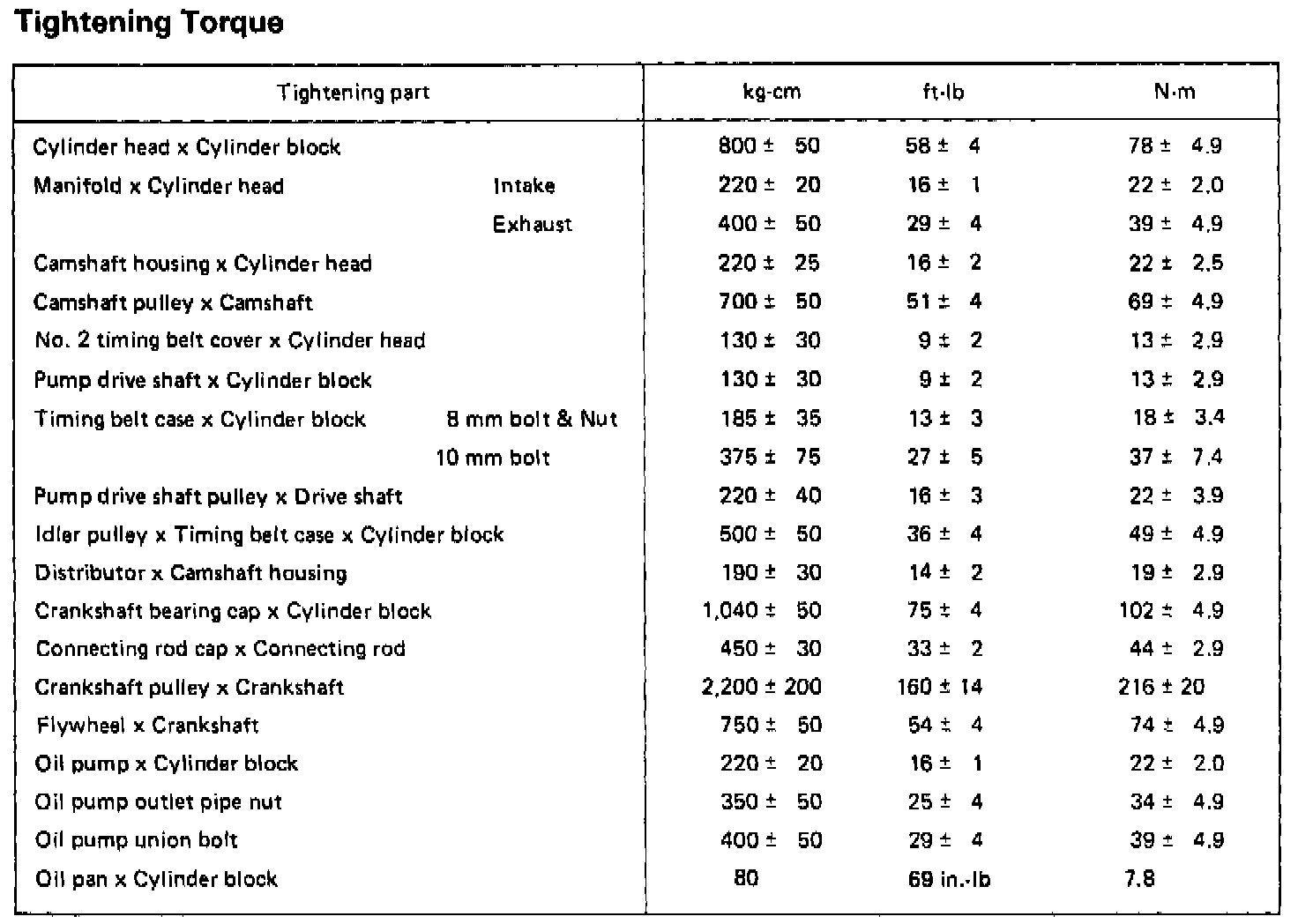

Torque Chart:






Head Loosening Sequence:






Cam Loosening Sequence:






Head Tightening Sequence:






Cam Tightening Sequence:






Main Bearing Torque Sequence:
