Celica L4-2366cc 22R
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

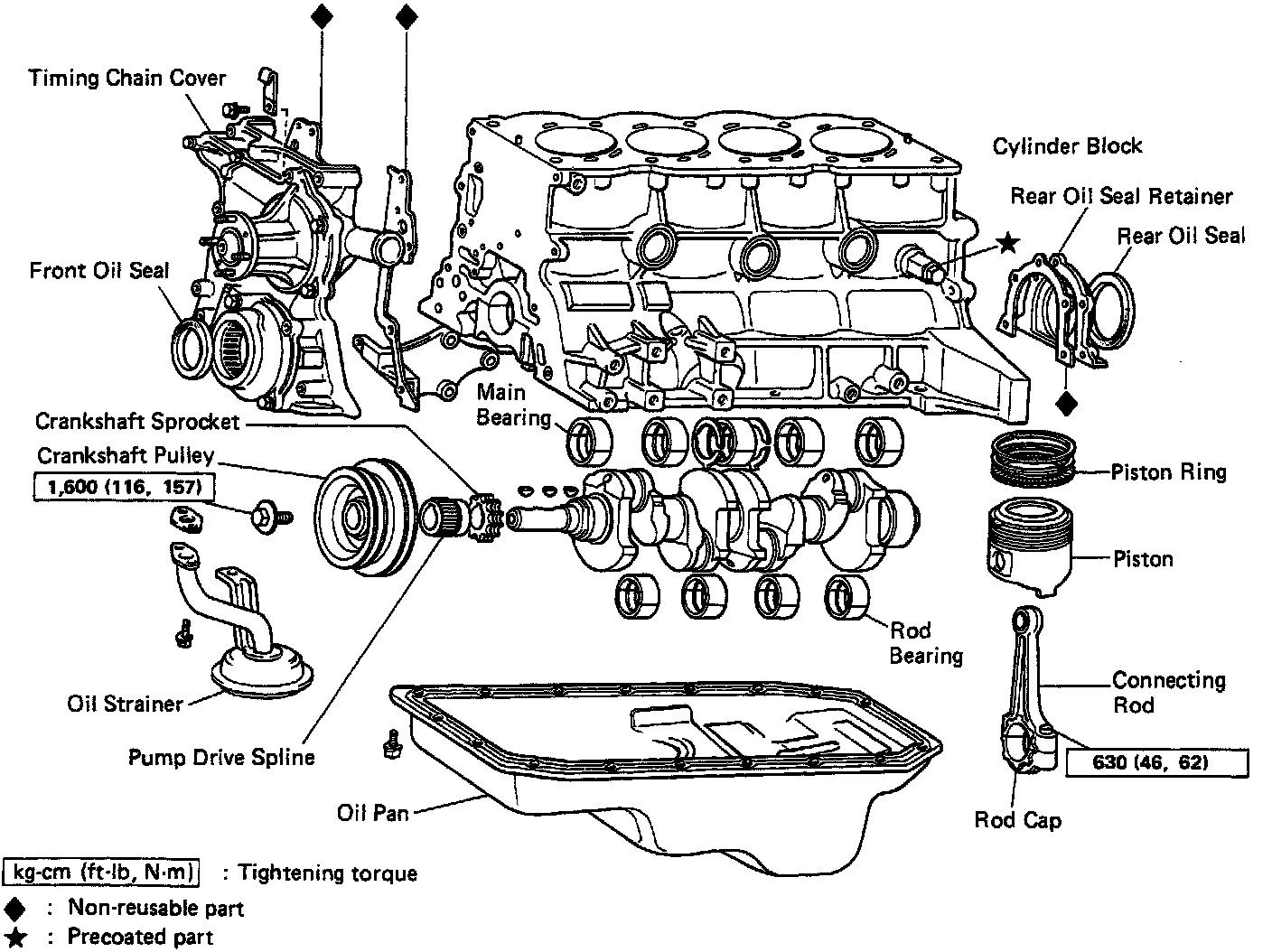

Cylinder Block Assembly
Cylinder Block Assembly
