Home >> Toyota >> 1982 >> Starlet L4-1290cc 4KC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Distributor >> Distributor Vacuum Control >> Locations >> Without High Altitude Compensation

Without High Altitude Compensation

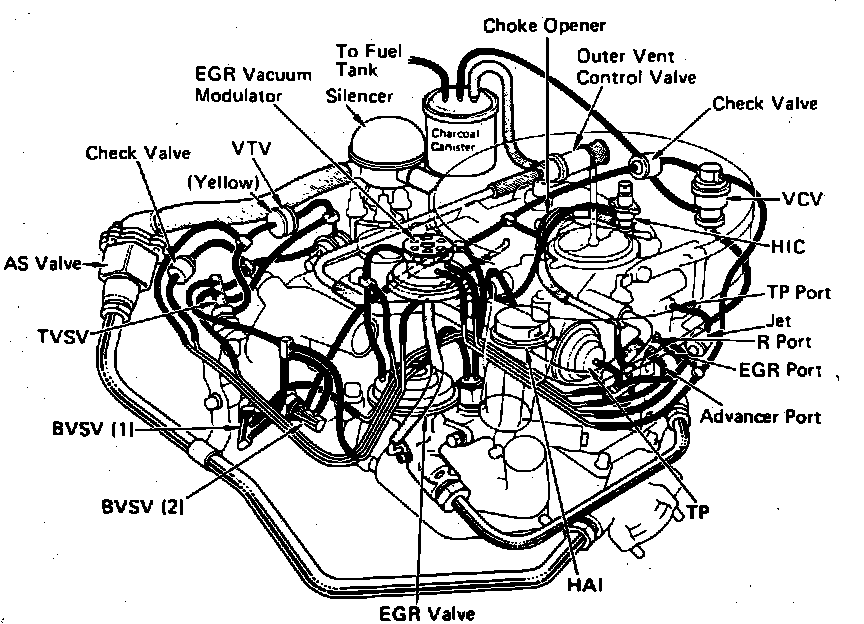

Emission Control System Components.:




LH Side Of Engine

Applicable to: 1981-82 4K-C Engine Less High Altitude Compensation
