High Altitude

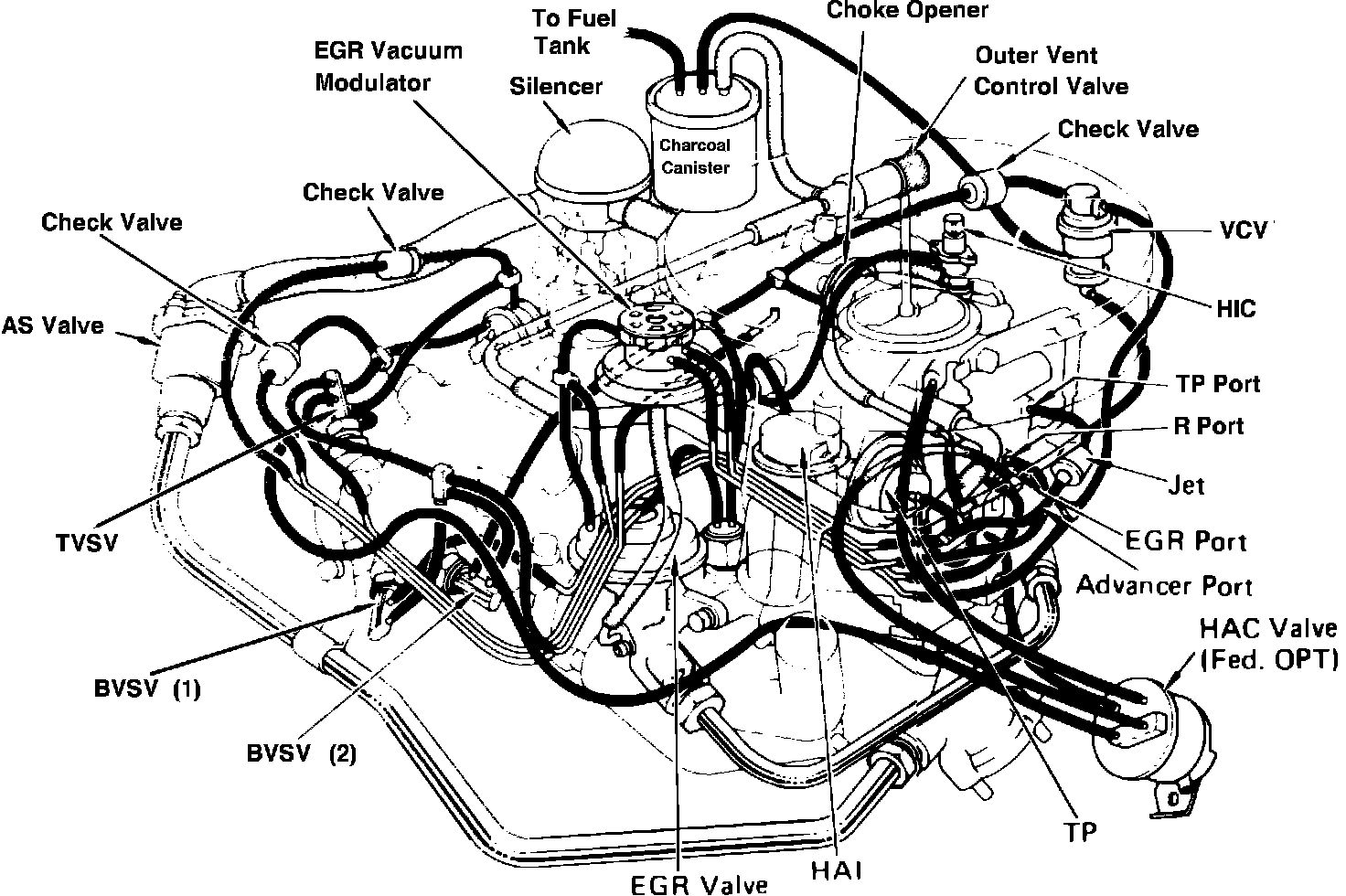

Fig. 7 Emission control system & engine compartment reference diagram. With high altitude compensation system:
