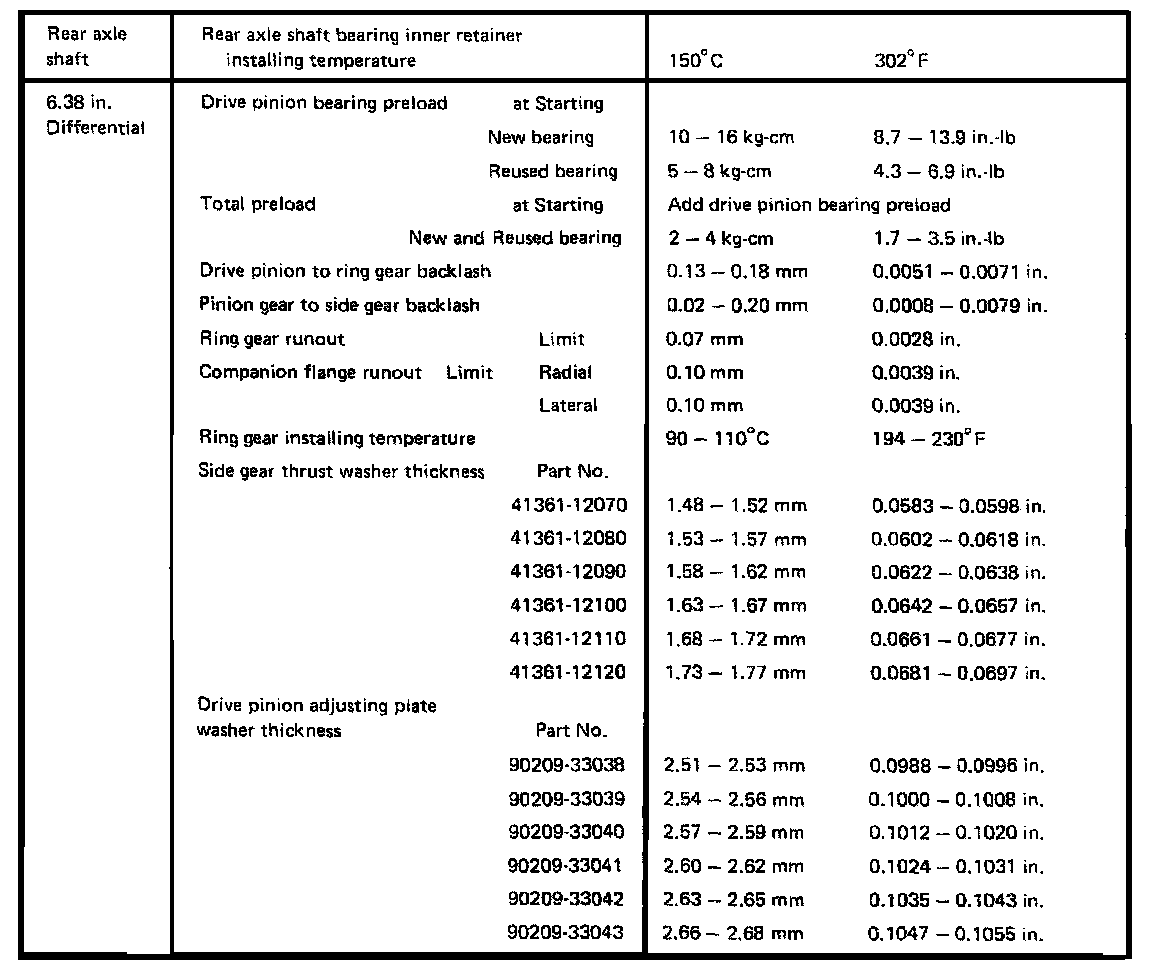

D/F Technical Data

6.38 Inch Differential, Gear Backlash/Drive Pinion:





6.38 Inch Differential, Drive Pinion Thickness:
