Service Data





SERVICE SPECIFICATIONS: 3UR-FE ENGINE MECHANICAL: SERVICE DATA

ENGINE

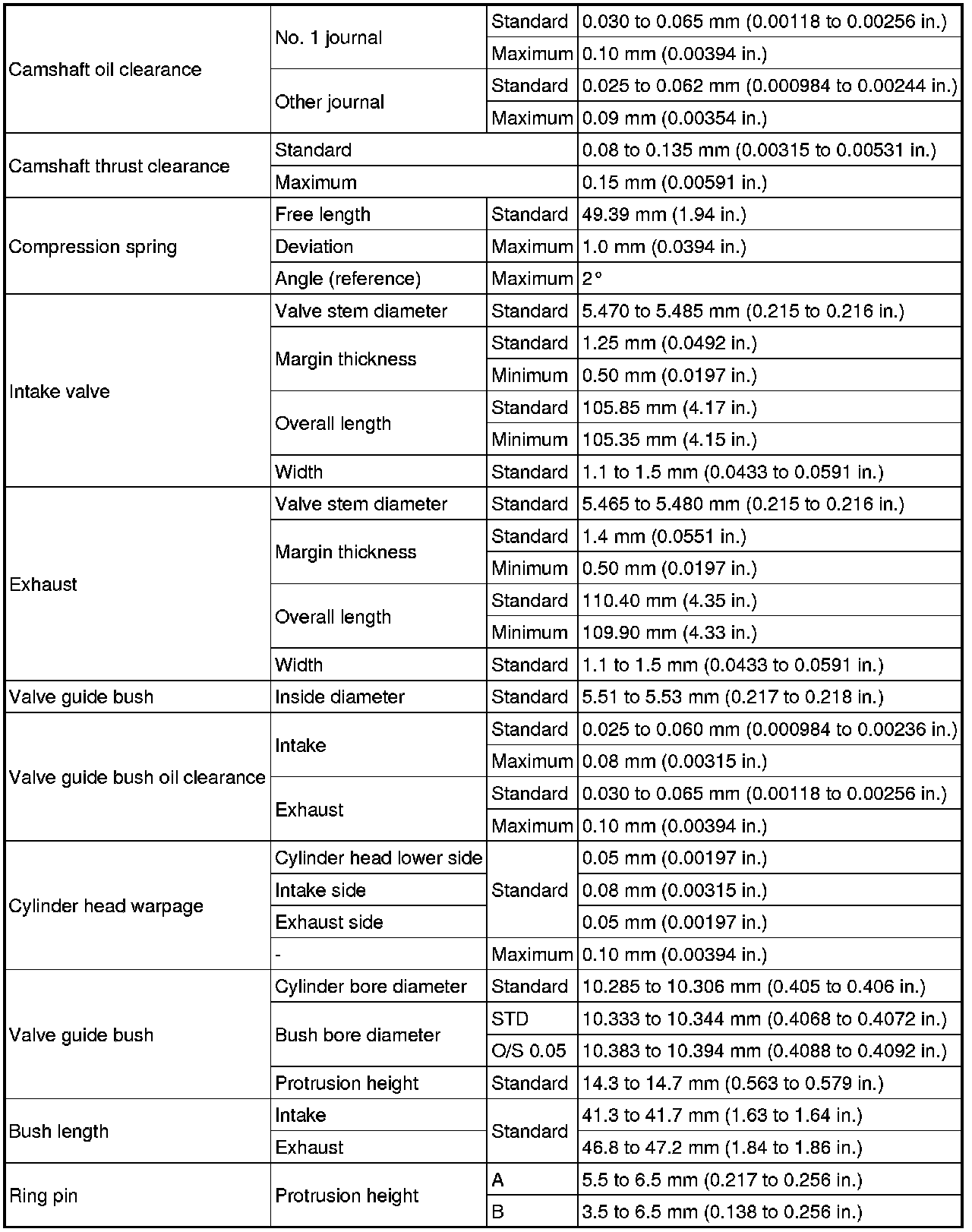

CYLINDER HEAD

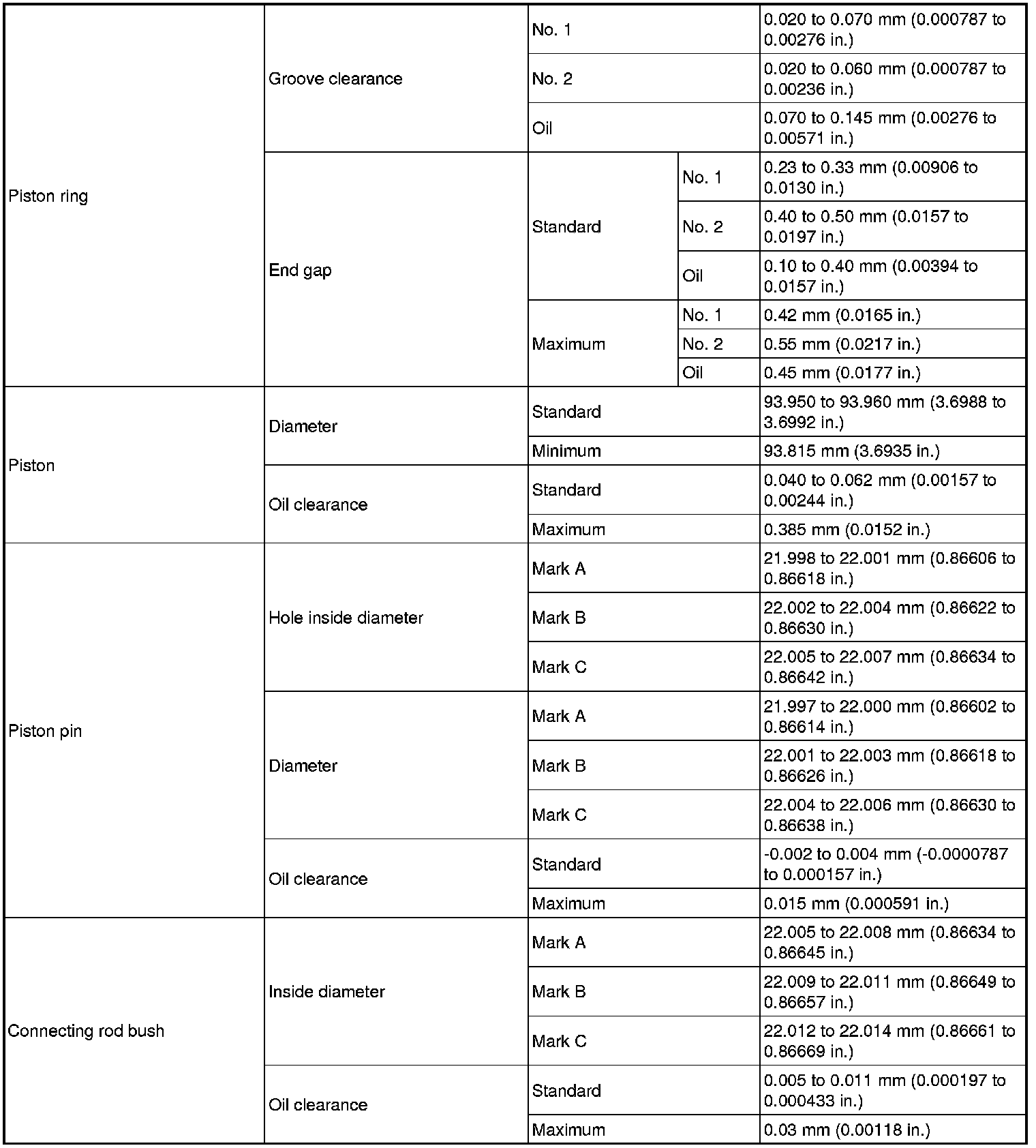

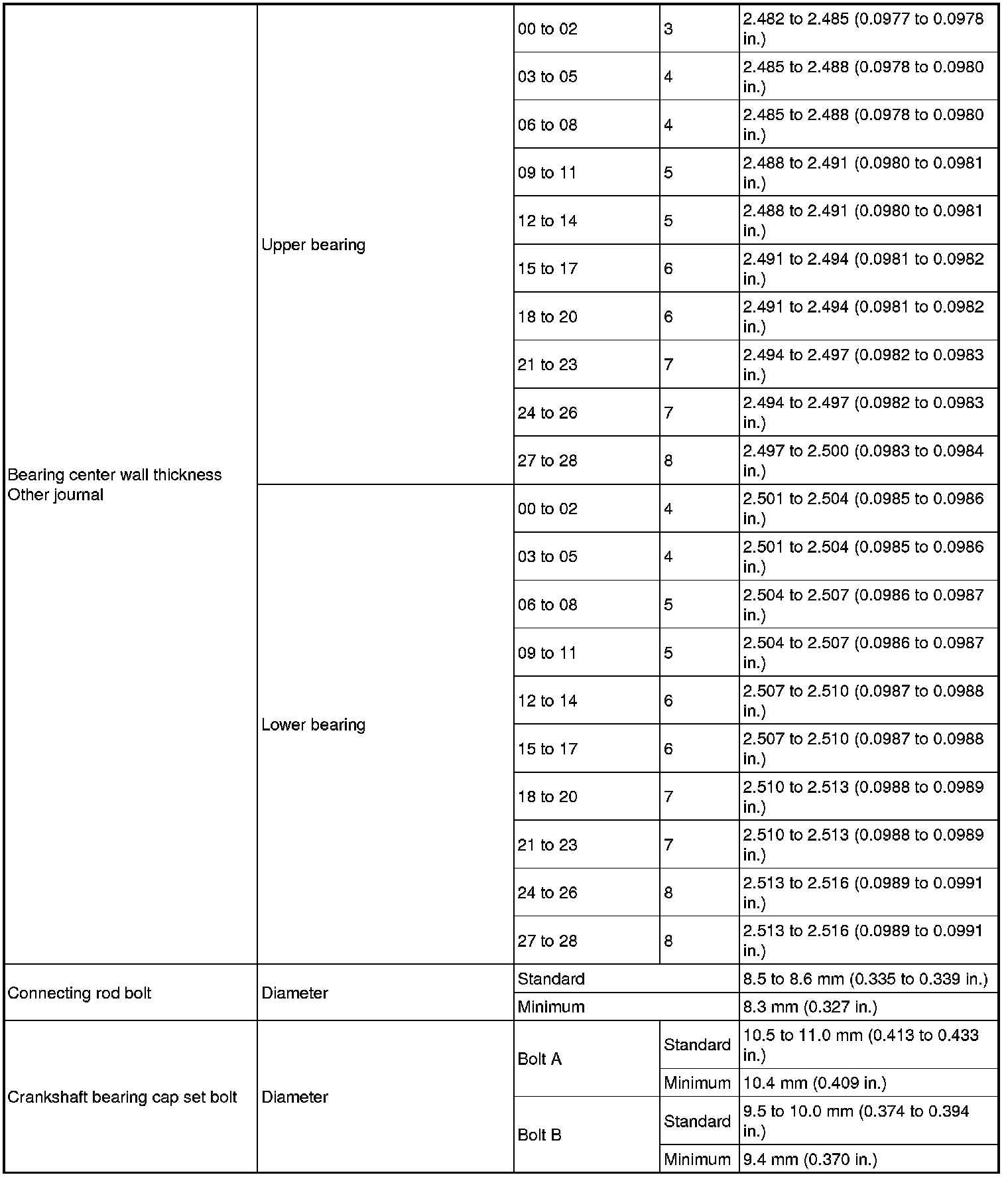

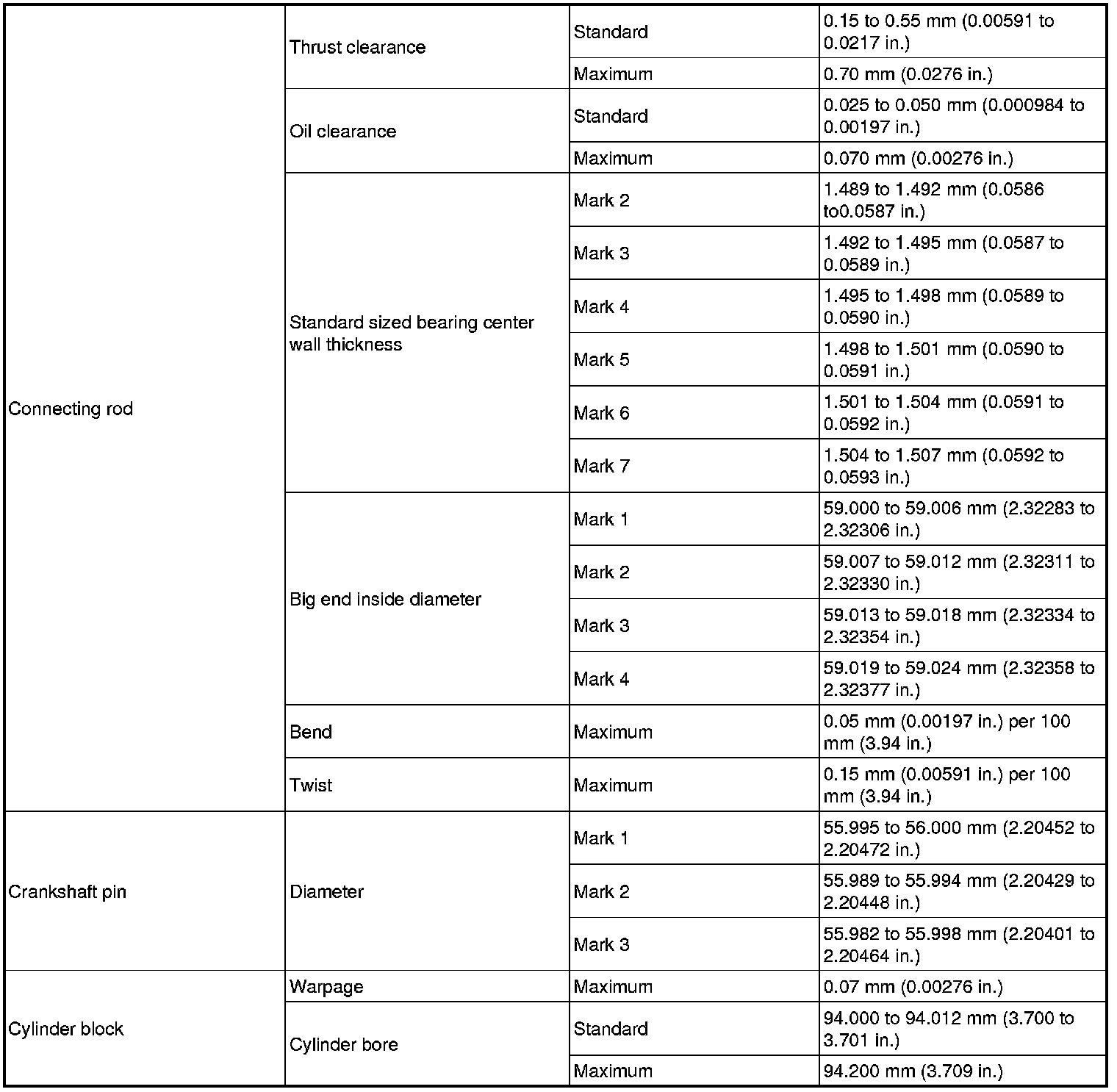

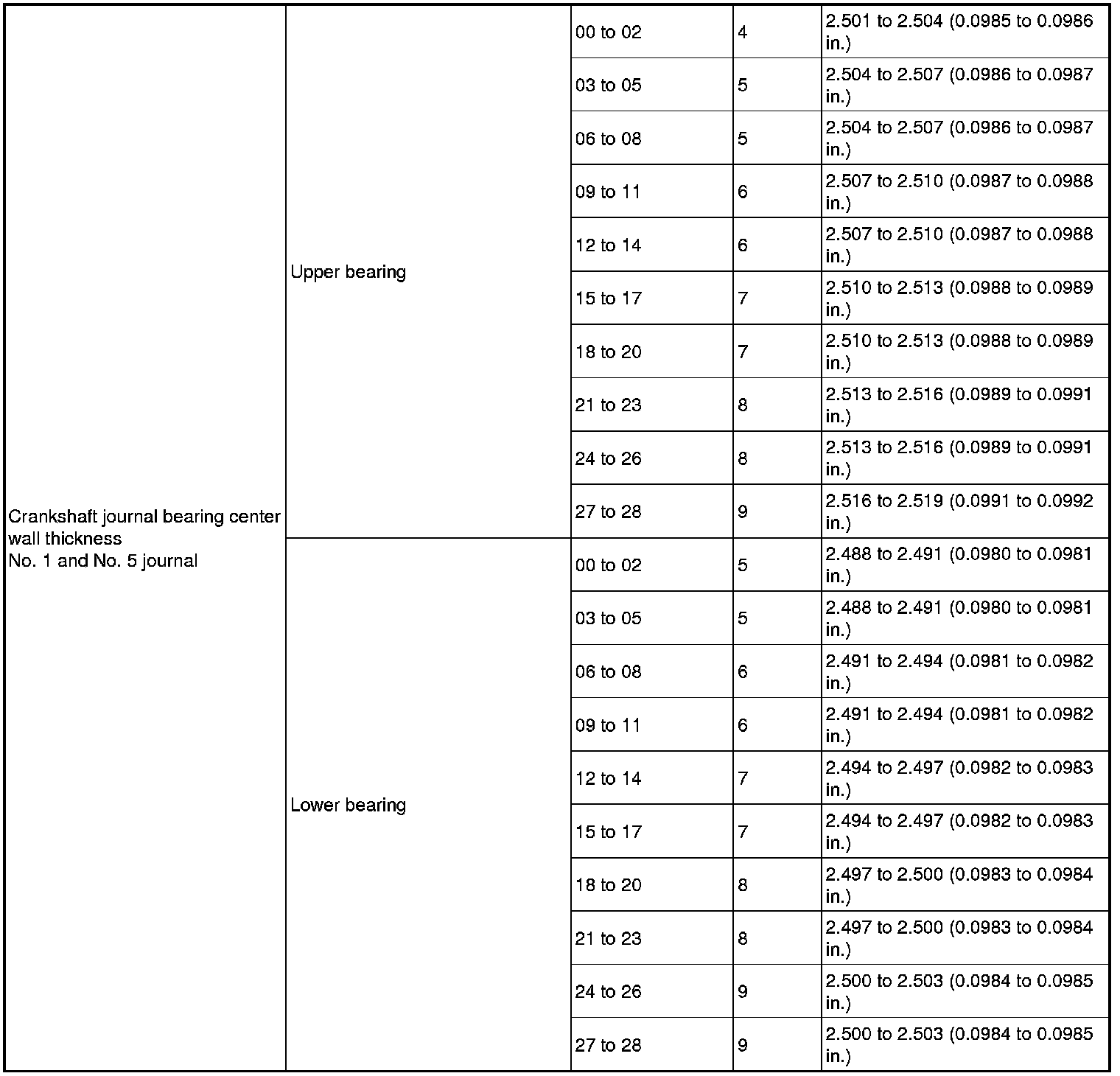

CYLINDER BLOCK

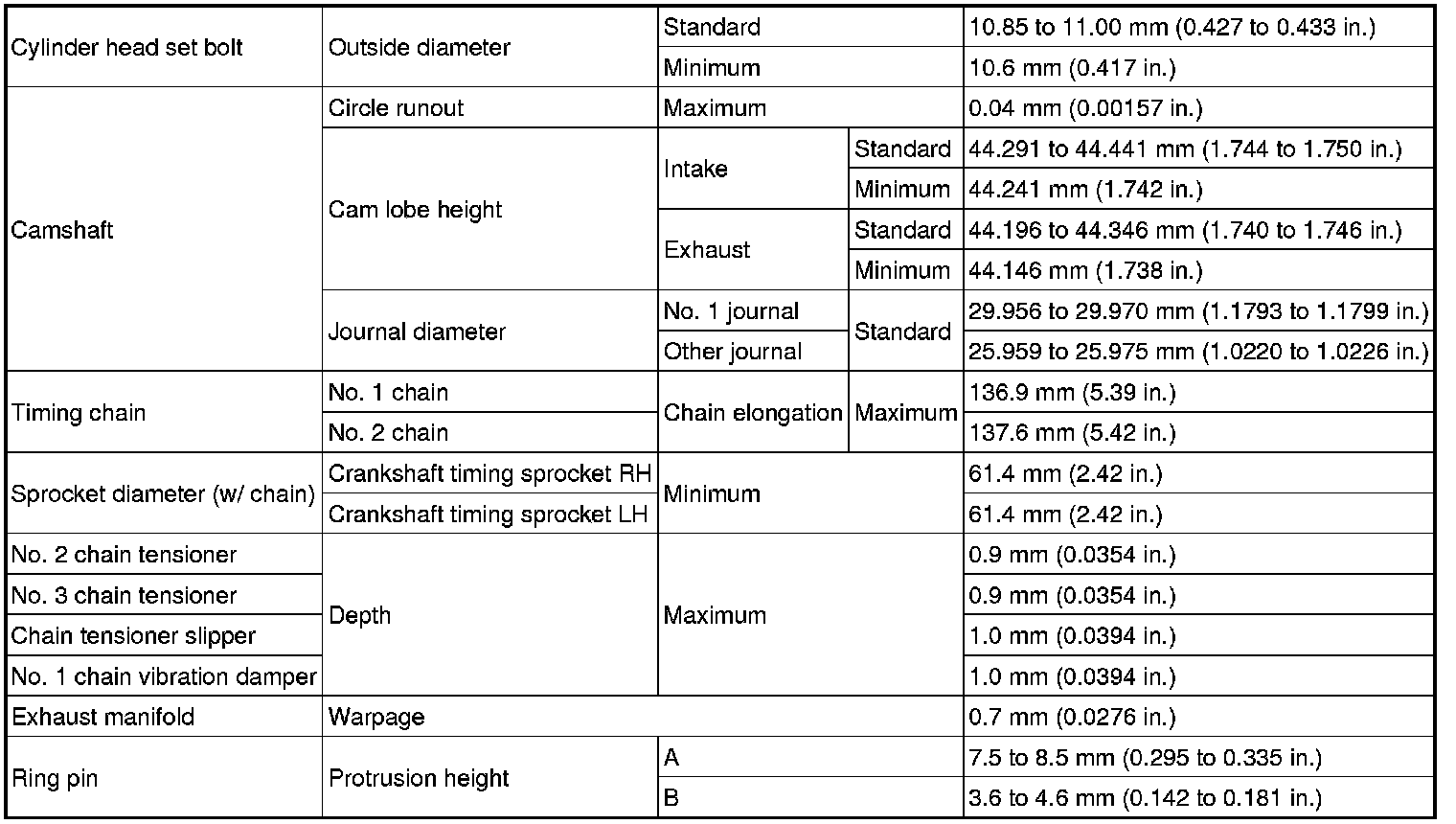

ENGINE UNIT
