Power Distribution Module: Locations





2GR-FE BATTERY / CHARGING: CHARGING SYSTEM: PARTS LOCATION

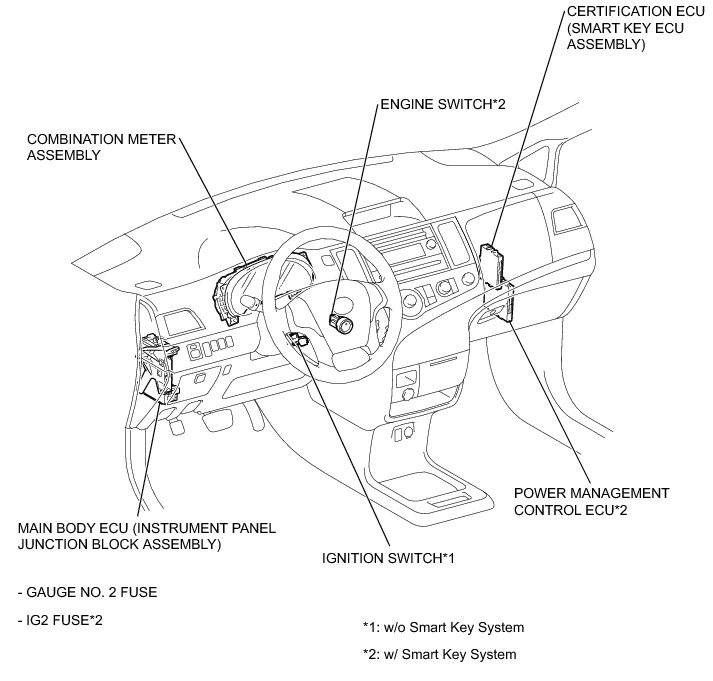

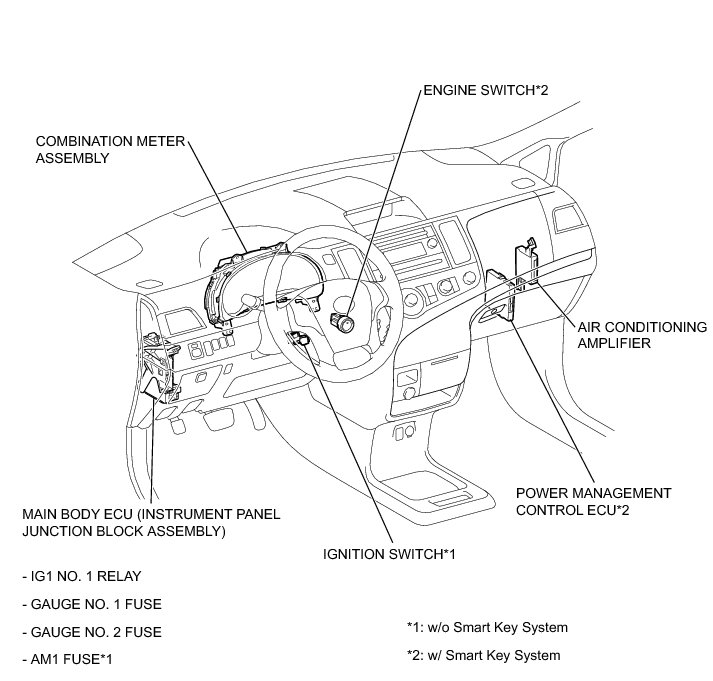

Instrument Panel:
