Toyota Truck
>>
2008
>>
FJ Cruiser 2WD V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Power Distribution Module
>>
Service and Repair
>>
Components
Components

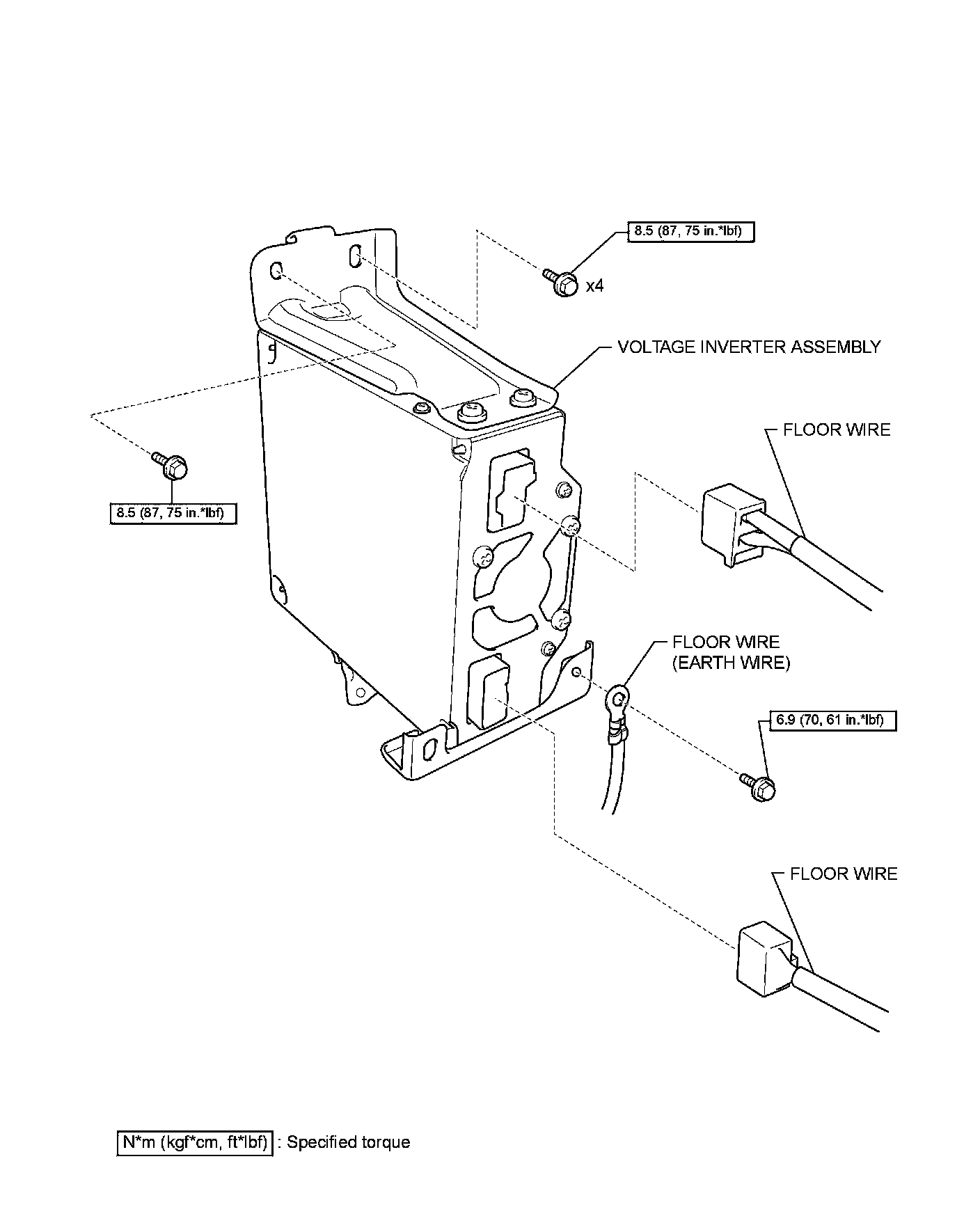

OTHER SYSTEM: VOLTAGE INVERTER:
COMPONENTS
