Body Control Module: Locations

Instrument Panel:

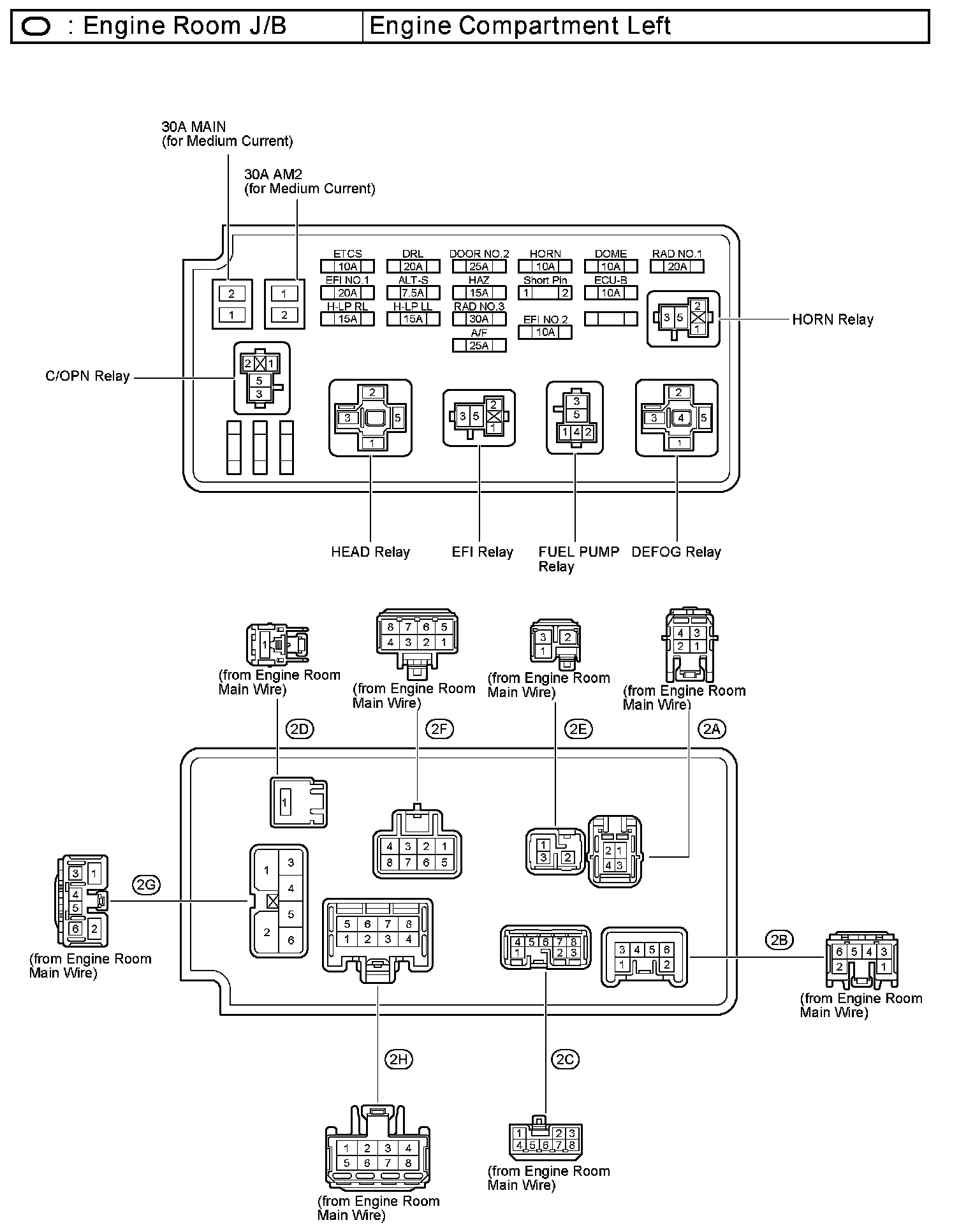

Engine Room J/B - Engine Compartment Left:

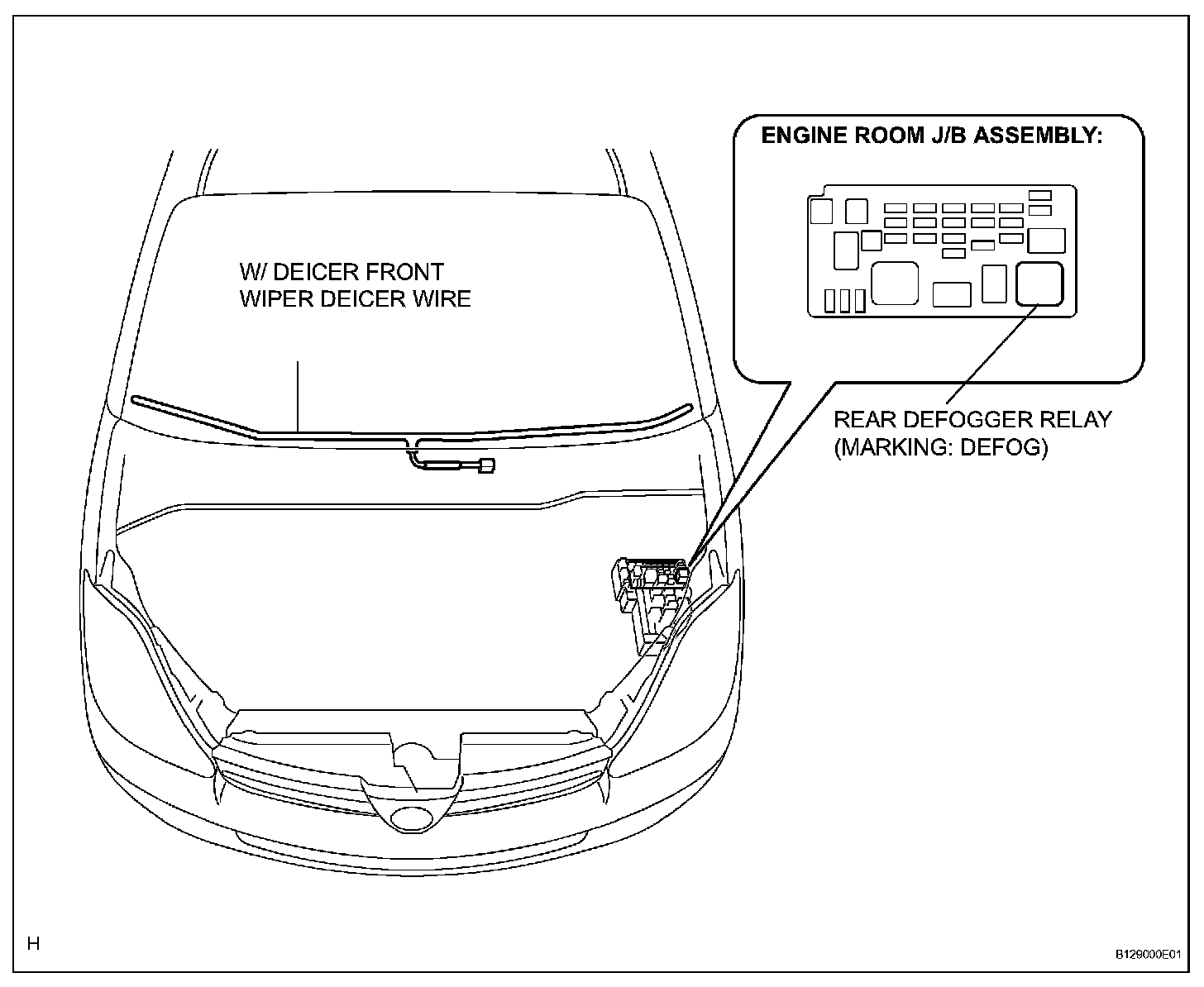

Window Defogger System:

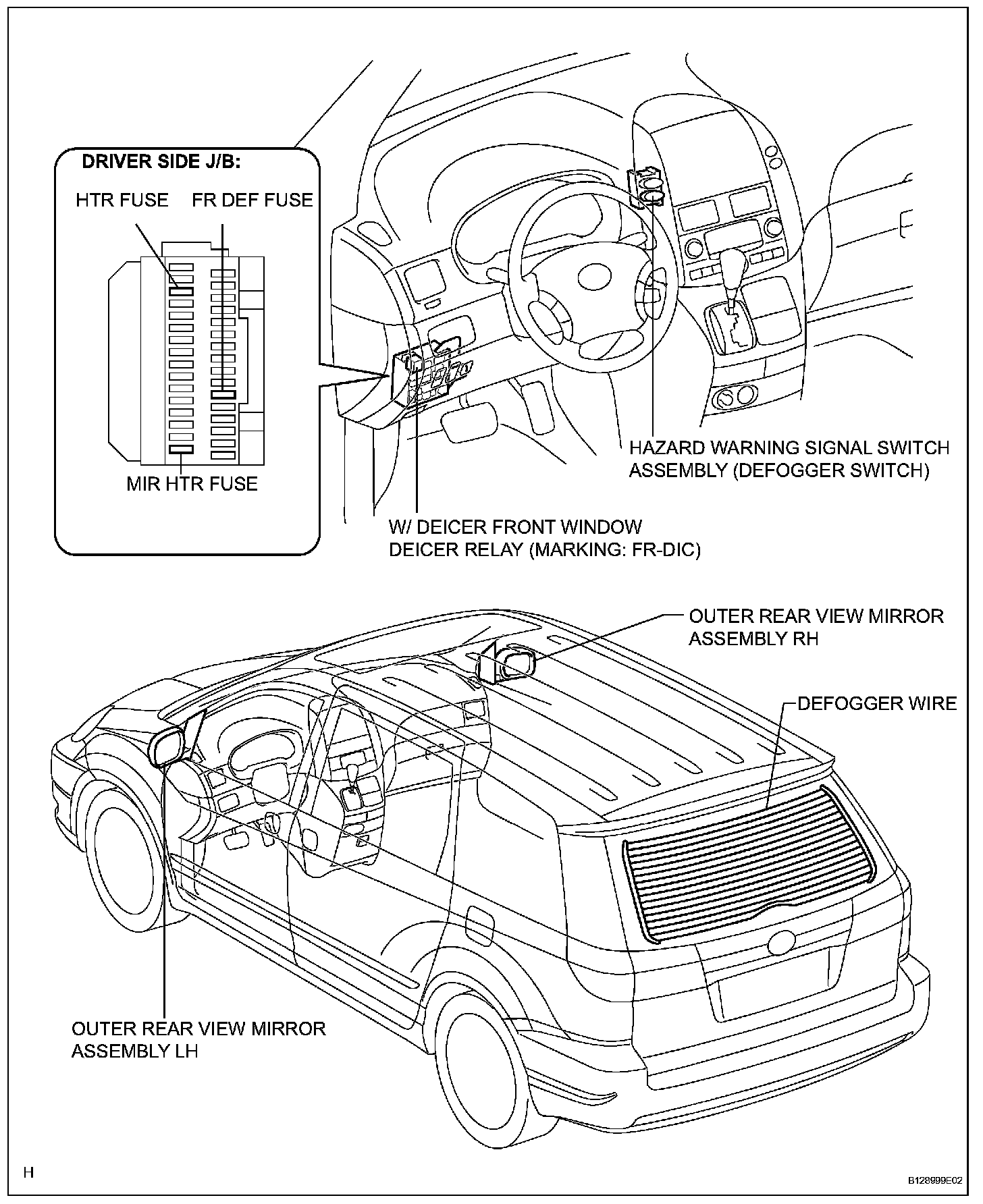

Window Defogger System:
