Engine Service Data

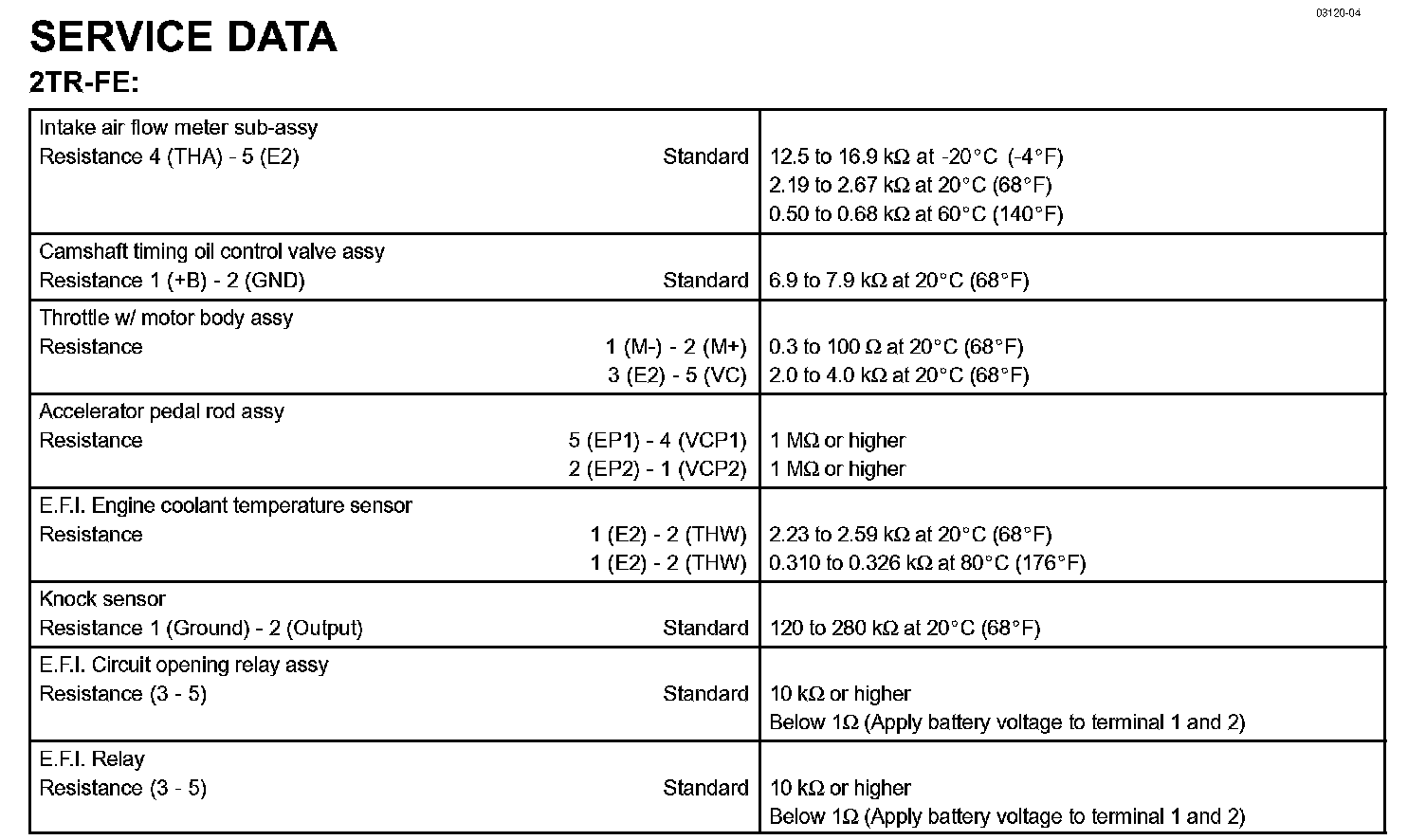

Engine Control System - Service Data:

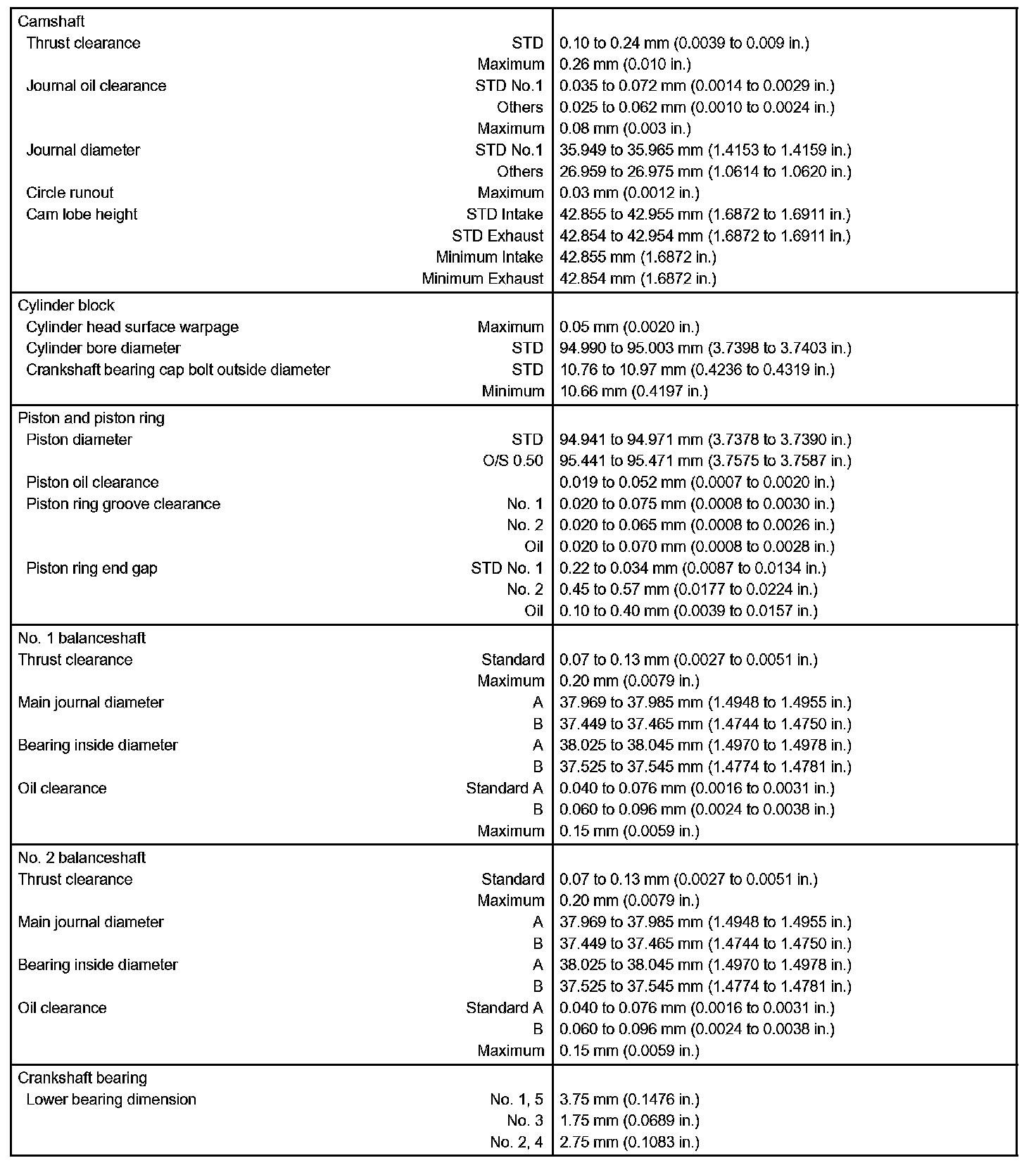

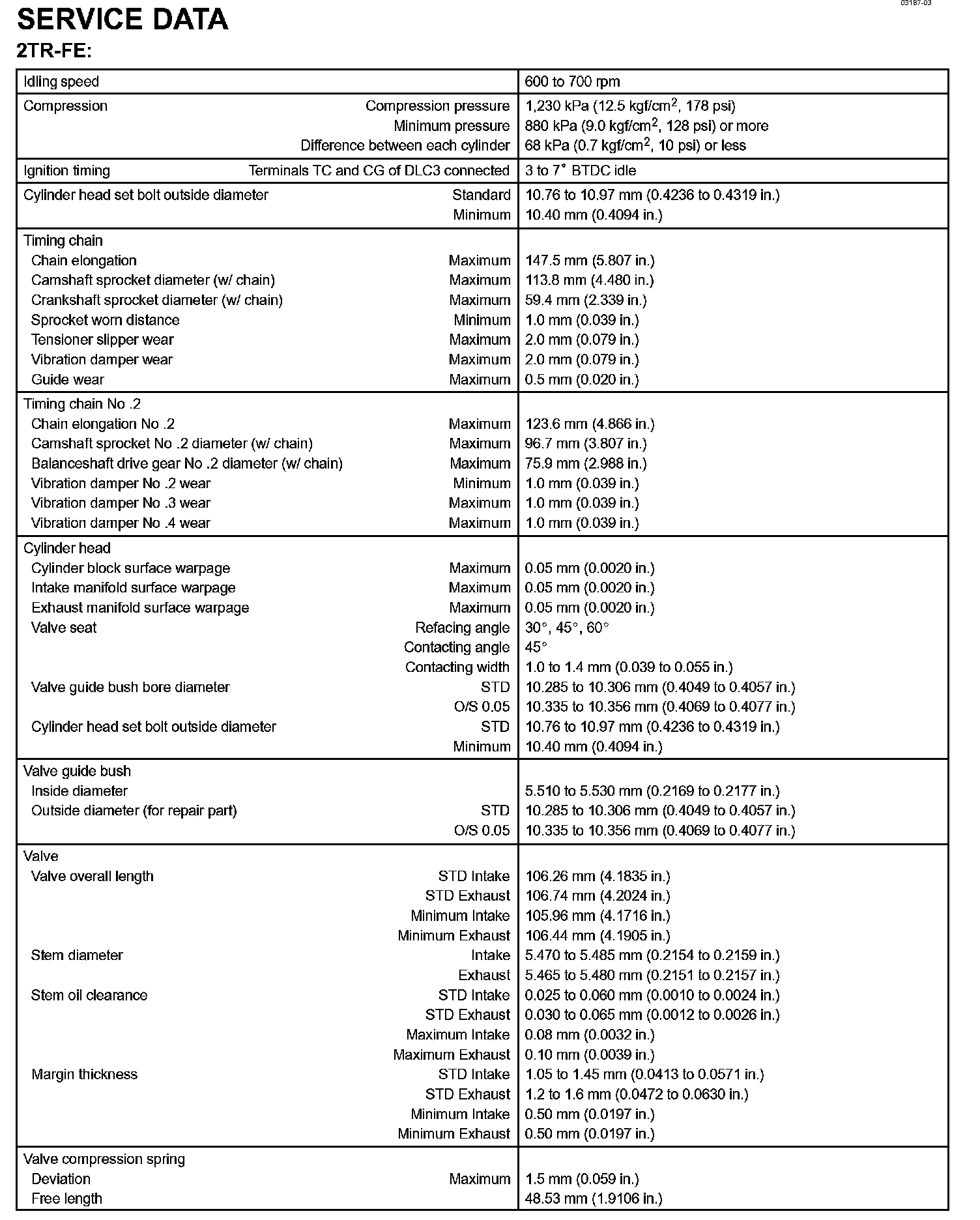

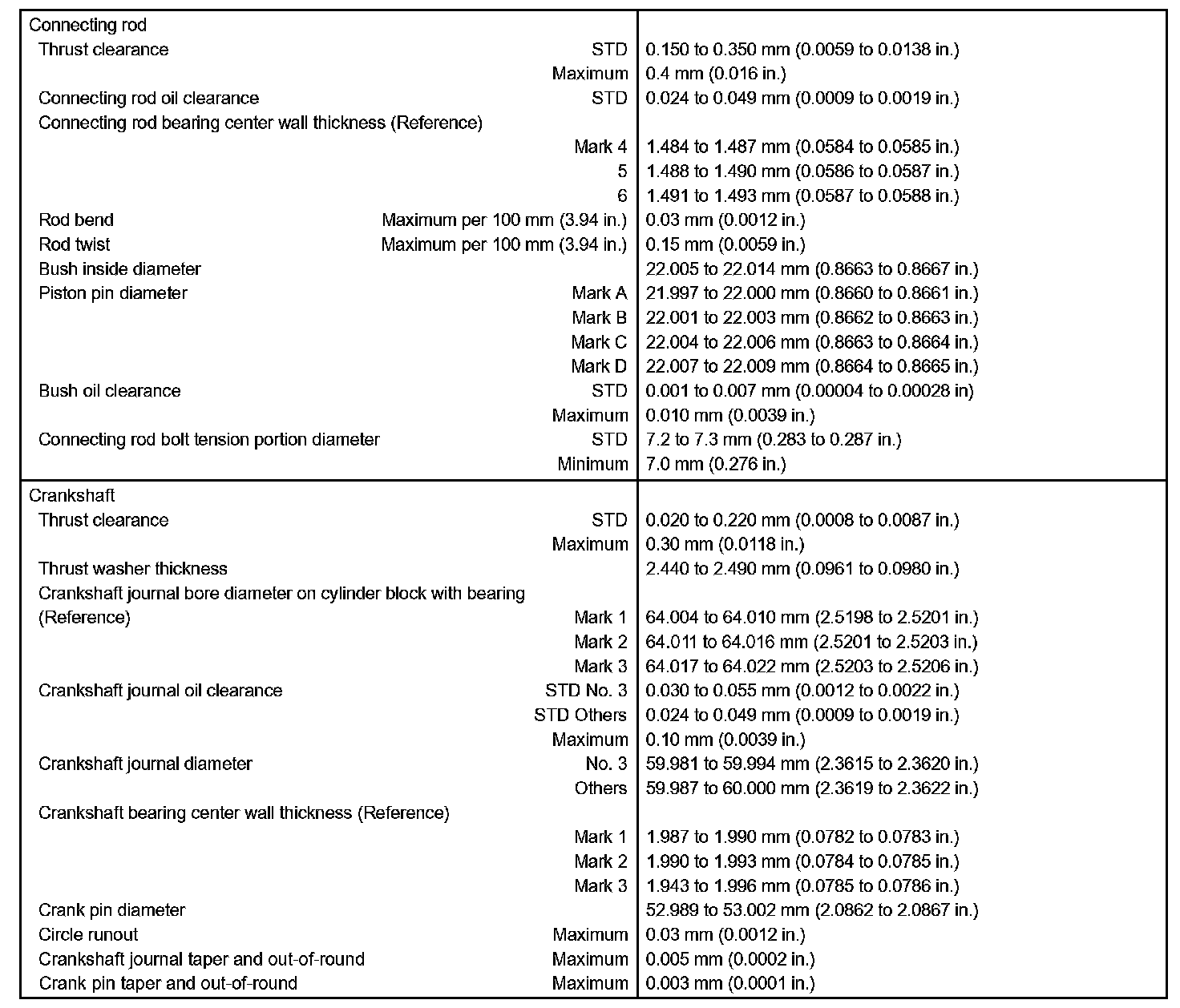

Engine Mechanical - Service Data Part 1:



Engine Mechanical - Service Data Part 2:



Engine Mechanical - Service Data Part 3:
