Home >> Toyota Truck >> 2005 >> Tacoma 4WD L4-2.7L (2TR-FE) >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Testing and Inspection

Cruise Control Module: Testing and Inspection

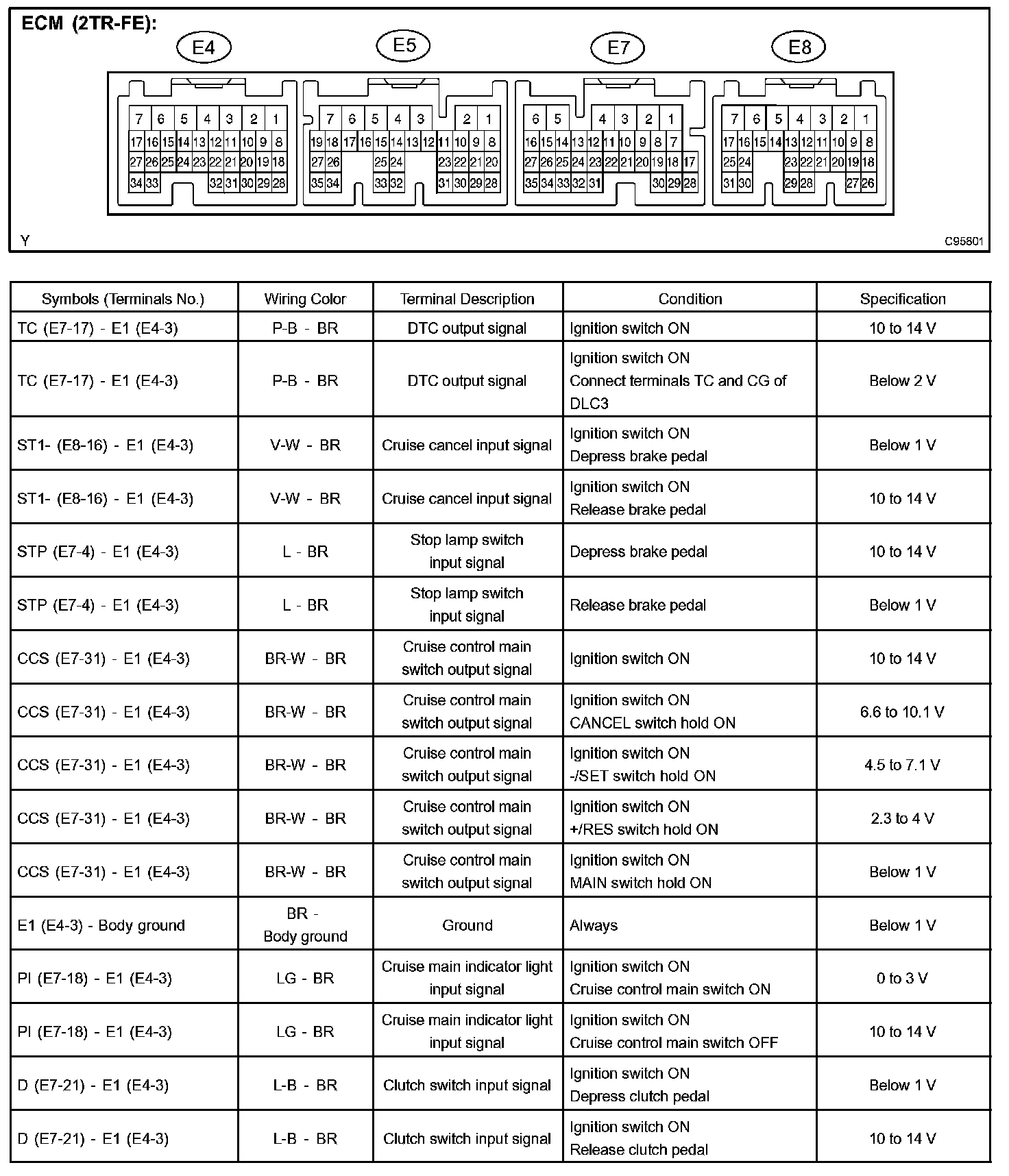

Terminals Of ECM/Pinouts:
