Torque Specifications

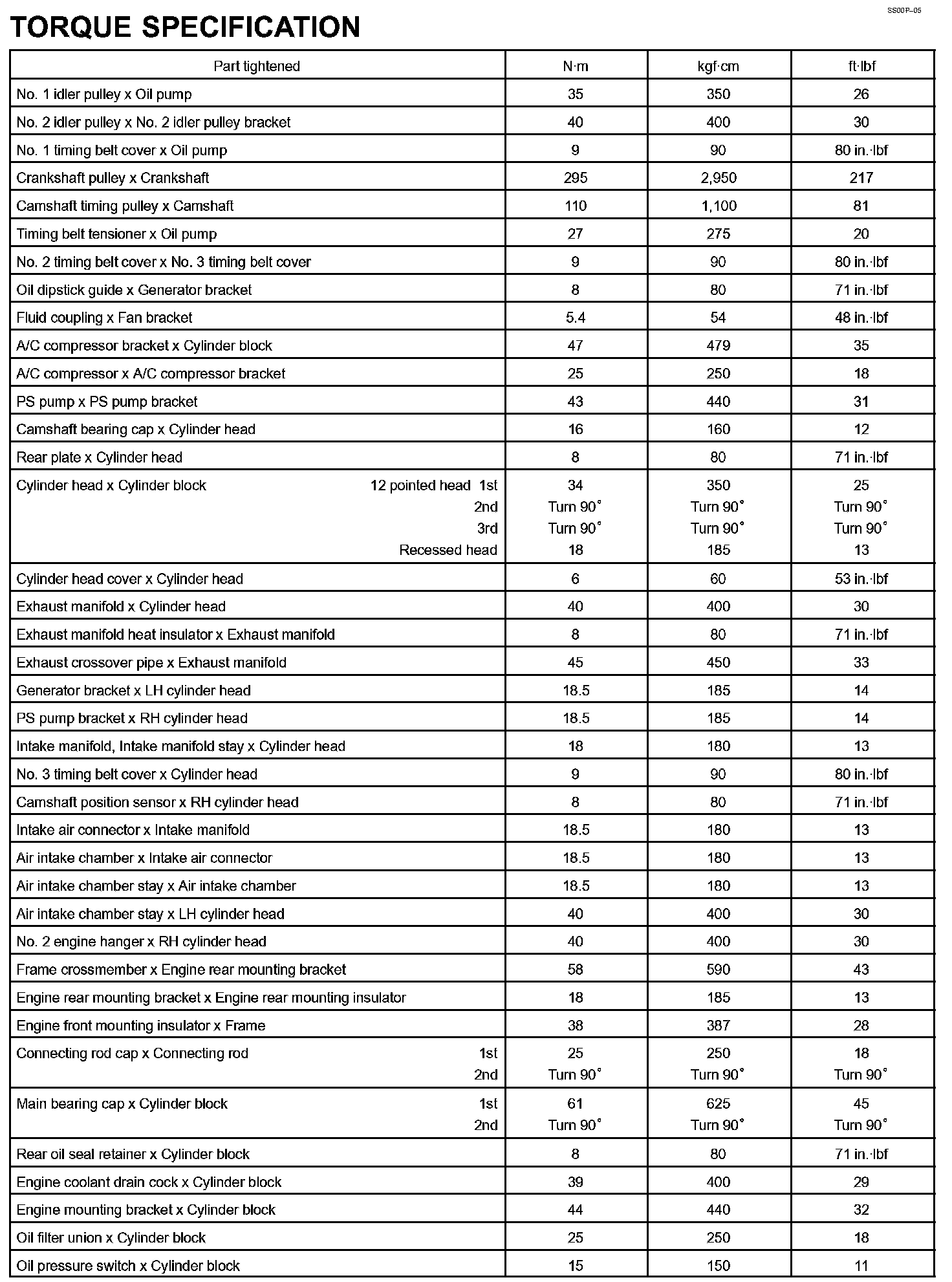

Engine Mechanical(5VZ-FE) - Torque Specification Part 1:




Part 2 Of 2:





TORQUE SPECIFICATIONS
