Home >> Toyota Truck >> 2004 >> Sequoia 4WD V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

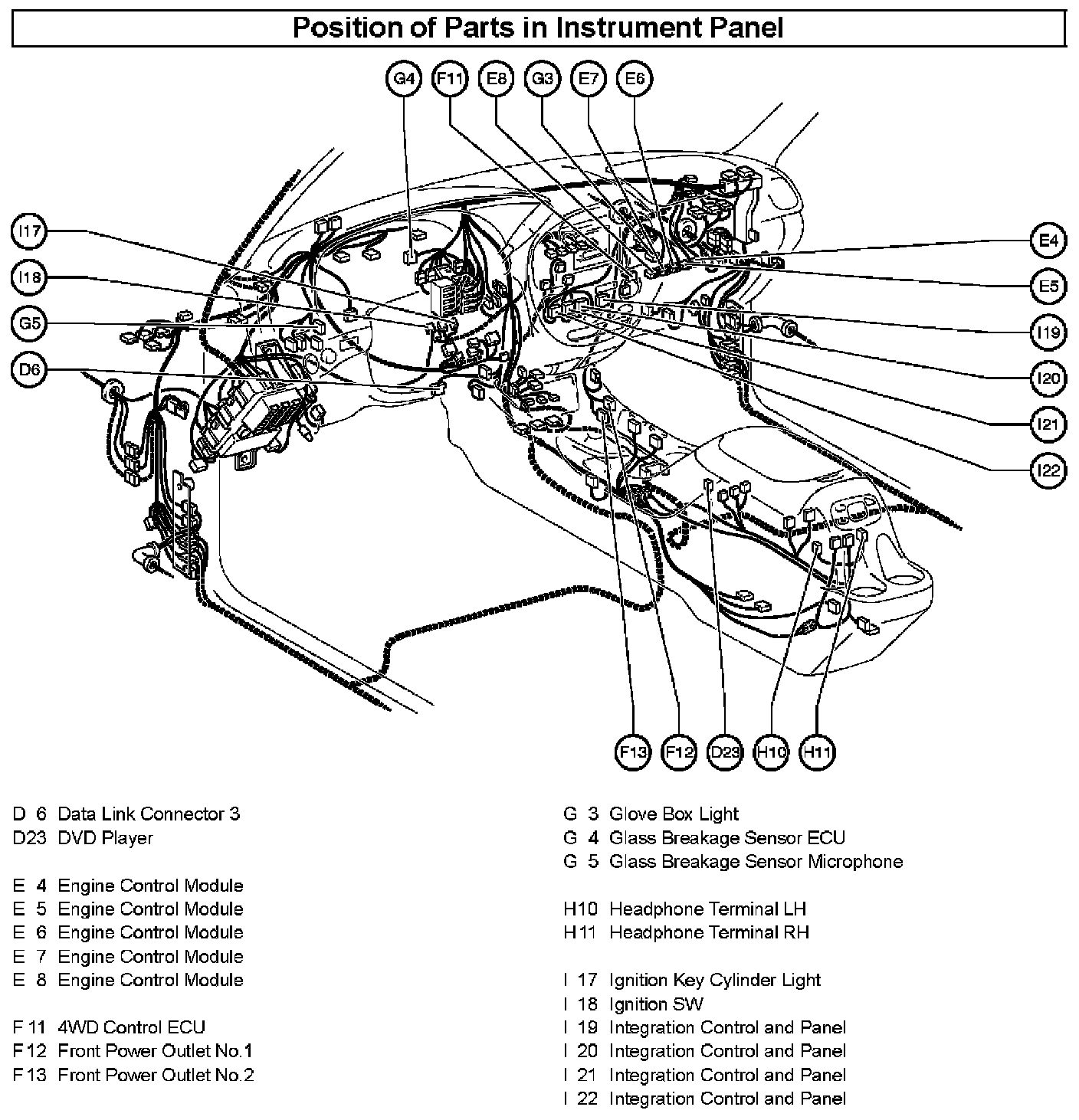

Instrument Panel:

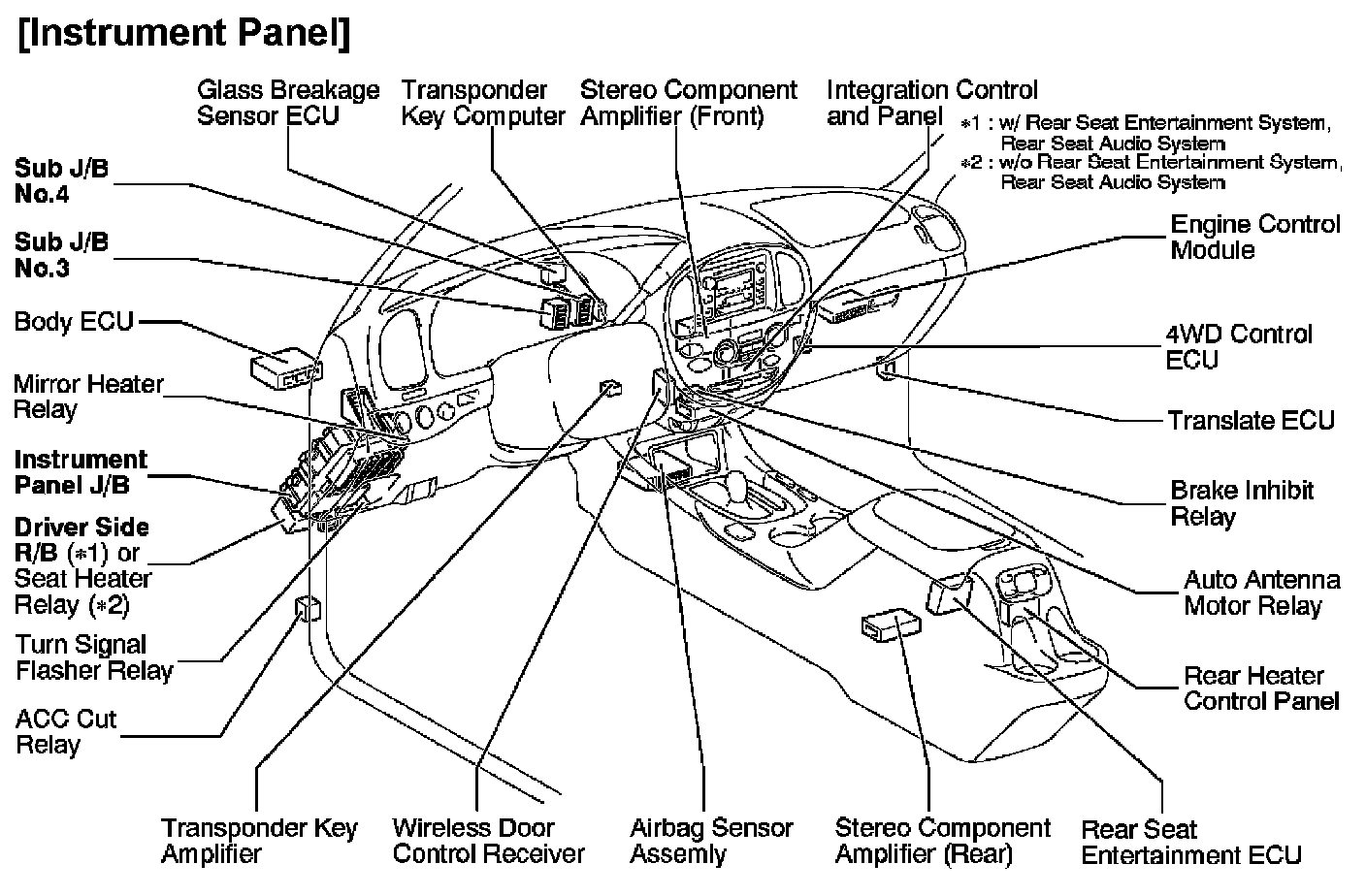

Da - In:

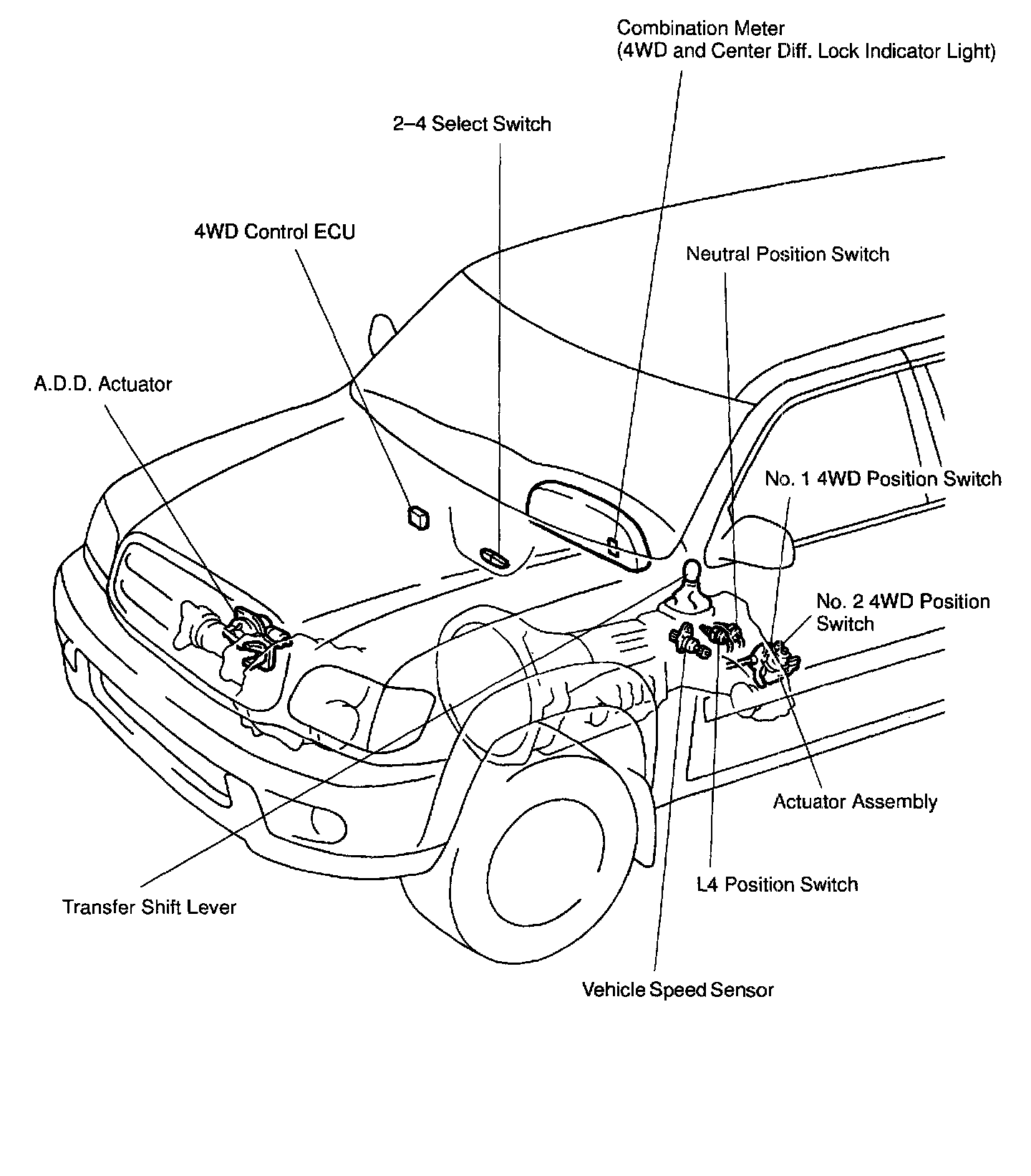

One Touch 2-4 Selector System:
