Service Data

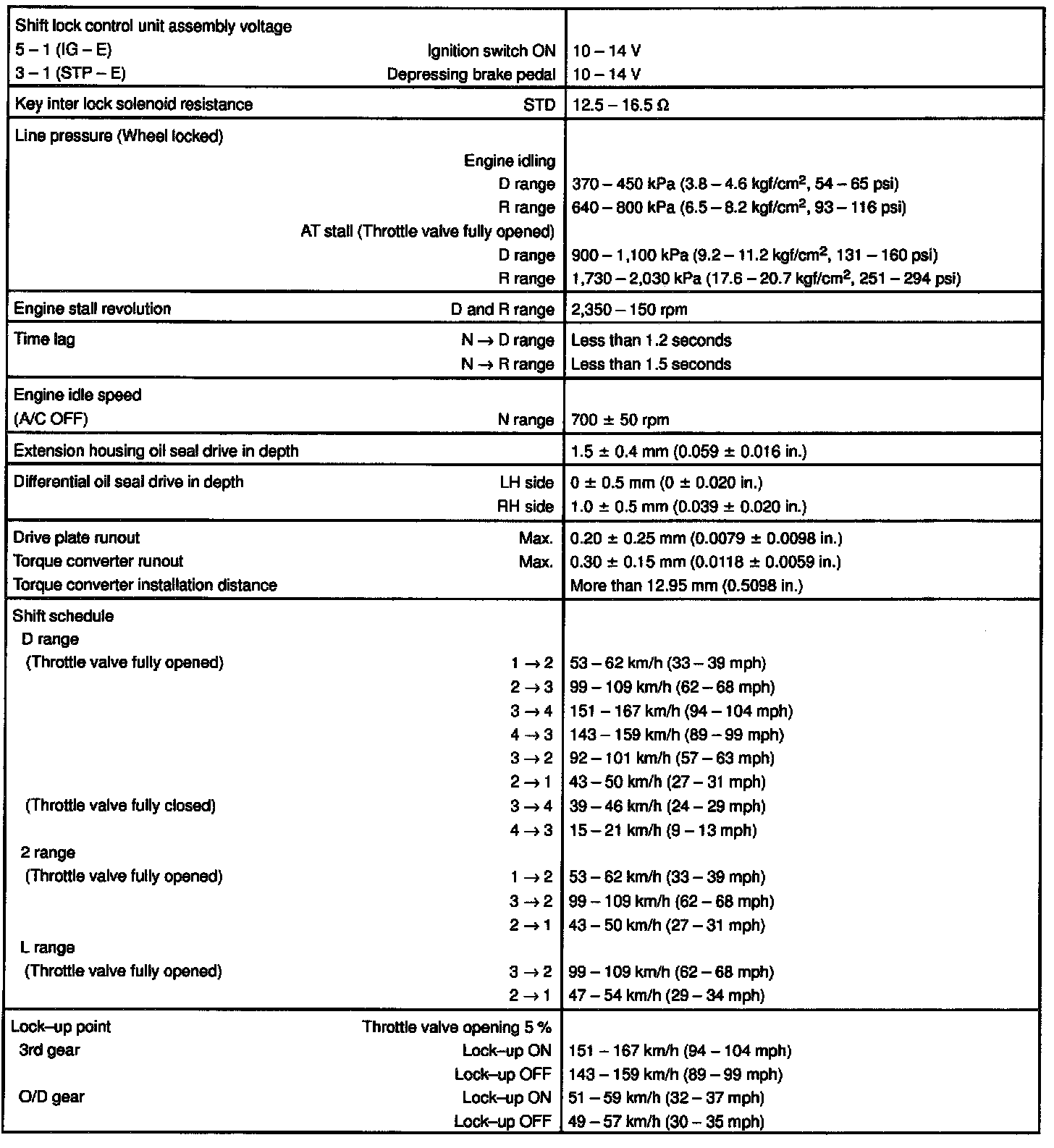

AUTOMATIC TRANSAXLE (U140F) SERVICE DATA:

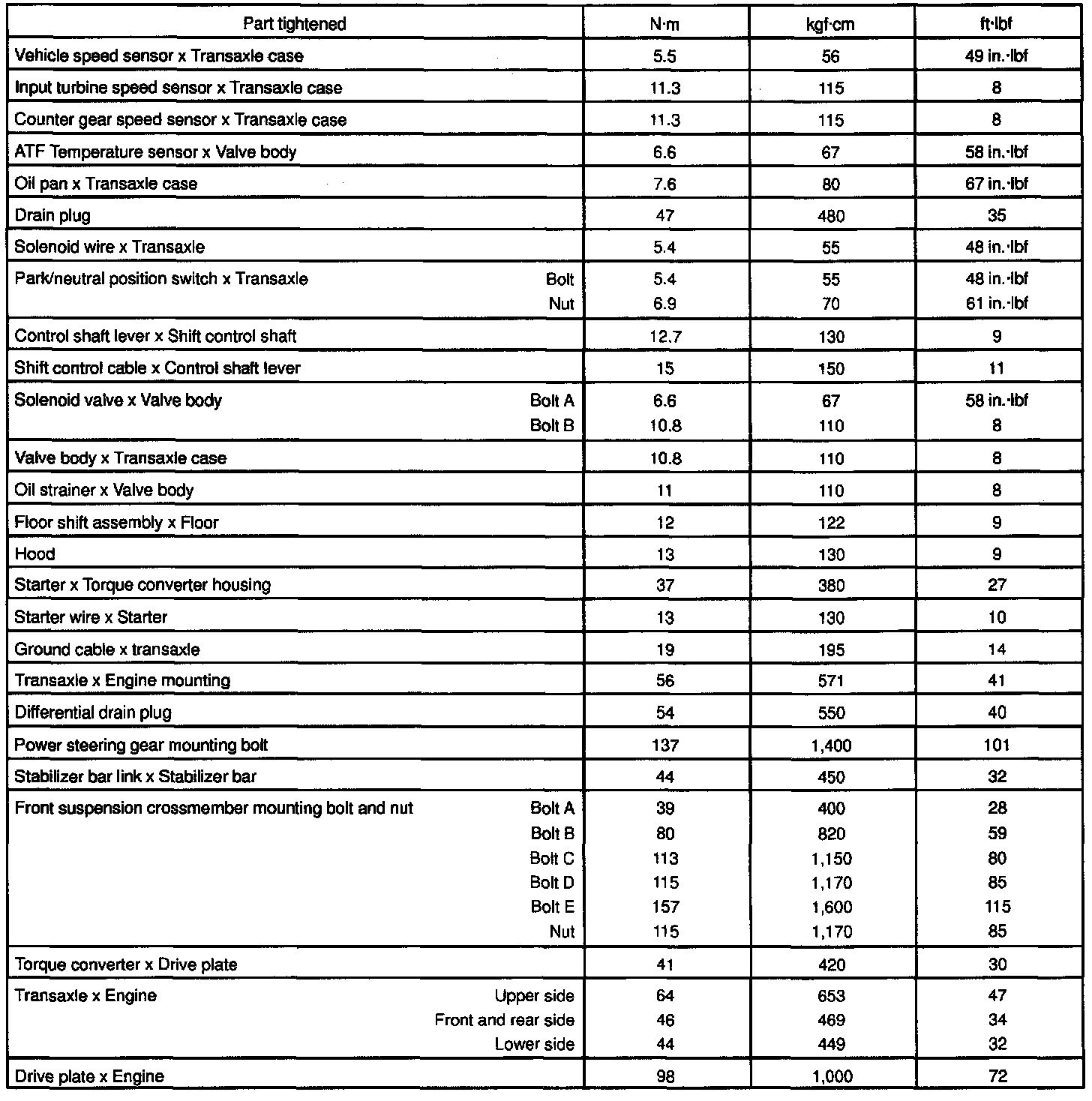

TORQUE SPECIFICATION:





AUTOMATIC TRANSAXLE (U140F)

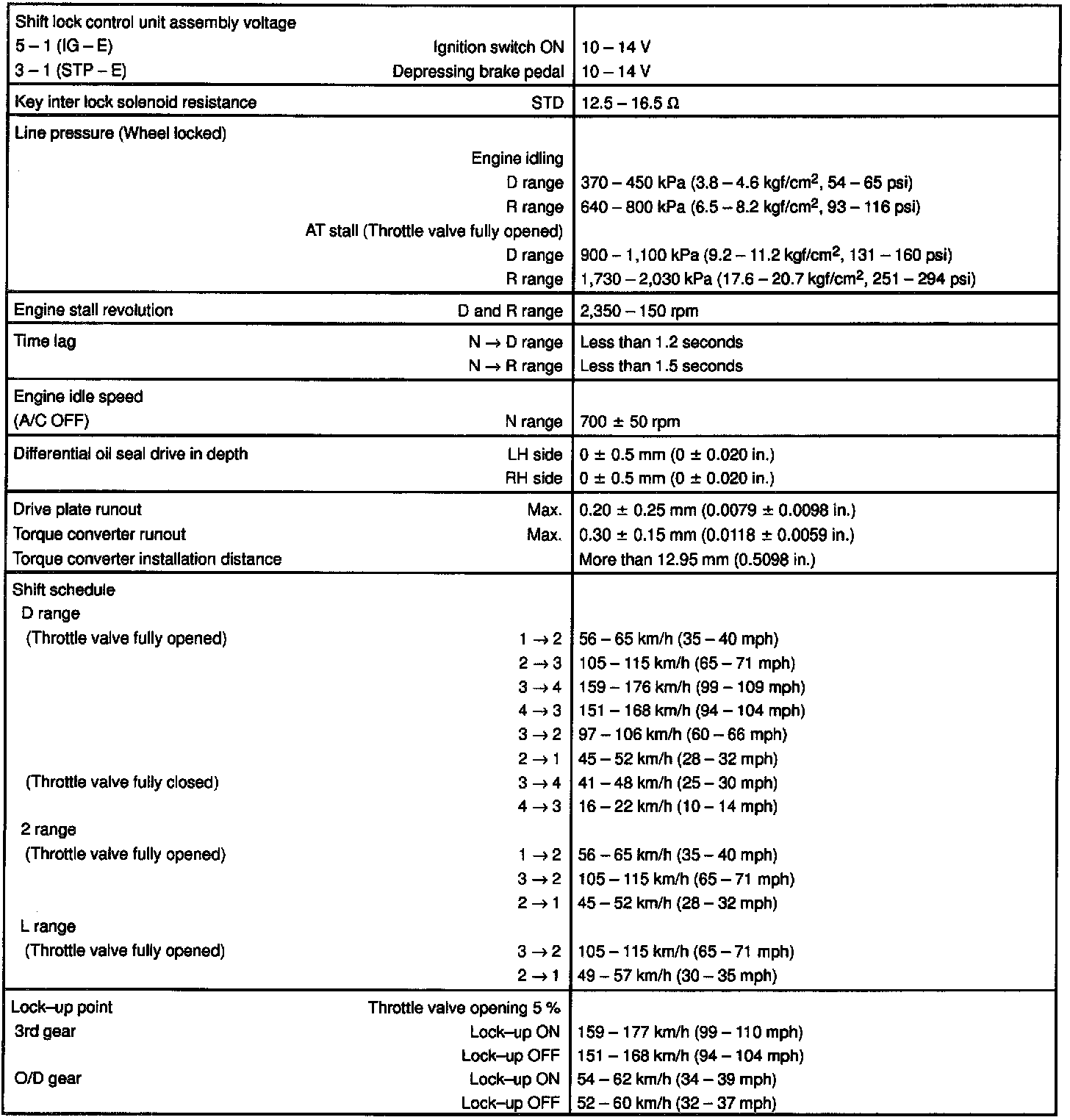

AUTOMATIC TRANSAXLE (U241E) SERVICE DATA:

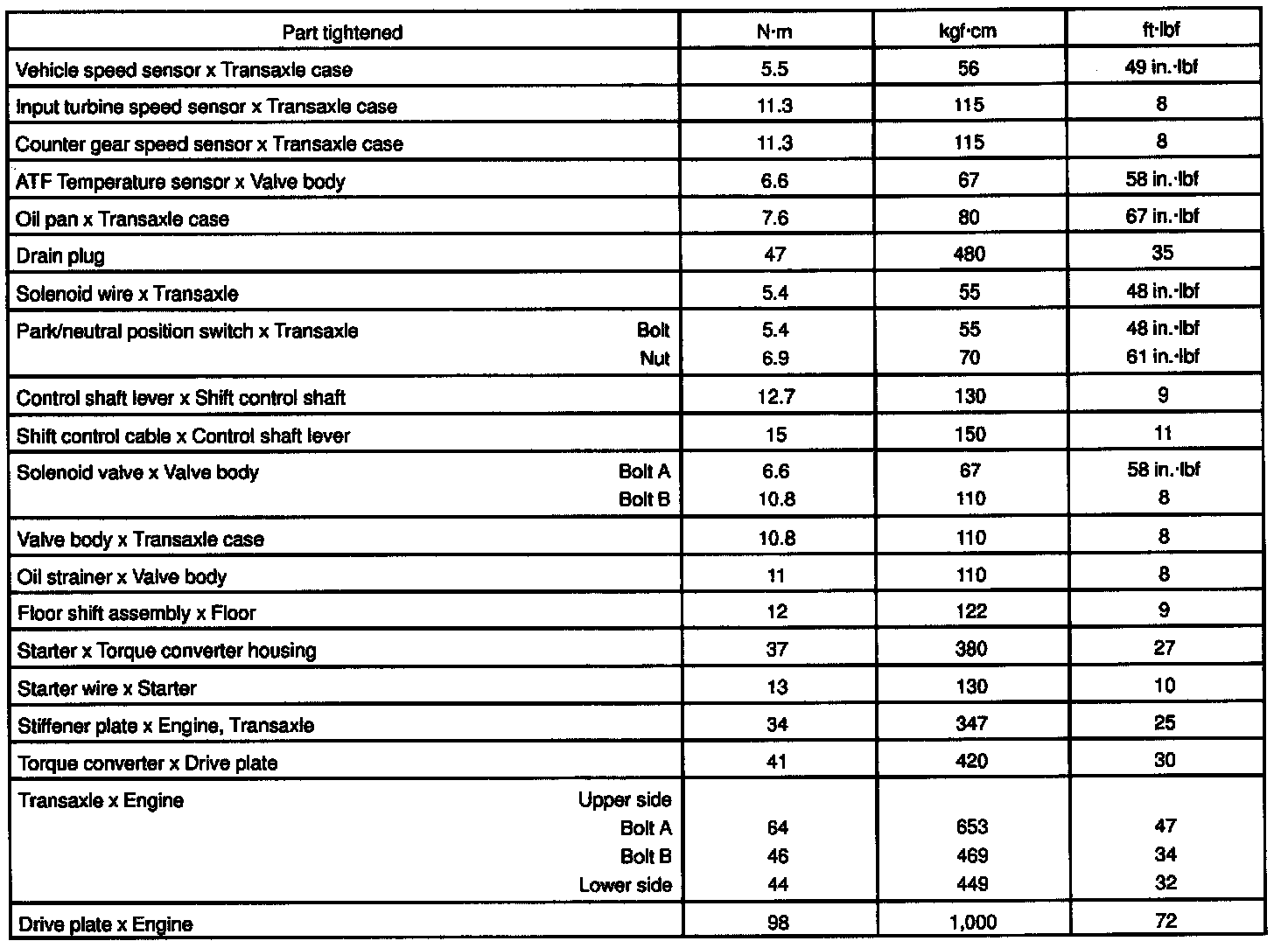

TORQUE SPECIFICATION:





AUTOMATIC TRANSAXLE (U241E)
