Home >> Toyota Truck >> 2003 >> 4 Runner 2WD V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Windshield Washer Control Module

Windshield Washer Control Module

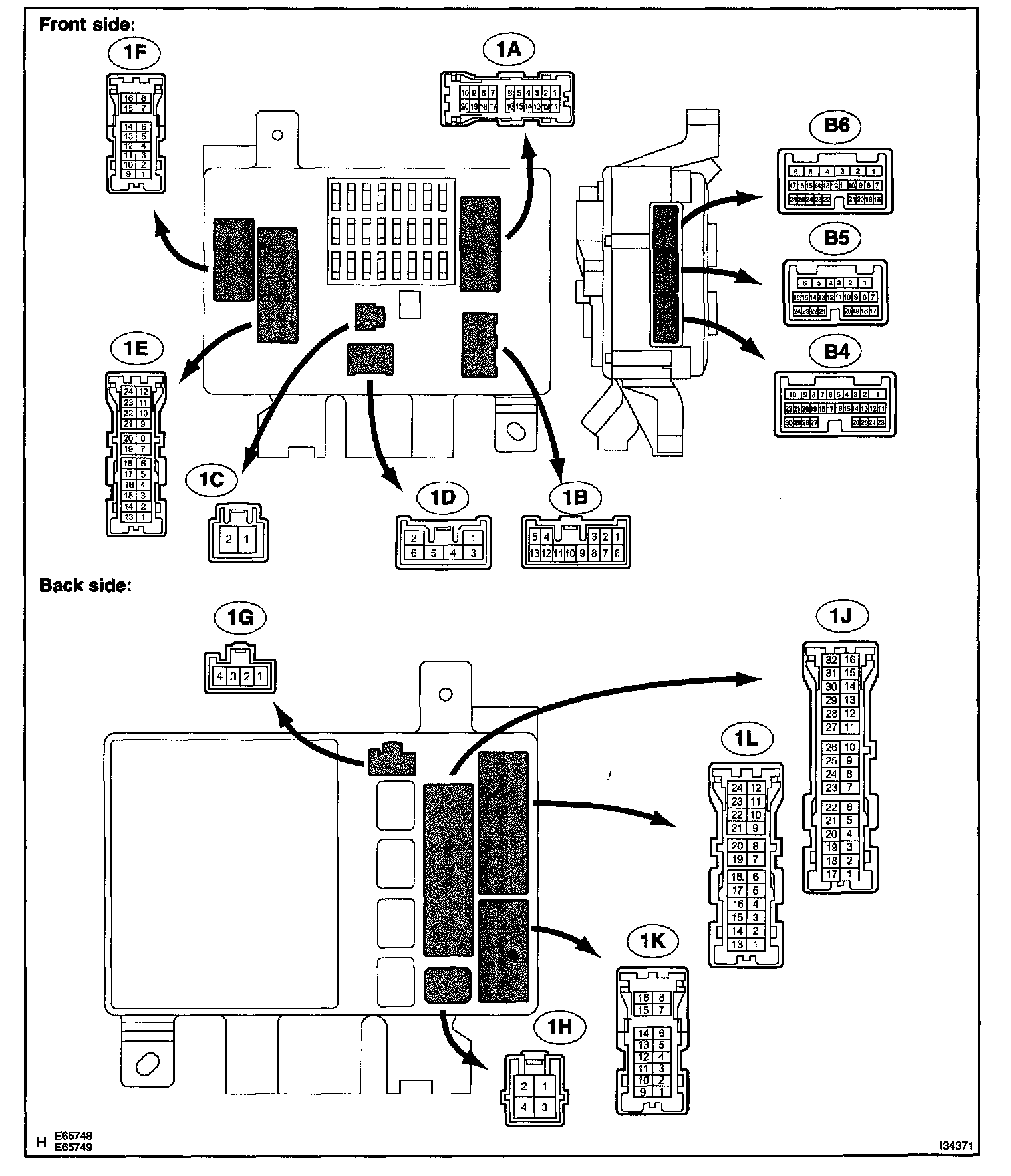

Terminals Of ECU/Pinouts - Multiplex Network Body Computer Part 1 (Wiper and Washer Systems):

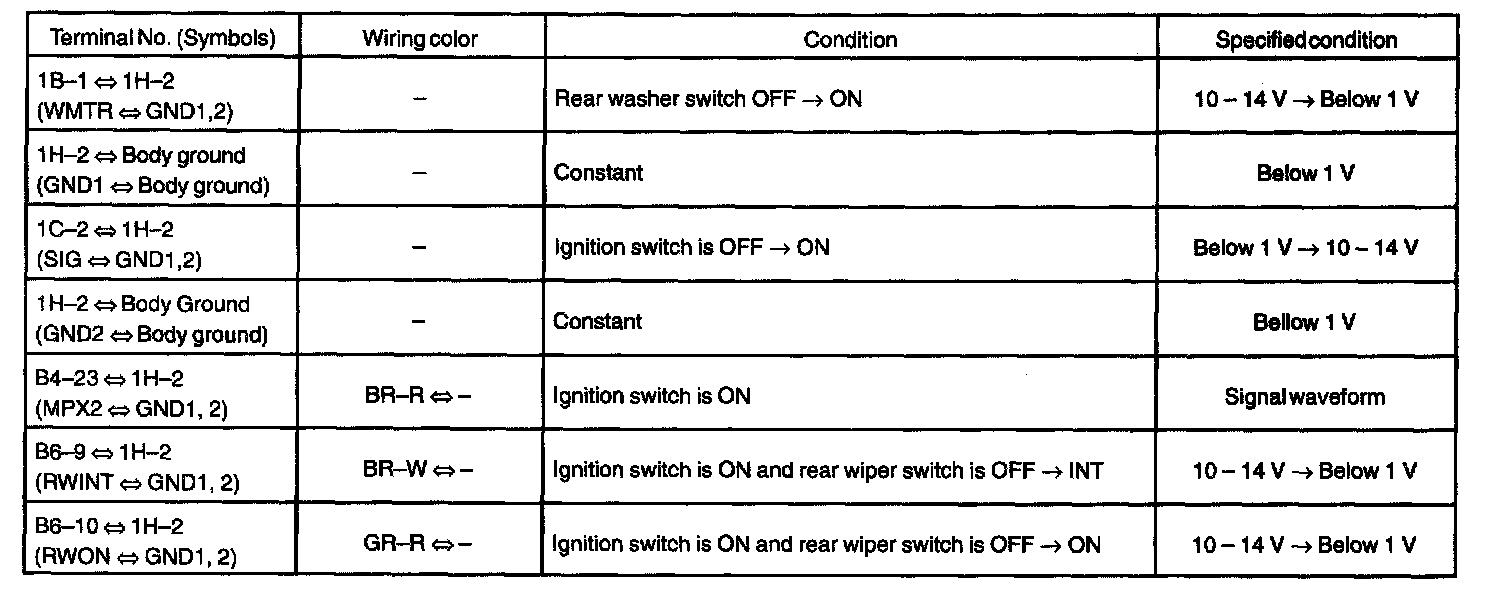

Terminals Of ECU/Pinouts - Multiplex Network Body Computer Part 2 (Wiper and Washer Systems):

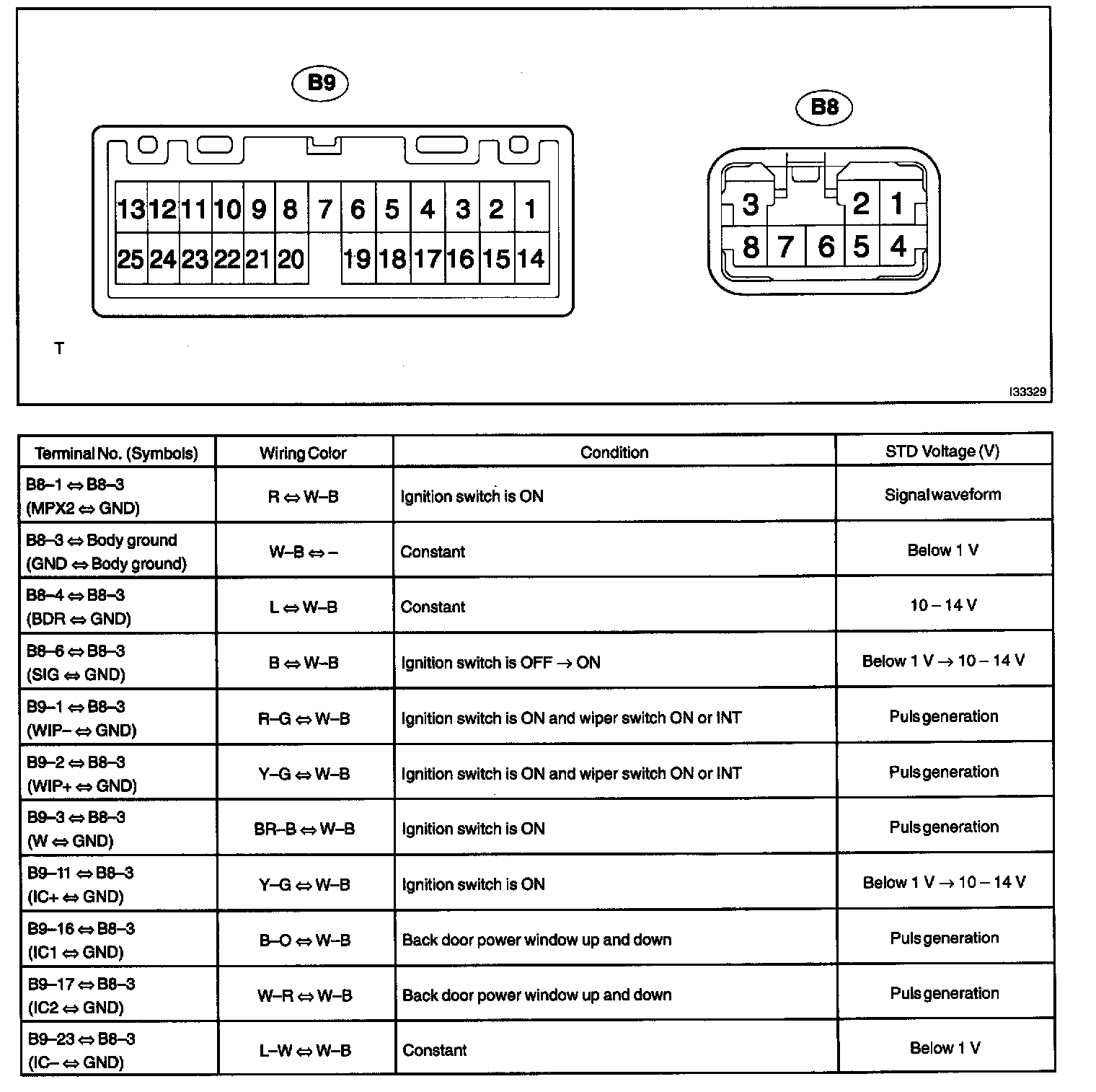

Terminals Of ECU/Pinouts - Multiplex Network Door ECU Back (Wiper and Washer Systems):
