Engine Control Module
Engine Control Module

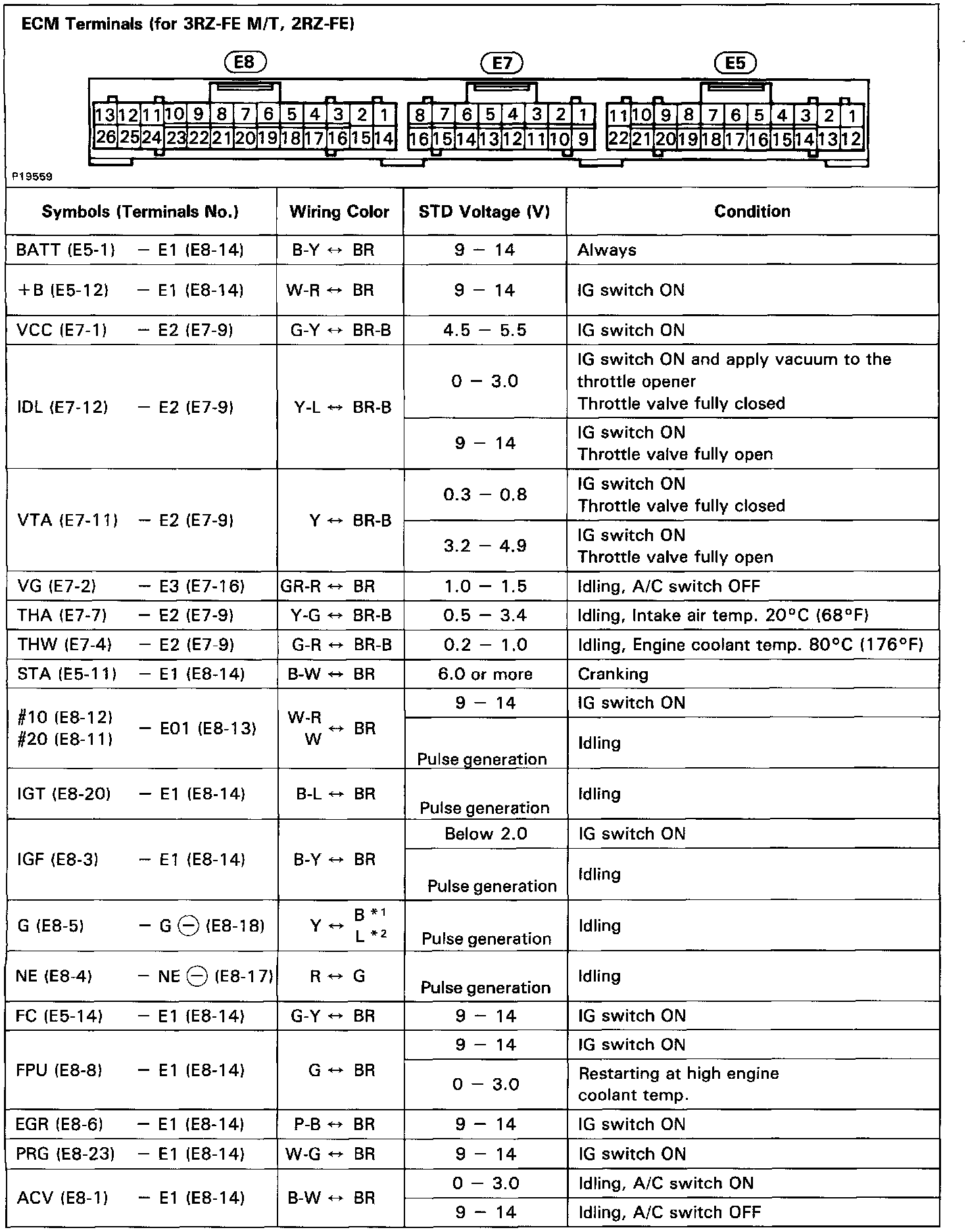

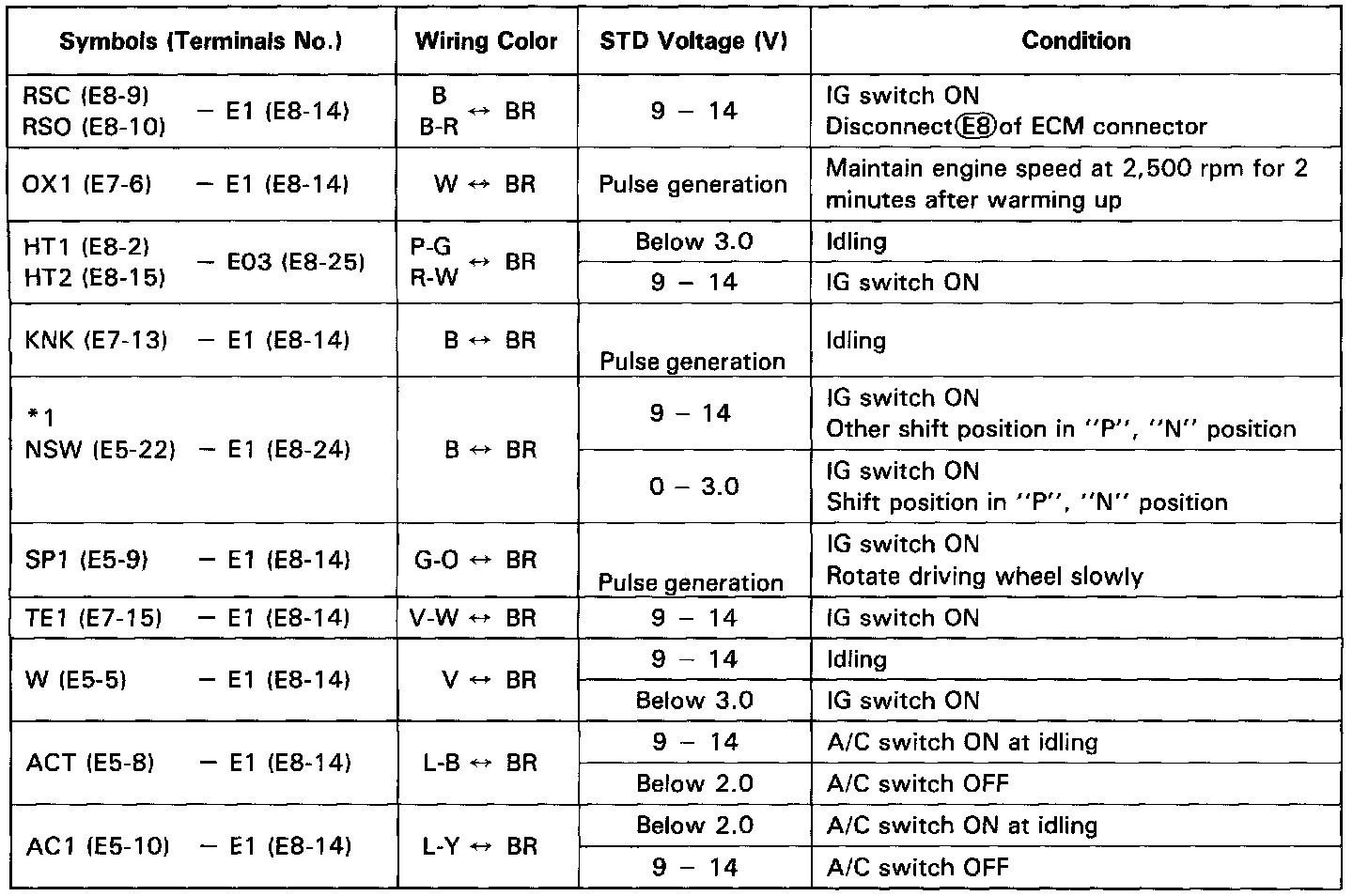

STANDARD VALUE OF ECM TERMINALS
Footnotes:
*1: Automatic Transmission
*2: Manual Transmission
