Steering Control Module: Service and Repair

P/S Control Module Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove instrument panel undercover. Removal and Replacement
3) Remove side sill inner front scuff. Service and Repair
4) Remove dash side trim. Service and Repair
5) Remove center console box. Center Console Box Removal and Installation
6) Turn over floor carpet on passenger's side.

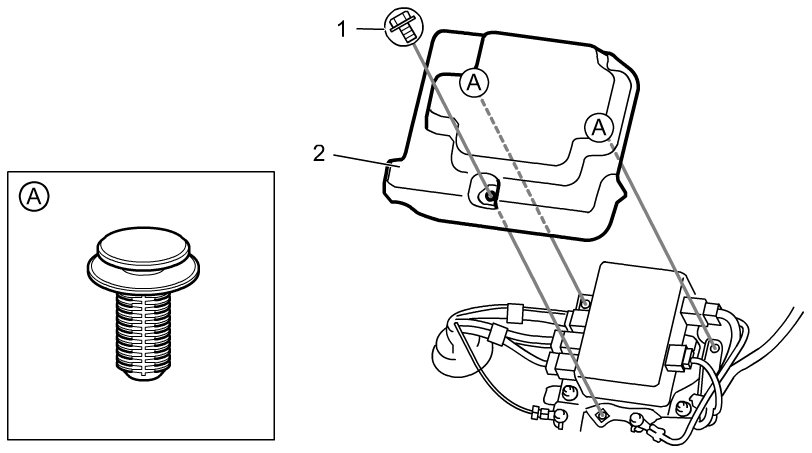

7) Remove bolt (1) and P/S control module cover (2).

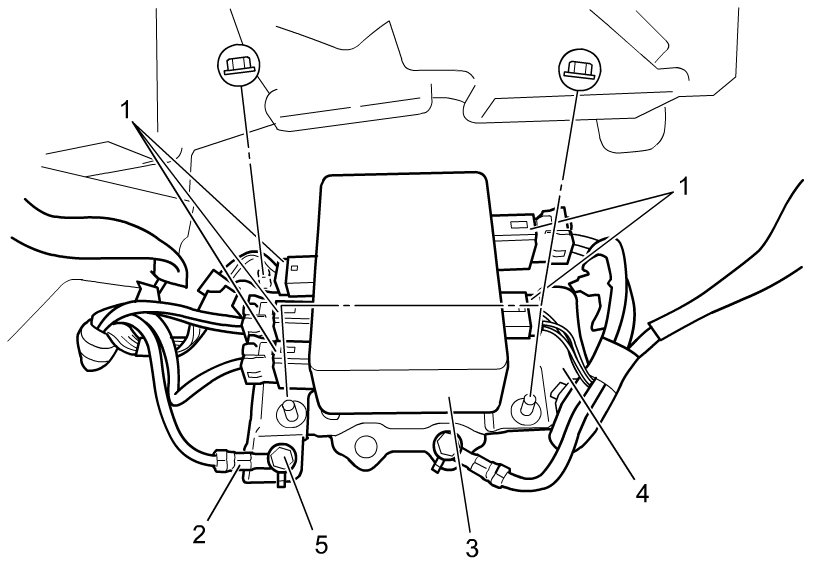

8) Disconnect connectors (1) and ground wire (2) from P/S control module (3).
9) Remove nuts and remove P/S control module with bracket (4) from floor panel.











Installation

Reverse removal procedure, noting the following point.

- Tighten ground bolt to specified torque.

Tightening torque
Ground bolt 5.0 Nm (0.51 kgf-m, 4.0 lbf-ft)
