System Diagram

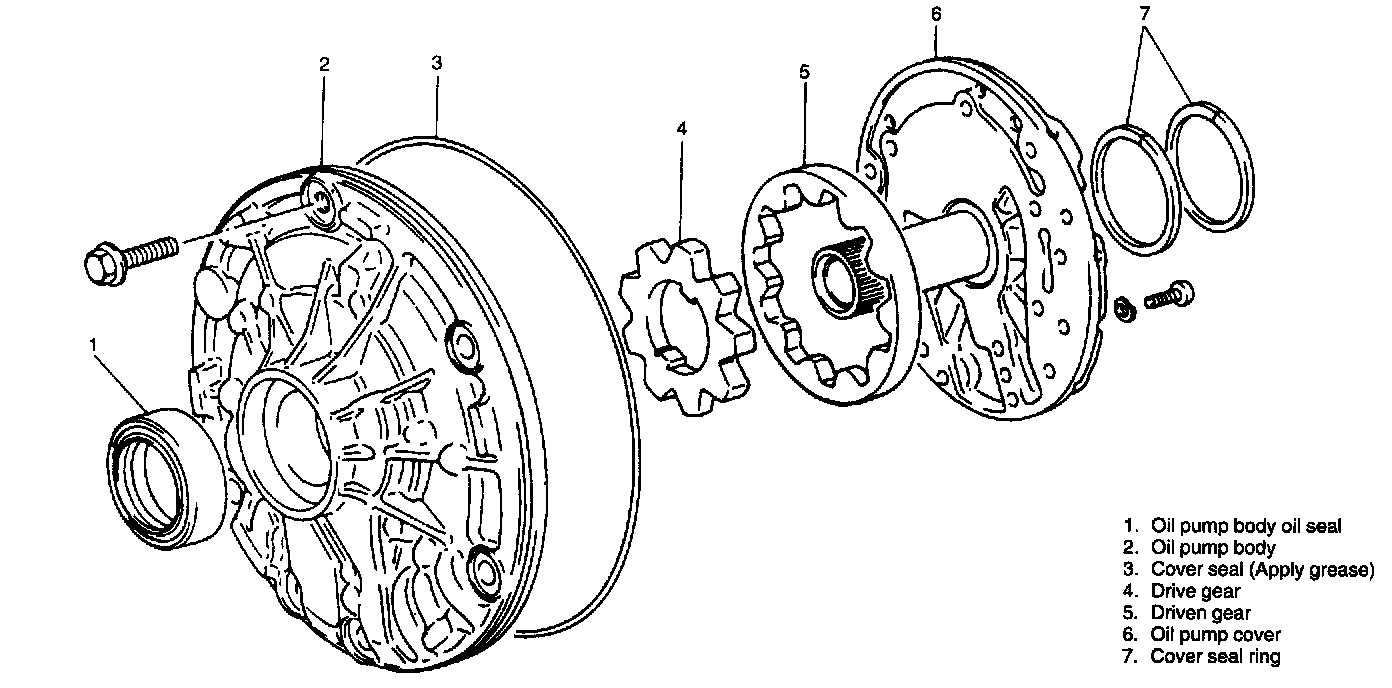

OIL PUMP

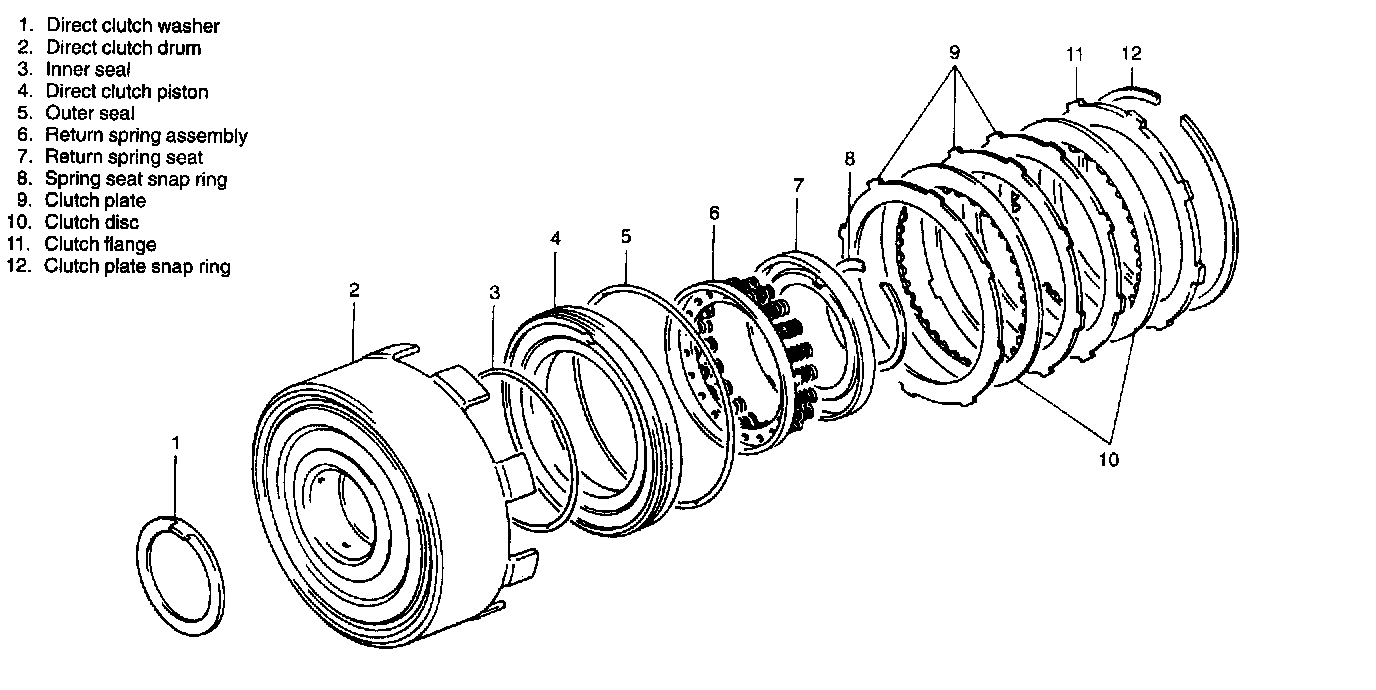

DIRECT CLUTCH

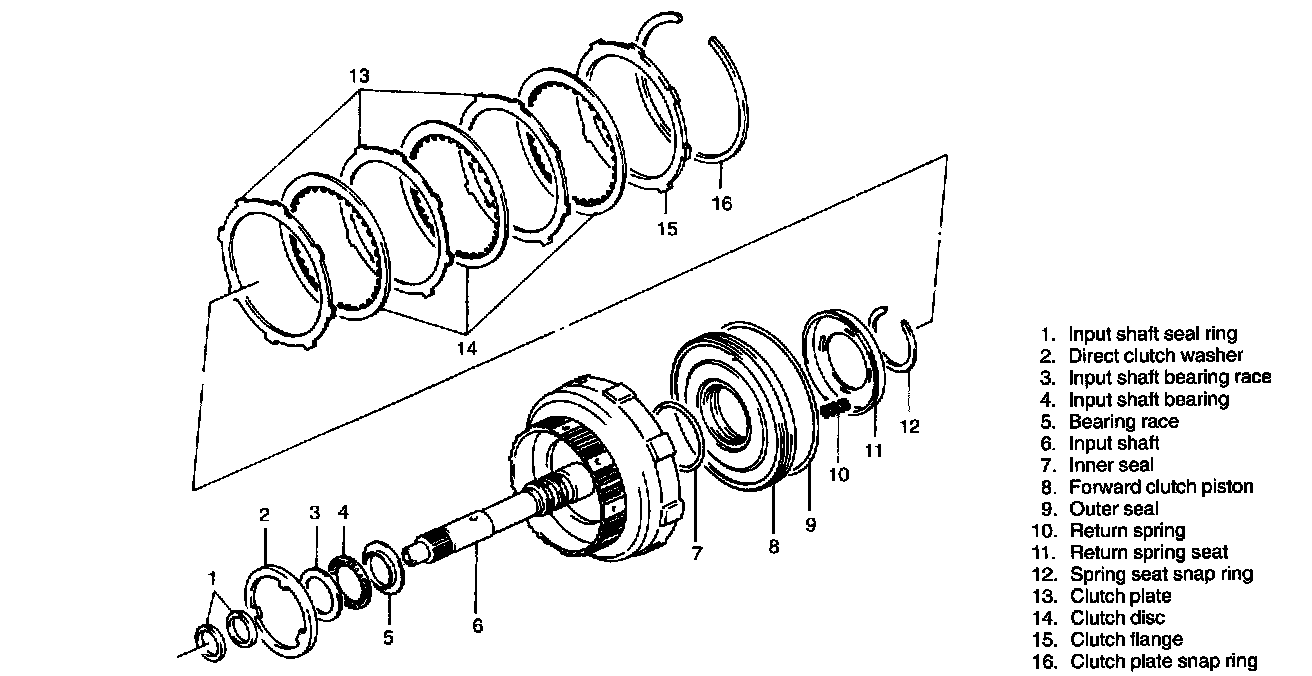

FORWARD CLUTCH

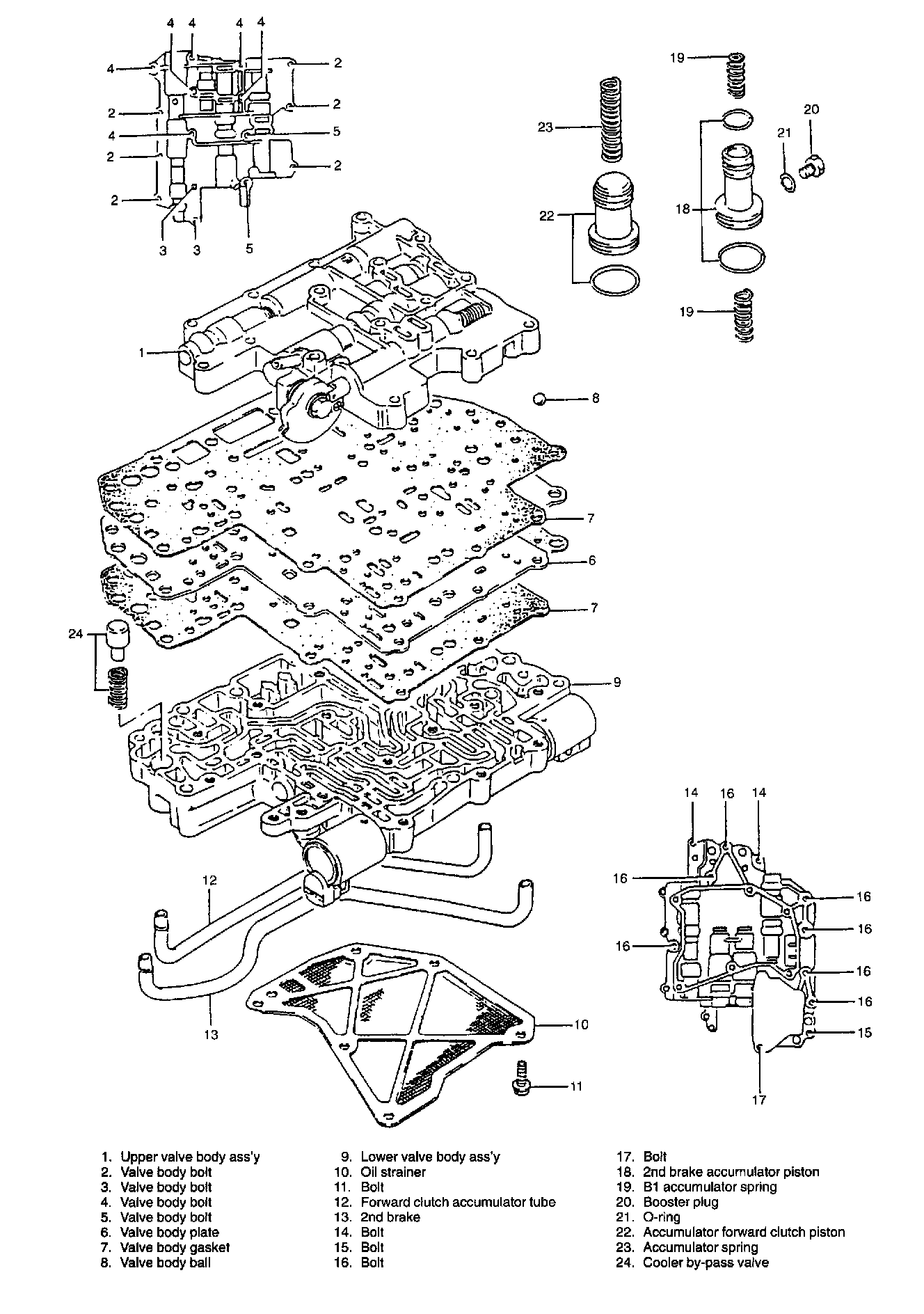

VALVE BODY

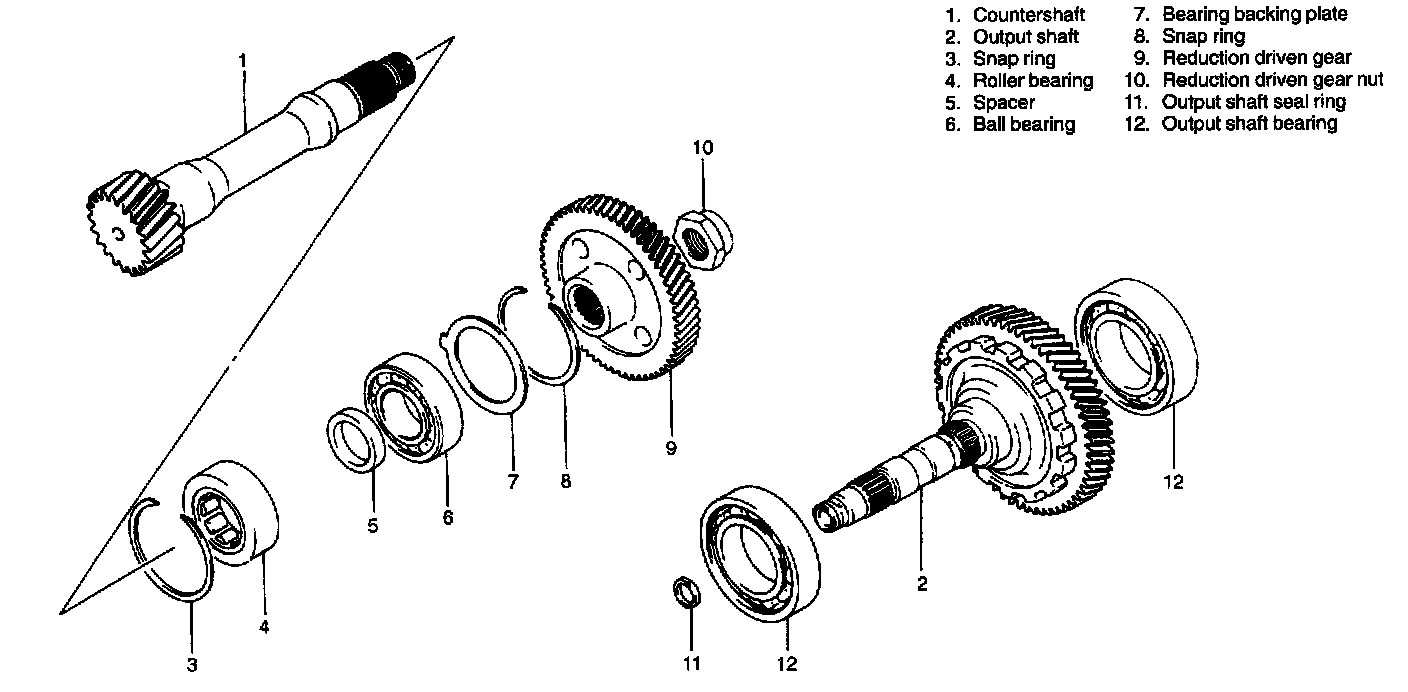

COUNTERSHAFT AND OUTPUT SHAFT

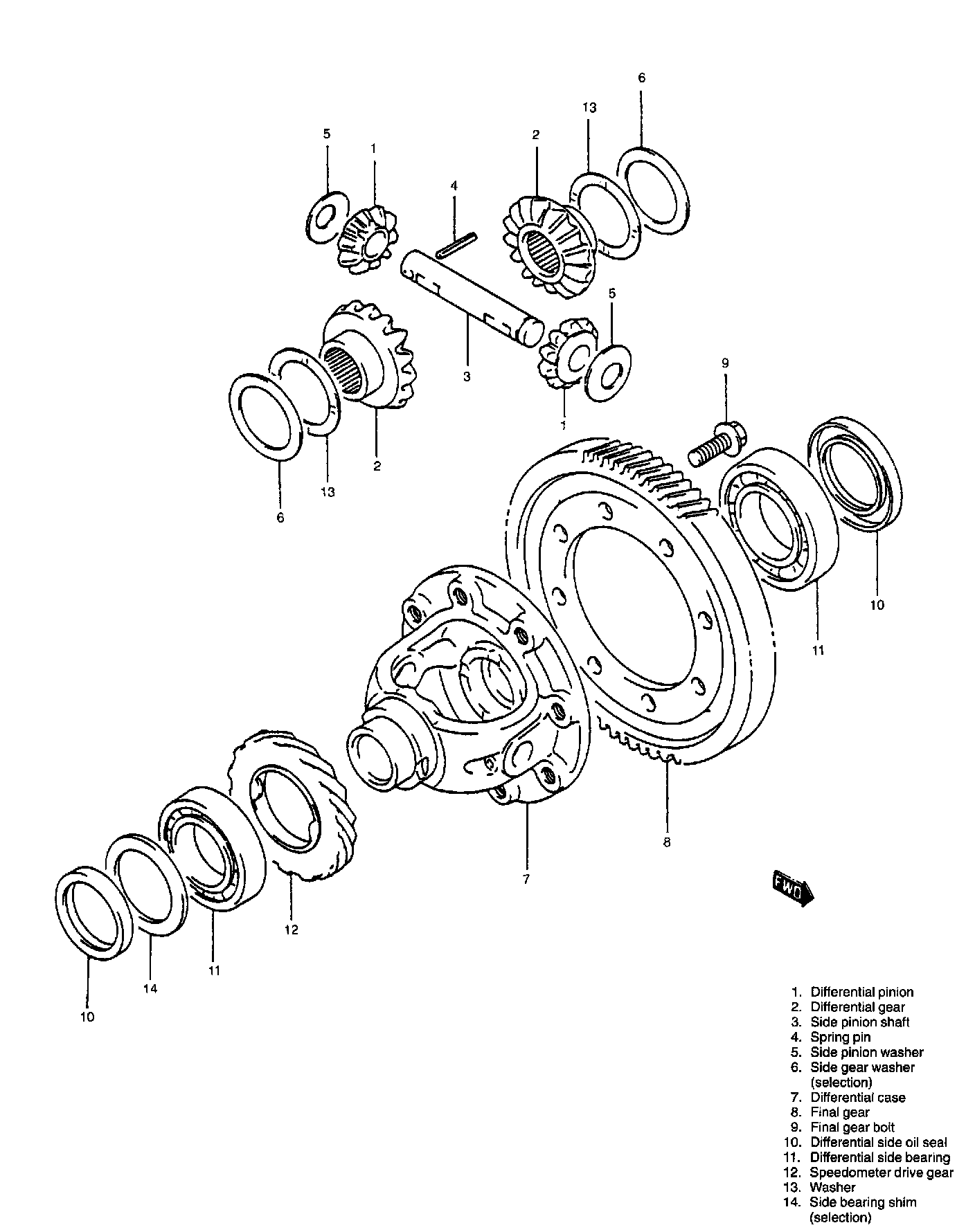

DIFFERENTIAL ASSEMBLY
