Home >> Suzuki >> 1997 >> Swift L4-1298cc 1.3L SOHC MFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Installation Position of Single Unit Parts >> General

General

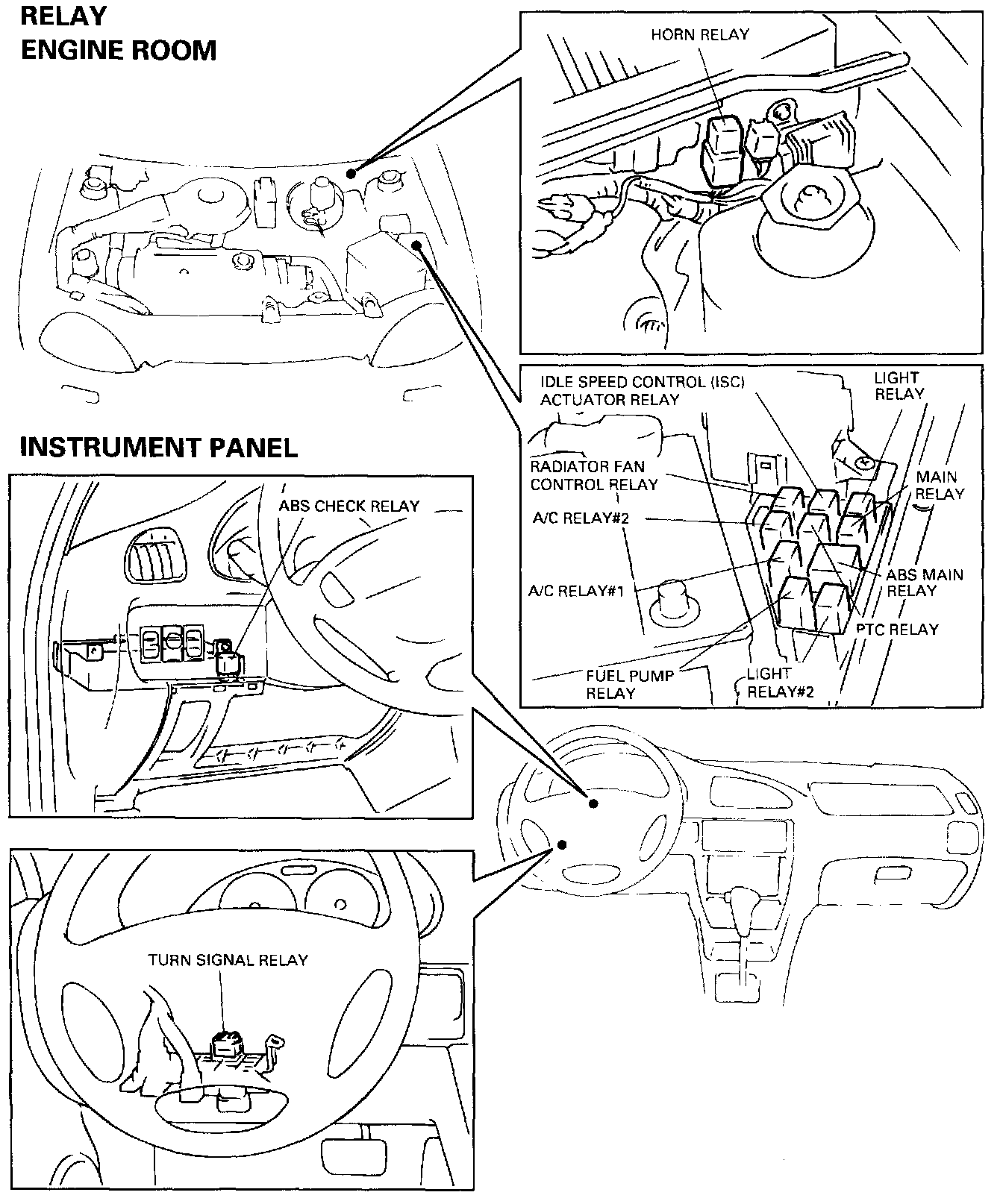

The diagram shows installation positions of fuse, relays and control units used in this vehicle. They are illustrated as shown in the diagram.
